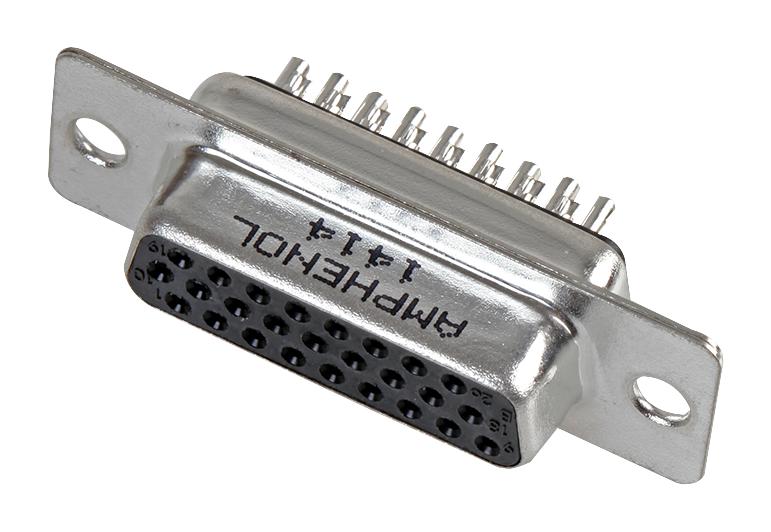

AMPHENOL COMMUNICATIONS SOLUTIONS L77HDC62S D-Sub Connector
The L77HDC62S is a high-quality, durable D-Sub connector series designed for robust solder-cup termination, available in standard and high-density configurations. Crafted with steel shells tin over nickel plating, brass contacts with gold over nickel plating, and glass-filled thermoplastic insulators, these connectors meet UL standards and MIL C24308 specifications. They support reliable electrical connections with a current rating of 5A for standard density and 3A for high density, operating within -55°C to +125°C. Suitable for industrial and telecom applications, they ensure high durability, resistance to salt spray, and easy mating and unmating forces across various contact counts.
AMPHENOL COMMUNICATIONS SOLUTIONS L77HDC62S D-Sub Connector Specifications:
- Shell Material: Steel, tin over nickel plating
- Insulator Material: Glass-filled thermoplastic, UL 94V-0
- Contacts Material: Brass, gold over nickel plating
- Contact Resistance: 20mΩ max
- Current Rating: Standard Density 5A, High Density 3A
- Voltage Rating: 250V AC/rms
- Withstanding Voltage: 1000V AC/rms for one minute
- Operating Temperature Range: -55°C to +125°C
- Salt Spray Resistance: 24 hours
- Mechanical Forces: Single contact insertion force 0.54kg max, withdrawal force SD 0.06kg min, HD 0.02kg min, mating force varies with contact count
- Dimensions: Contact configurations 9, 15, 25, 37, 50, with detailed mm/inch measurements
- RoHS Compliant: Yes
- Mounting Options: Panel mounting with MS or #4-40 screwlock, rear insert options G (M3) or H (#4-40)
- Plating: Gold flash, 0.4μm (15μ"), 0.76μm (30μ") options
- Standards: UL, MIL C24308
- Application: Industrial, telecom, high reliability connections
Buy the Amphenol Series SD: D-Sub Connectors with Solder-Cup Termination: L77HDC62S
Order the Amphenol L77HDC62S high-density D-Sub connector online today to ensure secure, reliable, and efficient electrical connections for industrial and telecom applications. Featuring durable steel shells with tin over nickel plating, gold-plated brass contacts, and UL-rated glass-filled thermoplastic insulators, this connector offers excellent resistance to environmental factors like salt spray and extreme temperatures. Its versatile mounting options, including panel mounting with screwlocks and rear insert configurations, make it suitable for demanding scenarios. Invest in this high-quality connector today and enjoy premium performance and durability.
Buy Amphenol L77HDC62S now and experience unmatched reliability and high performance in industrial and telecom connections.
