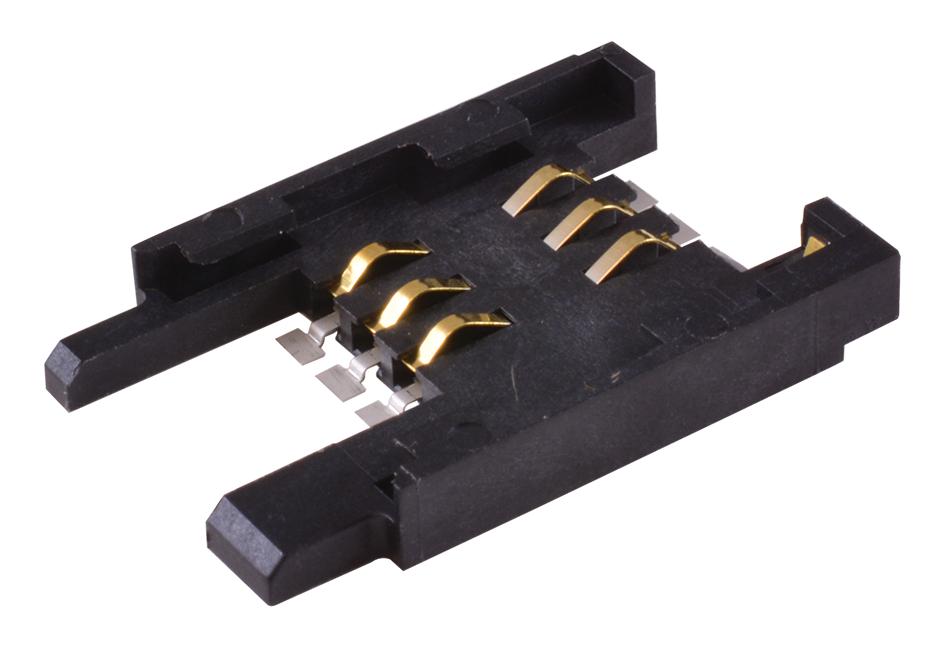

AMPHENOL COMMUNICATIONS SOLUTIONS 7111S1615A02LF SIM Card Connector
This high-quality SIM card connector supports both full size and Micro SIM cards, featuring a low profile of 1.5mm to 2.0mm above PCB. Designed for SMT automation, it ensures reliable GSM terminal connectivity with gold-plated contacts and a high-temperature thermoplastic housing. It offers superior electrical performance with insulation resistance over 1000MQ, withstand voltage above 1000V RMS, and a current capacity of up to 1A. Its durable construction supports 10,000 mating cycles, making it ideal for telecom and mobile device applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 7111S1615A02LF SIM Card Connector Specifications:
- Contact Material: Gold over nickel
- Housing: High temperature thermoplastic UL94V-0
- Insulation Resistance: > 1000MQ
- Withstanding Voltage: > 1000V RMS
- Contact Resistance: < 100mQ
- Current Rating: Min. 10HA, Max. 1A
- Component Height: 1.5mm to 2.0mm above PCB
- Temperature Range: -40°C to +85°C
- Mating Cycles: 10,000
- Contact Force: 0.25N to 0.5N
- Contact Travel: 0.61mm + 0.1mm
- Materials withstand SMT peak temperature: 260°C for 10 seconds
- Environmental Resistance: vibration, shock, thermal shock, packaging standards
- Mechanical Compatibility: ISO 7816-2 standard
Buy the Fci 7111S1615A02LF – Reliable SIM Card Connector for Industrial Applications
Enhance your GSM device connectivity with this reliable SIM card connector designed for SMT automation. Featuring gold-plated contacts, a compact profile, and robust construction to withstand 10,000 mating cycles, it ensures lasting performance. Suitable for mobile phones, terminals, and telecommunication equipment, this connector offers excellent electrical performance with insulation resistance over 1000MQ and withstand voltage above 1000V RMS. Easy to integrate, it supports both full size and Micro SIM cards with a low profile of just 1.5mm to 2.0mm.
Buy Fci 7111S1615A02LF now and experience unmatched reliability and performance in GSM communication interfaces.
