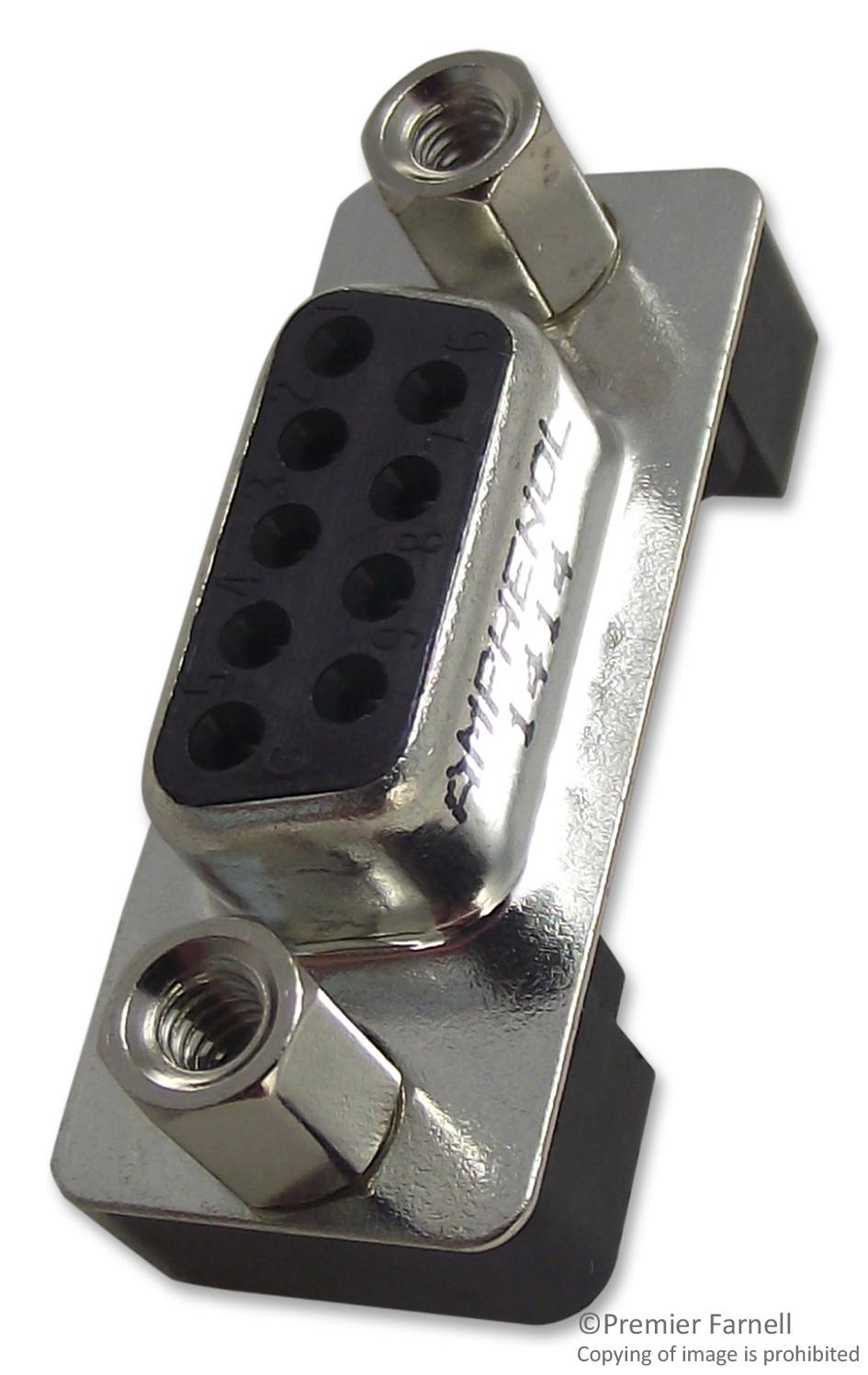

AMPHENOL COMMUNICATIONS SOLUTIONS L77TSEH09SOL2RM8 D-Sub Connector
This D-Sub connector features a glass-filled thermoplastic PBT insulator rated UL94V-0, brass contacts, and steel shell with tin over nickel coating. Designed for reliable electrical connections, it supports a current rating of 1 Amp and voltage of 250 VAC/rms at 60Hz. The connector includes brass boardlocks and screwlocks with nickel plating, ensuring durability and secure assembly. It offers excellent insulation resistance, dielectric withstanding voltage of 1000 VAC/rms for 1 minute, and contact resistance of 20 milliohms Max at 3 Amp DC. Its compact, recommended PCB layout facilitates easy integration into electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS L77TSEH09SOL2RM8 D-Sub Connector Specifications:
- Insulator Material: Glass-filled Thermoplastic PBT, UL94V-0 rated
- Contact Material: Brass
- Shell Material: Steel with Tin over Nickel coating
- Boardlock Material: Brass, Nickel plated
- Screwlock Material: Brass, Nickel plated
- Contact Resistance: 20 milliohms maximum at 3 Amp DC
- Insulation Resistance: 1000 megohms at 500 VDC
- Dielectric Withstanding Voltage: 1000 VAC/rms for 1 minute
- Maximum Current Rating: 1 Amp
- Voltage Rating: 250 VAC/rms at 60Hz
- Dimensions vary according to recommended PCB layout, with detailed positions A, B, C, D, E provided
- Physical Features: Straight PCB termination, metal shell, remote sharp edges prevention
Buy the Amphenol Series D-Sub Connector: L77TSEH09SOL2RM8
Order the Amphenol D-Sub Connector L77TSEH09SOL2RM8 online today to ensure your electronic assemblies have durable, high-quality connections. Designed with a thermoplastic insulator, brass contacts, and a steel shell with tin over nickel finish, this connector supports a 1 Amp current and 250 VAC/rms voltage rating. Its compact layout and robust construction make it ideal for demanding industrial, electronic, and automation applications. Purchase online now to benefit from fast shipping, competitive pricing, and expert support, ensuring your project’s success.
Buy Amphenol L77TSEH09SOL2RM8 connector now and experience unmatched reliability and secure electrical connections in your projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L77TSEH09SOL2RM8?
You can click on the BUY or RFQ button to purchase L77TSEH09SOL2RM8 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L77TSEH09SOL2RM8?
You can download the L77TSEH09SOL2RM8 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L77TSEH09SOL2RM8?
AMPHENOL COMMUNICATIONS SOLUTIONS
