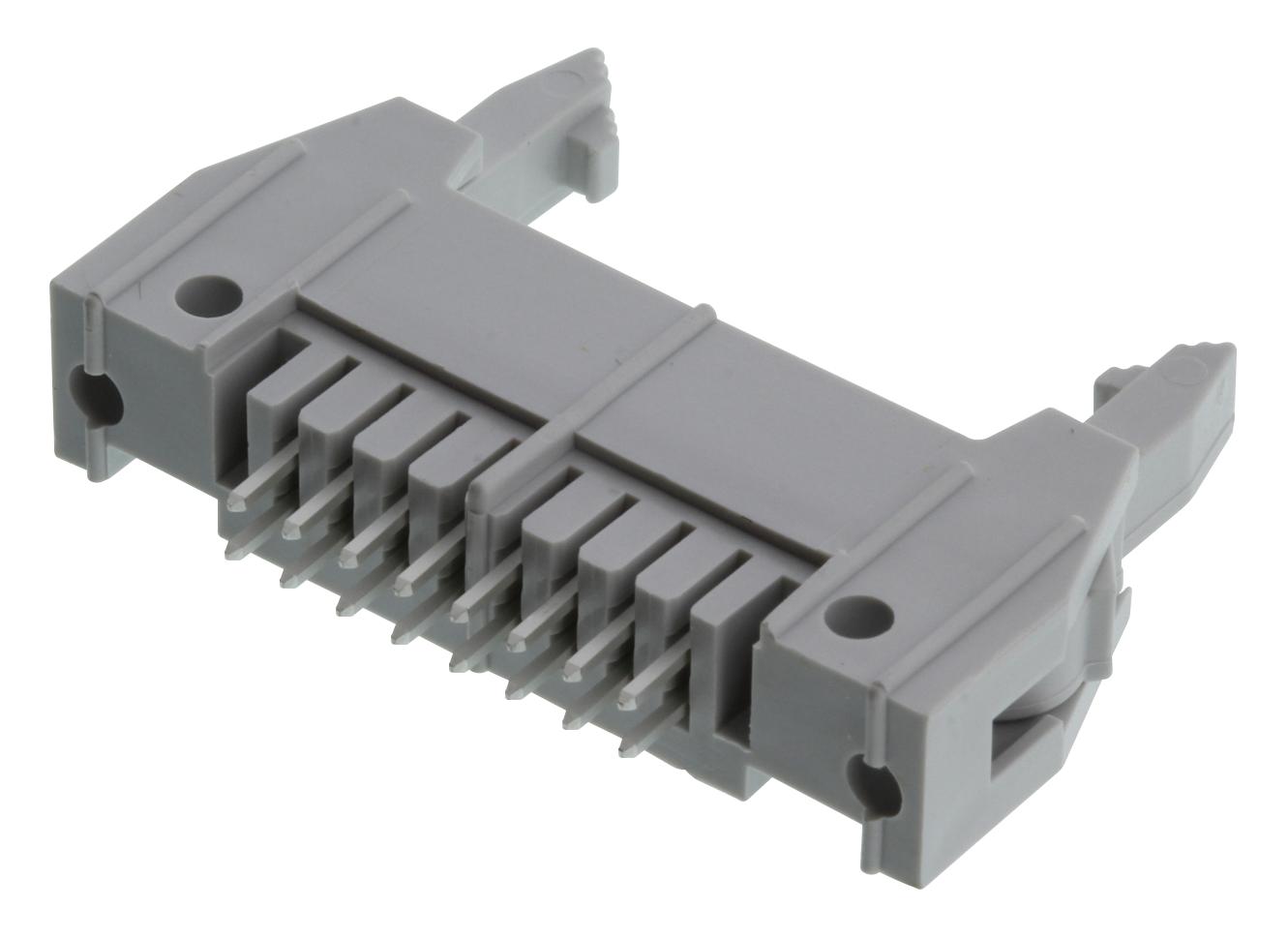

AMPHENOL COMMUNICATIONS SOLUTIONS 71918116LF Wire-to-Board Header
The 71918-116LF is a 16-position, two-row, through-hole, straight wire-to-board header with gold-plated phosphor bronze contacts and a 2.54mm pitch, part of the Quickie series. Its grey glass-filled thermoplastic housing withstands exposure to solder baths up to 260±5°C for 5 seconds, making it suitable for industrial circuit board applications. Designed for boards at least 1.6mm thick, it offers UL94V-0 flammability rating, ensuring safety and reliability in demanding environments. This connector system is ideal for high-performance, durable electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS 71918116LF Wire-to-Board Header Specifications:
- Number of Positions: 16
- Contacts: Gold-plated phosphor bronze
- Pitch: 2.54 mm
- Housing Material: Grey glass-filled thermoplastic
- Flammability Rating: UL94V-0
- Maximum Solder Bath Temperature: 260±5°C for 5 seconds
- Board Thickness Compatibility: At least 1.6 mm
- Type: Straight, through-hole, two-row
- Application: Industrial electronic connectors
- Durability: Designed for high-performance use
- Contact Resistance: Not exceeding 10 milliohms
- Voltage Rating: 250V maximum
- Current Rating: 3A per contact
- UL Approval: Recognized component for safety standards
- Temperature Range: -55°C to +105°C
Buy the Buy FCI 71918-116LF Part Number 71918116LF Online
Purchase the FCI 71918-116LF wire-to-board header online today to ensure reliable electrical connections in your industrial and electronic projects. This high-quality connector features gold-plated contacts for excellent conductivity, a thermoplastic housing rated UL94V-0 for flame resistance, and a 2.54mm pitch designed for durable, high-performance applications. Suitable for circuit boards at least 1.6mm thick, it withstands soldering temperatures up to 260°C and offers long-term reliability, safety, and compliance with international standards. Order now for fast shipping and technical support.
Order your FCI Series71918-116LF 16-Pin Wire-to-Board Header today and enhance your electronic assembly with dependable, high-temperature, industrial-grade performance.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 71918116LF?
You can click on the BUY or RFQ button to purchase 71918116LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 71918116LF?
You can download the 71918116LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 71918116LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
