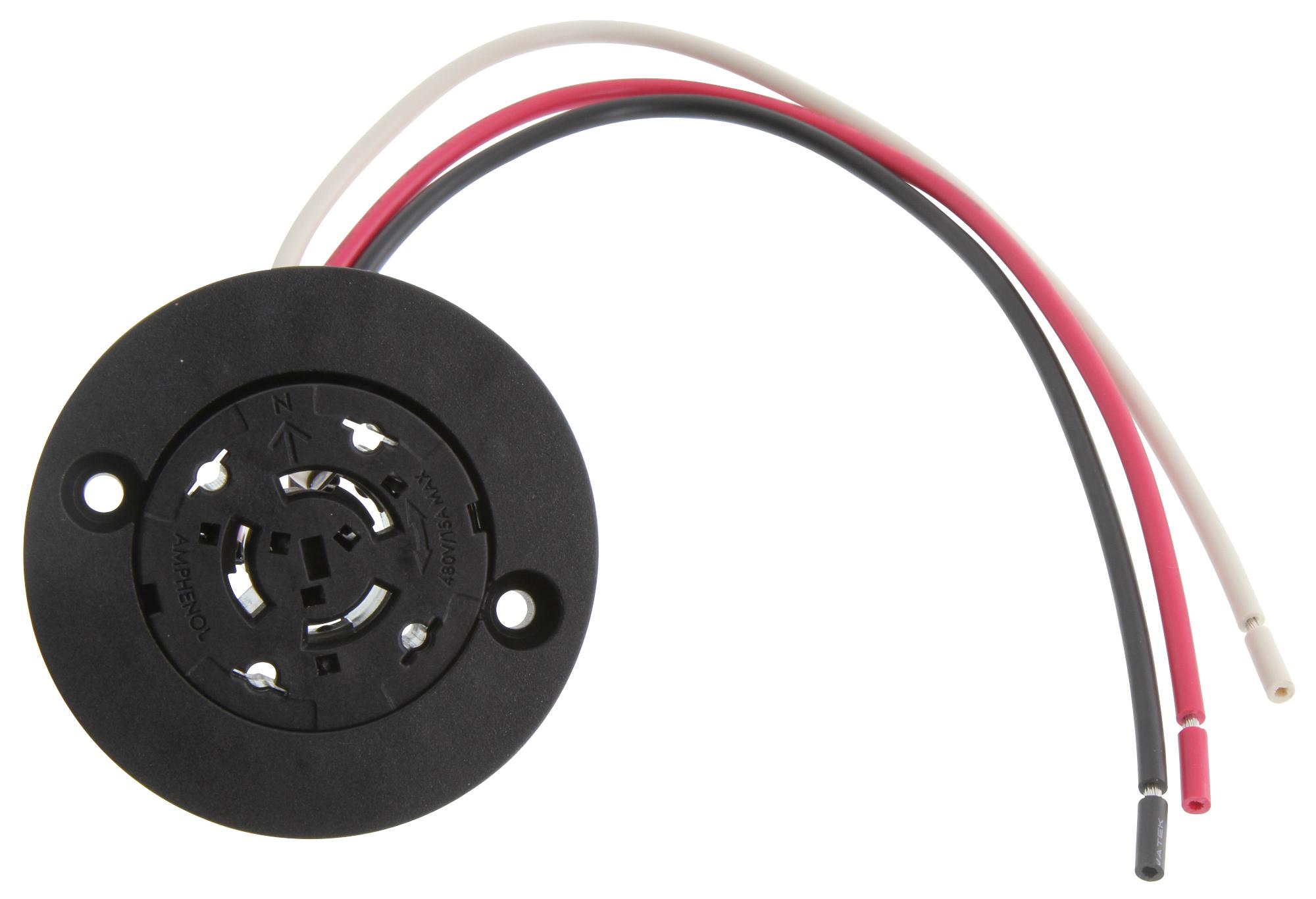

AMPHENOL COMMUNICATIONS SOLUTIONS FLAR014130 Lighting Dimming Receptacle
The FLA series dimming receptacle complies with ANSI C136-41 standards and features locking design for outdoor lighting applications such as roadway and area lighting. It supports 15A max current per circuit, with a voltage rating of 600 VAC / VDC, and includes options for 2 or 4 dimming contacts. Made with high-temperature thermoplastic housing and phosphor bronze contacts with gold over nickel plating, it ensures durability with high insulation resistance and withstands harsh environmental conditions. Suitable for use with external dimmable photocells and LED drivers, it offers reliable performance in outdoor lighting systems.
AMPHENOL COMMUNICATIONS SOLUTIONS FLAR014130 Lighting Dimming Receptacle Specifications:
- Current Rating: 15A max per circuit at 25°C
- Voltage Rating: 600 VAC / VDC
- Dimming Contacts: 2 or 4 options available
- Contact Resistance: 430mΩ max
- Insulation Resistance: 500 MΩ min @ 500 VDC
- Dielectric Withstanding Voltage: 2500 VAC
- Operating Temperature: -40°C to +105°C
- Material: Housing - high-temp thermoplastic, black; contacts - phosphor bronze with gold over nickel
- Mounting Torque: 1 to 2 Nm
- Approvals: RoHS compliant, ANSI C136-41 standard
Buy the Amphenol Series Dimming Receptacle: FLAR014130
Enhance your outdoor lighting systems with the Amphenol lighting dimming receptacle, designed for durability and high performance. Featuring locking ANSI C136-41 compliance, it supports up to 15A current and 600V ratings with options for 2 or 4 dimming contacts. Its high-temperature thermoplastic housing and precision phosphor bronze contacts ensure longevity even in harsh environments. Suitable for roadway and area lighting, this locking receptacle guarantees reliable dimming control with external photocells and LED drivers. Order online today for seamless installation and superior outdoor lighting performance.
Buy Amphenol FLAR014130 now and experience unmatched reliability and performance in outdoor lighting dimming applications.
