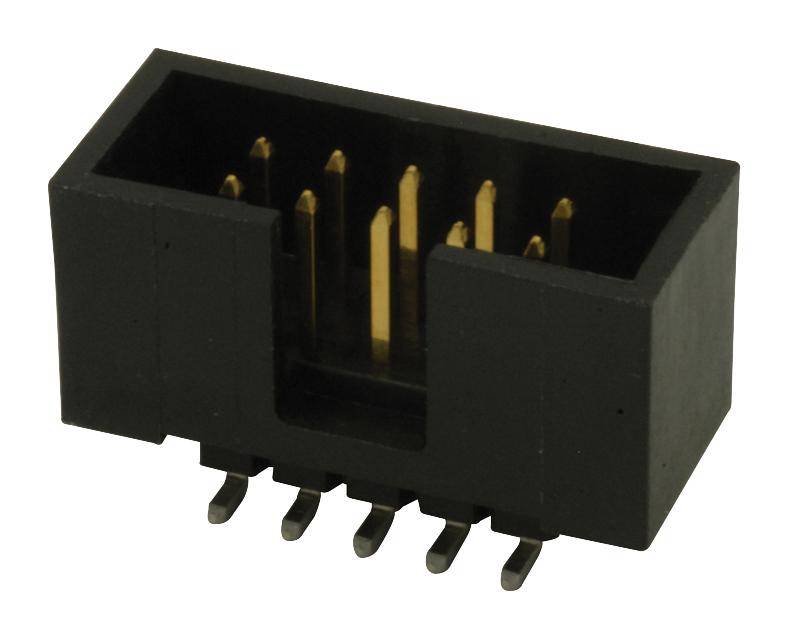

AMPHENOL COMMUNICATIONS SOLUTIONS 72454016LF Quickie Connector System
The Quickie™ Connector System is designed for low power printed wiring board-to-flat cable interconnection with insulation piercing features. It ensures reliable electrical connections through gold or tin plating, molded plastic latches, and full-hard phosphor bronze contacts. The system supports high durability with up to 100 mating cycles, excellent environmental resistance including humidity, thermal shock, vibration, and corrosion testing. The connectors are suitable for applications requiring robust mechanical, electrical, and environmental performance, with optional accessories like strain relief and polarizing features for precise assembly.
AMPHENOL COMMUNICATIONS SOLUTIONS 72454016LF Quickie Connector System Specifications:
- Materials: Full-hard phosphor bronze contacts, polyester plastic components, gold or tin plating
- Contact plating: 0.76um/30u" Au or tin-lead over nickel, with duplex plating options
- Current Rating: 1.0 ampere DC
- Contact Resistance: Not exceeding 10 milliohms initially, 15 milliohms after environmental stress
- Insulation Resistance: Minimum 50,000 megohms in mated condition, tested at 500V DC
- Dielectric Withstanding Voltage: 1,000 volts RMS, 60Hz for 60 seconds
- Temperature Range: -65°C to +105°C, polyester rated UL 94V-0
- Mechanical durability: Up to 100 mating cycles, cable flex resistance of 100 cycles
- Environmental Resistance: Test for humidity, thermal shock, vibration, salt spray, hydrogen sulfide exposure
- Cable Compatibility: Flat flexible cable, AWG #28 stranded or AWG #30 solid conductors
- Assembly: Molded header and self-stripping contact receptacle with optional locking, strain relief, and polarizing features
- Physical Dimensions: Pin length range 4.32 to 6.35 inches, spacing 2.54 mm or 1.27 mm center-to-center
- Compliance: MIL-STD-202, MIL-M-24519, UL-94, and other military and industry standards
Buy the Buy FCI Quickie™ Connector System Part Number 72454016LF Online
Purchase the Quickie Connector System online today to enjoy a high-quality, reliable, and environmentally resistant solution for low power printed wiring applications. Designed with insulation piercing features, durable phosphor bronze contacts, and high environmental stress resistance, this connector ensures lasting electrical performance with up to 100 mating cycles. Its optional accessories, including strain relief and polarizing features, make assembly straightforward and secure. Ideal for PCB-to-flat cable connections in industrial, military, and electronic systems, order now for quick and dependable delivery.
Order your FCI Quickie™ Connector System 72454016LF today and ensure reliable PCB-to-cable connections with high environmental resistance and durability.
