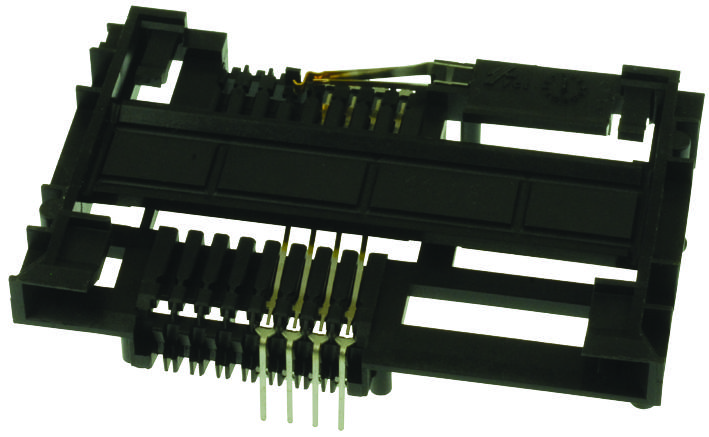

AMPHENOL COMMUNICATIONS SOLUTIONS 7334L2622F13LF PCB Connector
The 7334L2622F13LF is a high-durability PCB connector utilizing sliding contact technology suitable for a wide range of applications. Designed for easy mounting on circuit boards up to 1.6mm thick, it features gold-over-nickel plated contacts and a thermoplastic black housing rated UL94V0. It supports up to 2500 mating cycles, with insulation resistance of 5000 MQ minimum, dielectric withstand voltage of 750 Vrms, and a maximum contact resistance of 100 mΩ. Suitable for industrial and electronic assembly requiring reliable connectivity, it withstands temperatures from -20°C to +105°C and exposure to soldering temperatures up to 260°C for 10 seconds, meeting European and international standards.
AMPHENOL COMMUNICATIONS SOLUTIONS 7334L2622F13LF PCB Connector Specifications:
- Housing: Thermoplastic, Black, UL94V0 rating
- Contacts: Copper Alloy, Gold over Nickel plating
- Solder Tails Plating: Matte Tin over Nickel
- Number of Contacts: 8 or 16 ISO + AFNOR, Card sensor type: Normally closed
- Operating Temperature: -20°C to +105°C, Storage Temperature: -40°C to +85°C
- Maximum Insertion Force: 10 N, Extraction Force: 1 N minimum, Normal Force: 0.6 N max
- Physical dimensions: Compatible with 1.6mm thick PCB, Soldering temperature: up to 260°C for 10 seconds
- Insulation Resistance: 5000 MQ min, Dielectric Withstanding Voltage: 750 Vrms min
- Number of Mating Cycles: 2500, Contact Resistance: » 100 mΩ max
- Supports wave soldering with appropriate protective measures, and complies with European directives and GS-22-008 standards
Buy the Fci Series 7334L2622F13LF:
Enhance your electronic assemblies with the dependable PCB connector featuring sliding contact technology, gold-plated contacts, supporting up to 2500 mating cycles. Designed for PCB thickness up to 1.6mm, it offers extensive durability, excellent insulation resistance, and withstands high soldering temperatures. Ideal for industrial, automation, and electronic projects, this connector ensures long-lasting performance and compliance with international standards. Buy online now for fast delivery and secure, reliable connections in your electronic applications.
Order your Fci Series 7334L2622F13LF connector today and ensure reliable, high-performance circuit connections for your electronic projects.
