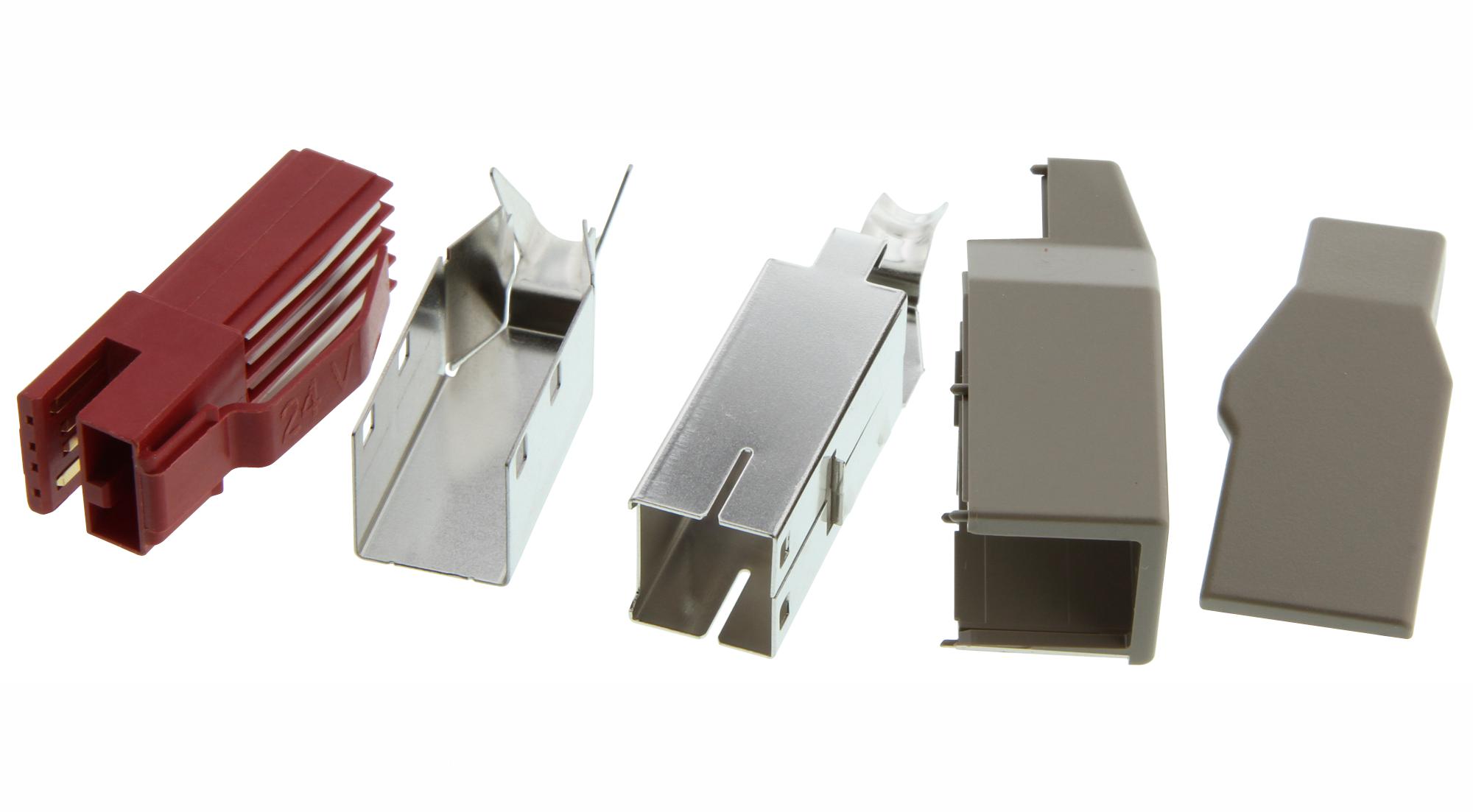

AMPHENOL COMMUNICATIONS SOLUTIONS 74233202LF USB Power Connector
The USB+Power interconnect system by FCI enhances standard USB 2.0 connections by including four additional contacts for power delivery, rated at 5A per contact. Designed to deliver extra power at 12V or 24V, it simplifies device setup by reducing external power needs and eliminates the need for separate power supplies for peripherals. Fully shielded for optimal data performance, it features positive latching for secure mating, keying, and color coding for voltage identification. Suitable for data, consumer electronics, telecom, POS, hubs, and audio systems, it supports hot plugging and meets USB 2.0 standards.
AMPHENOL COMMUNICATIONS SOLUTIONS 74233202LF USB Power Connector Specifications:
- Receptacle Contact Resistance: 30mΩ max.
- Housing Material: High-temperature thermoplastic UL94V-0 rated
- Contacts: Copper alloy, 1.5A/contact min.
- Shell Material: Copper alloy
- Cable Jacket: PVC, meets USB 2.0 standard
- Data Conductors: 28 AWG twisted pair
- Power Conductors: Non-twisted pair
- Shield: Aluminized foil with 65% coverage, tinned
- Signal Impedance: 900 +/- 15%
- Durability: 1,500 cycles
- Operating Voltage: 12V, 24V DC
- Withstanding Voltage: 750V AC min.
- Agency Approvals: UL, CSA
Buy the FCI Series USB+Power: 74233202LF
Purchase the FCI USB Power Connector online today for seamless power delivery and data transfer. This durable connector is ideal for consumer electronics, telecom, and POS systems, supporting USB 2.0 compliance with a maximum of 1.5A per data contact and 5A per power contact. Features include a high-temperature thermoplastic housing, copper alloy contacts, shielded design, and locking mechanism for secure connection. Compatible with 12V and 24V applications, it simplifies wiring and reduces external power sources, making it a versatile and essential component for electronic projects.
Order your FCI Series USB+Power 74233202LF today and enjoy reliable power and data connectivity in your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 74233202LF?
You can click on the BUY or RFQ button to purchase 74233202LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 74233202LF?
You can download the 74233202LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 74233202LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
