AMPHENOL COMMUNICATIONS SOLUTIONS 87606405LF Vertical Receptacle
The product is a low-profile vertical receptacle designed for reliable electrical connections in board-to-wire and wire-to-board applications. Featuring a pre-stressed, dual-beam contact design, it ensures low insertion force and excellent signal integrity. Made from high-temperature, glass-filled thermoplastic polyester with UL94V-0 flammability rating, it supports currents up to 3A DC per contact and withstands environmental conditions from -65°C to +125°C. It offers robust mechanical durability with 200 mating cycles, and its contact resistance remains low after environmental testing, ensuring dependable performance in sensitive electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606405LF Vertical Receptacle Specifications:
- Housing: Glass-filled thermoplastic polyester, UL94V-0 flammability rating
- Pin material: Phosphor-bronze
- Plating: Gold or tin over 1.27μm nickel
- Current rating: 3A DC max. per contact
- Insulation resistance: 1x 10^6 MΩ min.
- Contact resistance: 15 MΩ max. initial, 20 MΩ max. after environmental tests
- Dielectric withstanding voltage: 1000V RMS
- Operating temperature: -65°C to +125°C
- Mating cycles: 200
- Insertion force: 1.50 N (gold), 1.60 N (tin)
- Withdrawal force: 0.30 N (gold), 0.35 N (tin)
- Insertion depth: 3.6mm to 6.7mm for top entry, 6mm for bottom entry
- Environmental compliance: ROHS
- Packaging: Plastic boxes, tubes, or tape-and-reel
- Certifications: UL94V-0 rated

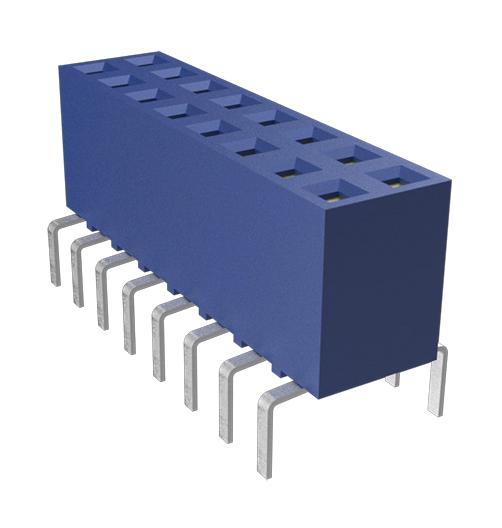

Buy the Reliability Series Vertical Receptacle: BUS-12-055LF
Experience dependable and high-performance electrical connections with the Dubox vertical receptacle BUS-12-055LF. Featuring dual-beam contacts, a durable thermoplastic housing, and a wide operating temperature range, this low-profile connector simplifies assembly while providing excellent signal integrity and environmental resistance. Suitable for board-to-wire applications, it supports up to 3A current per contact, withstands 200 mating cycles, and complies with ROHS standards. Order your Dubox vertical receptacle today online to enhance your electronic assembly's reliability and efficiency.
Order your reliable Dubox vertical receptacle BUS-12-055LF today and ensure robust connections in your electronic projects with quality assurance.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606405LF?
You can click on the BUY or RFQ button to purchase 87606405LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606405LF?
You can download the 87606405LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606405LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
