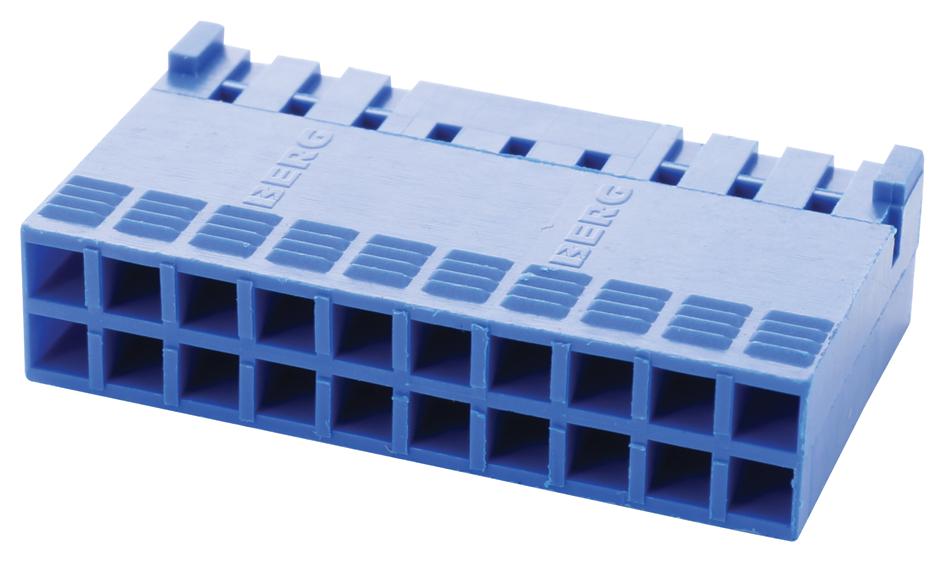

AMPHENOL COMMUNICATIONS SOLUTIONS 65239010LF Wire-to-Board Connector
The AMPHENOL PV[®] wire-to-board connector system provides a robust solution for connecting wires to printed circuit boards. Its innovative design incorporates dual-metal receptacle terminals that plug into industry-standard posts, ensuring a secure and reliable connection. The system's features, including keyed housings, shrouded headers, and various spring pressures, cater to a wide range of industrial applications, from instrumentation and medical devices to automotive electronics and data communications. The connector's construction utilizes materials like brass, beryllium copper, and modified polyphenylene oxide, ensuring durability and performance. It is RoHS compliant and supports various configurations and plating options to meet specific application requirements.
AMPHENOL COMMUNICATIONS SOLUTIONS 65239010LF Wire-to-Board Connector Specifications:
- Contact material: Brass body and beryllium copper spring
- Housing material: Modified polyphenylene oxide UL94V-0
- Contact plating: Gold or lead-free pure tin over nickel
- Product specification: BUS-12-067, BUS-12-075
- Current rating single circuit: 3.0A with 32 AWG wire
- Withstanding voltage: 1000V RMS
- Insulation resistance wire connector: >10000MΩ
- Insulation resistance PCB header: >5000MΩ
- Contact resistance wire connector: <2mΩ
- Maximum wire diameter: 1.52mm
