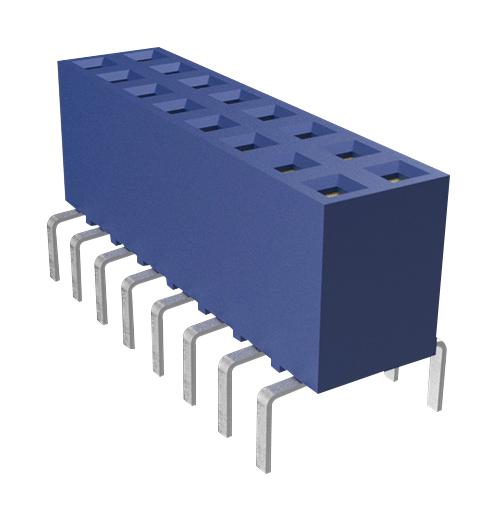

AMPHENOL COMMUNICATIONS SOLUTIONS 76342305LF Dubox Shunts
AMPHENOL's Dubox Shunts are robust board-to-board connectors designed for reliable electrical connections. These connectors feature dual-beam contacts, enhancing reliability and providing a slotted cutout to simplify electrical testing. Their stackable design allows for both side-by-side and end-to-end configurations, making them suitable for a wide range of industrial applications. Constructed with high-temperature thermoplastic housing and phosphor-bronze pins with gold or tin plating, these shunts offer excellent performance and durability.
AMPHENOL COMMUNICATIONS SOLUTIONS 76342305LF Dubox Shunts Specifications:
- Housing: High temperature, black thermoplastic
- Flammability rating: UL94V-0
- Pin: Phosphor-bronze
- Plating: Gold or tin over 1.27μm (50μin.) nickel
- File no.: E66906
- File no. LR46923: LR46923
- Product drawing: By 5-digit base part number
- Product specification: BUS-12-071-gold BUS-12-070-tin
- Current rating: 2.5A max. per contact
- Insulation resistance: 50,000MΩ min
- Contact resistance: 15MΩ max. initial, 20MΩ max. after environmental tests
- Dielectric withstanding voltage: 800V
- Operating temperature range: -65°C to +125°C
- Mating cycles (durability) - Gold: 50
- Mating cycles (durability) - Tin: 25
- Insertion force (gold contact): 450gf max.
- Insertion force (tin-lead contact): 500gf max.
- Withdrawal force (gold contact): 30gf min.
- Withdrawal force (tin-lead contact): 30gf min.
- Insertion depth: 4.85 mm (.191in.) min.
- Wipe: 3.81 mm (.015in.)
