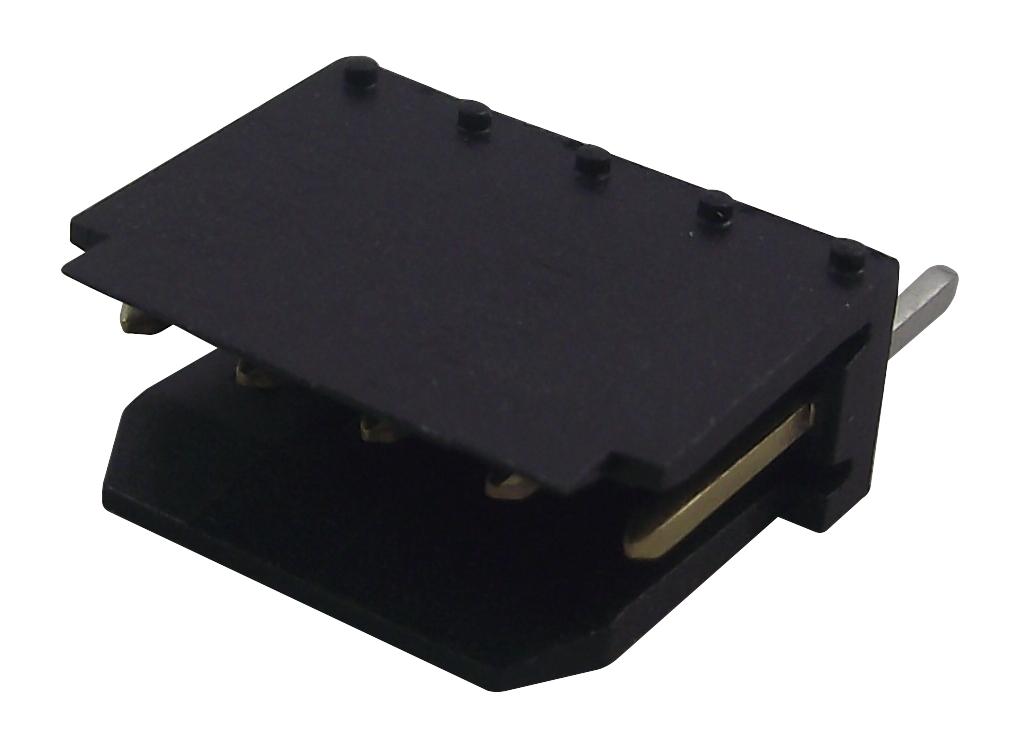

AMPHENOL COMMUNICATIONS SOLUTIONS 76384305LF Wire-to-Board Connector
The PV wire-to-board connector system features a robust crimp-to-wire design that ensures high reliability, durability, and retention through 1000 mating cycles. Suitable for various applications including instrumentation, medical, industrial equipment, automotive electronics, and data communications, it offers options for single and double rows with polarized MINI-LATCH housings to prevent mis-mating. The connectors include high-quality brass and beryllium copper contacts with gold or pure tin plating. They support wire diameters up to 1.52mm, withstand voltage of 1000V RMS, and temperatures from -40°C to +105°C, ensuring dependable performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 76384305LF Wire-to-Board Connector Specifications:
- Material: Brass body, beryllium copper spring, phosphor bronze headers, modified polyphenylene housings
- Plating: Gold or pure tin over nickel for contacts, RoHS-compliant parts available
- Electrical: Current rating 3.0A, withstand voltage 1000V RMS, insulation resistance >10000MQ (wire), >5000MQ (header), contact resistance <2mQ
- Mechanical: Durability 1000 cycles, mating force 450g (high spring), 100g (ultra-high spring), un-mating force 75g (high spring), 175g (ultra-high spring)
- Temperature Range: -40°C to +105°C
- Wire Diameter: Max 1.52mm, compatible with wires AWG 22-32
- Connectors include single and double row configurations, polarized, support for quick tooling, and crimping tools
- Certifications: URE66906, CSALR46923
Buy the Buy FCI PV Wire-to-Board Connector Part Number 76384305LF Online
Secure your electronic projects today by ordering the FCI PV wire-to-board connector 76384305LF online. Designed for high reliability, these connectors support up to 1.52mm wire diameter, with polarized housings that prevent mis-mating. Ideal for industrial, medical, automotive, and data communication applications, they feature durable brass and beryllium copper contacts with gold or tin plating for dependable, long-lasting connections. Supporting a temperature range from -40°C to +105°C, this connector ensures your electronics perform safely and reliably under demanding conditions.
Order your FCI PV wire-to-board connector 76384305LF today and enhance your project with high reliability and durable performance in electronic assemblies.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 76384305LF?
You can click on the BUY or RFQ button to purchase 76384305LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 76384305LF?
You can download the 76384305LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 76384305LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
