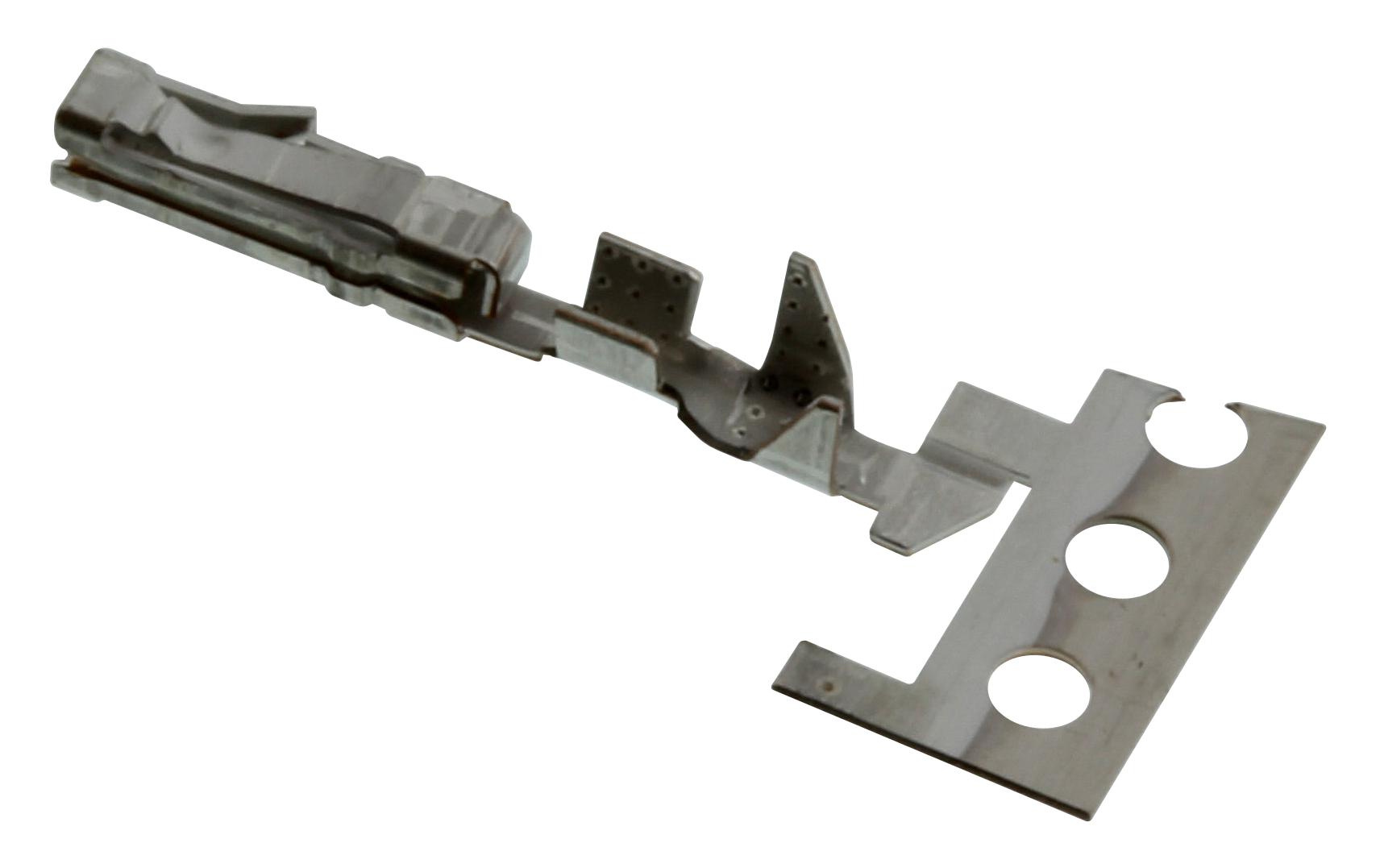

AMPHENOL COMMUNICATIONS SOLUTIONS 76385306LF board-to-board connector
The DUBOX 76385 series connectors are versatile, designed for both through-hole and surface-mount applications. Suitable for 2 to 50 positions, they feature a dual-beam, pre-stressed contact design that minimizes insertion force and ensures reliable electrical connection. The four-wall contact structure enhances signal integrity by providing superior signal protection. Made with high-quality materials like glass filled thermoplastic polyester housing with UL94V-0 rating and gold or tin plating over nickel, these connectors support a maximum current of 3A per contact. They are compatible with vapor-phase, IR reflow, and wave soldering processes, making them ideal for board-to-board, wire-to-board, and flat cable connections in various electronic devices and industrial equipment.
AMPHENOL COMMUNICATIONS SOLUTIONS 76385306LF board-to-board connector Specifications:
- Housing: Glass filled thermoplastic polyester, UL94V-0
- Contacts: Copper alloy with gold or tin plating over nickel
- Current Rating: 3A max. per contact
- Insulation Resistance: 1x 10^9Ω min.
- Contact Resistance: 15MQ max. initial, 20MQ after environmental testing
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: 1.50 N (150gf) max. per gold contact
- Withdrawal Force: 0.30 N (30gf) min. per gold contact
- Insertion Depth: 3.6mm to 6.7mm (top entry), 6mm minimum (bottom entry)
- RoHS Compliant
- Compatible with vapor-phase, IR reflow, and wave soldering processes
Buy the Buy FCI DUBOX Series Connector Part Number 76385306LF Online
Experience top-quality interconnect solutions by purchasing the FCI DUBOX 76385 series connectors online. These versatile, low insertion force connectors support 2 to 50 positions, featuring a durable dual-beam contact design with four-wall signal protection. Suitable for through-hole and surface mount applications, they are compatible with vapor-phase, IR reflow, and wave soldering processes, making them ideal for industrial and electronic device manufacturing. Order now for reliable performance and easy installation in complex electronic assemblies.
Buy FCI DUBOX 76385 series connectors now and ensure reliable, low-insertion-force connections for your electronic applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 76385306LF?
You can click on the BUY or RFQ button to purchase 76385306LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 76385306LF?
You can download the 76385306LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 76385306LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
