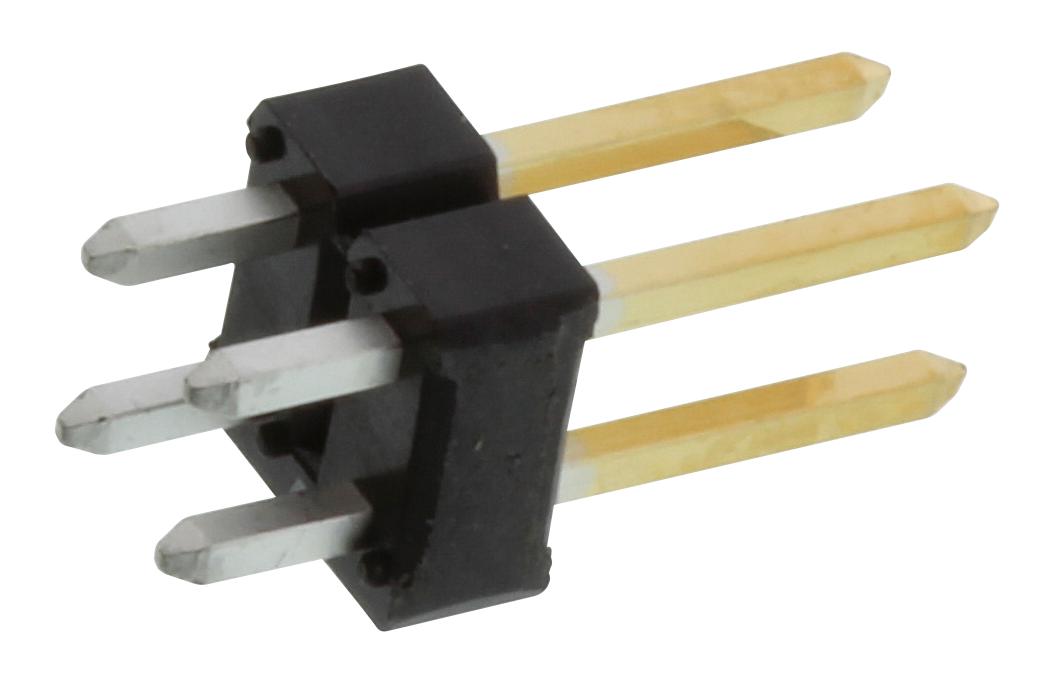

AMPHENOL COMMUNICATIONS SOLUTIONS 67997432HLF Unshrouded Header
BergStik 2.54mm unshrouded headers are versatile connectors designed for board-to-board, wire-to-board, and cable-to-board applications. Available in surface-mount (SMT), through-hole (THT), press-fit, stacking, and pin-in-paste versions, these headers feature high-temperature thermoplastic housing, phosphor-bronze pins with gold or tin plating, and a robust design supporting up to 3A current per contact. Suitable for industrial, automotive, and electronic markets, they enable flexible mounting options, high electrical performance, and compatibility with various soldering processes for reliable, cost-effective connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 67997432HLF Unshrouded Header Specifications:
- Housing Material: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating Options: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N min.
- Retention Leg Insertion Force: >44.48N max.
- Suitable for SMT, THT, press-fit, stacking, and pin-in-paste processes
- Availability: Single and double row configurations from 2 to 72 positions
- Packaged in bags, tape-and-reel, or tubes, adaptable to manufacturing needs
- Applicable for high-reliability electronic connections with up to 100 mating cycles
Buy the Buy BergStik 2.54MM Unshrouded Headers Part Number 67997432HLF Online
Secure your electronic projects with BergStik 2.54mm unshrouded headers. Designed for versatility and durability, these connectors support SMT, THT, and stacking configurations. With high-temperature thermoplastic housing, gold or tin plating, and a robust design, they ensure excellent electrical performance and mechanical retention. Ideal for industrial, automotive, and general electronics, these headers facilitate reliable, cost-effective connections up to 3A per contact. Stocked in various sizes and packaging options, they’re your ideal choice for flexible PCB assembly and maintenance.
Buy BergStik 2.54MM unshrouded headers now and experience reliable, high-performance board-to-board and wire-to-board connections in your electronic applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 67997432HLF?
You can click on the BUY or RFQ button to purchase 67997432HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 67997432HLF?
You can download the 67997432HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 67997432HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
