AMPHENOL COMMUNICATIONS SOLUTIONS 76385308LF Wire-to-Board Connector System
The PV wire-to-board connector system offers a high-reliability crimp-to-wire solution with dual-metal receptacle contacts designed for industry-standard 0.025 inch posts. Suitable for applications in instrumentation, medical equipment, industrial machinery, automotive, data communications, and aerospace, this system features shrouded headers, polarized MINI-LATCH housings, and a range of configurations from single to double rows. The connectors support Wire diameters up to 1.52mm, with excellent electrical performance, durability for 1000 mating cycles, and RoHS-compliant materials, ensuring robust performance across diverse industries.
AMPHENOL COMMUNICATIONS SOLUTIONS 76385308LF Wire-to-Board Connector System Specifications:
- Contact Material: Brass body with beryllium copper spring
- Contact Plating: Gold or pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0 for MINI-LATCH; Glass filled nylon UL94V-0 for headers
- Current Rating: 3.0A with 32 AWG wire; derating applies for larger wires
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact Resistance: <2mQ
- Temperature Range: -40°C to +105°C
- Durability: 1000 mating cycles
- Wire Range: Up to 1.52mm diameter
- Mechanical: Mating and unmating forces vary by spring type (high force 450g, ultra-high force 100g to 175g)

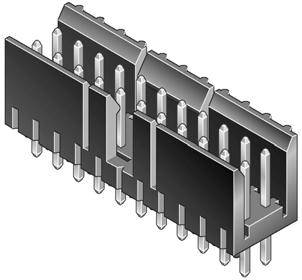

Buy the FCI Series PV Wire-to-Board Connectors: 76385308LF
Discover the efficient and reliable FCI PV wire-to-board connector system, designed for durability and high performance in industrial, automotive, and medical applications. Featuring dual-metal contacts, polarized MINI-LATCH housings, and multiple configuration options, this connector ensures secure connections with up to 1000 mating cycles. Made with RoHS-compliant materials, it supports wire diameters up to 1.52mm and withstands voltages up to 1000V RMS. Perfect for engineers seeking a robust, easy-to-assemble solution integrated into modern electronic systems.
Buy FCI PV wire-to-board connector system now and experience unmatched reliability, high durability, and versatile configurations for your critical electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 76385308LF?
You can click on the BUY or RFQ button to purchase 76385308LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 76385308LF?
You can download the 76385308LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 76385308LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
