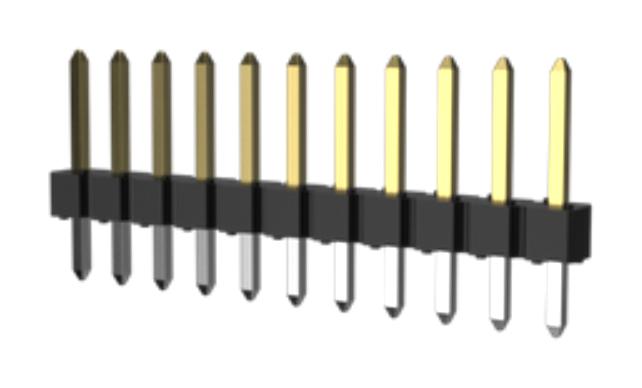

AMPHENOL COMMUNICATIONS SOLUTIONS 68002200HLF Interconnection Header
The BergStik 2.54mm unshrouded headers are versatile connectors available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions. Designed for high-density interconnect applications, these headers can be configured in single or double rows with straight or right-angle options, supporting from 2 to 72 positions. They feature a breakaway design for easy customization, high-temperature thermoplastic housing, phosphor-bronze pins with gold or tin plating, and withstands operating temperatures from -65°C to +125°C. Suitable for industrial, automotive, and electronic devices with up to 100 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS 68002200HLF Interconnection Header Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27µm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retention Force: 9N min.
- Pin Retention (Board): 2.22N
- Compatible with wave, vapor-phase, IR reflow soldering
- RoHS compliant
Buy the Buy FCI BergStik 2.54MM Unshrouded Headers Part Number 68002200HLF Online
Purchase FCI BergStik 2.54mm unshrouded headers today to ensure durable, high-performance connections in your electronic assemblies. Available in surface-mount, through-hole, and stacking formats, these connectors support various configurations from 2 to 72 positions. Designed with high-temperature thermoplastic housing, phosphor-bronze pins plated in gold or tin, and capable of withstanding temperatures from -65°C to +125°C, they offer up to 100 mating cycles, making them ideal for industrial, automotive, and consumer electronics applications.
Buy FCI BergStik 2.54MM unshrouded headers now and experience reliable, flexible interconnection solutions for all your electronic projects.
