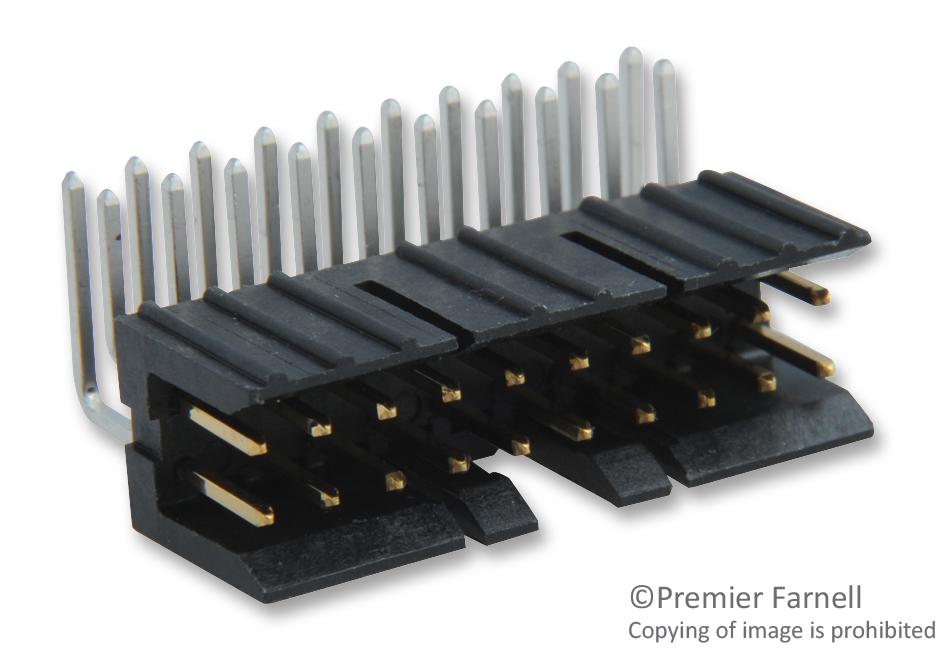

AMPHENOL COMMUNICATIONS SOLUTIONS 78207120HLF Wire-to-Board Connector System
The PV wire-to-board connector system offers a reliable, durable connection solution for various applications including industrial equipment, automotive electronics, and data communication. Featuring dual-metal receptacle contacts with a gas-tight crimp and high number of mating cycles, the system ensures high performance and long-term stability. Its modular design includes shrouded headers, MINI-LATCH housings with polarization, and options for single or double rows. Rated for 1000V and current of 3A, it is ideal for high-reliability electronic and industrial use, supporting wire sizes up to 1.52mm diameter.
AMPHENOL COMMUNICATIONS SOLUTIONS 78207120HLF Wire-to-Board Connector System Specifications:
- Contact Material: Brass body with beryllium copper spring
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0; Glass filled nylon UL94V-0
- Current Rating: 3.0A per circuit with 32 AWG wire
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (PCB header)
- Contact Resistance: <2mQ
- Un-mating Force: 75g (ultra-high spring), 175g (high spring)
- Mating Force: 450g (high force spring), 100g (ultra-high force spring)
- Operating Temperature: -40°C to +105°C
- Number of Cycles: 1000
- Wire Diameter: Max 1.52mm
- Application: Industrial, automotive, data communication, military, medical
Buy the Buy FCI PV Wire-to-Board Part Number 78207120HLF Online
Purchase the FCI PV wire-to-board connector system online today to ensure high-performance, long-lasting reliability, and secure connections for industrial, automotive, and communication equipment. This system features dual-metal contacts for gas-tight crimps, high durability over 1000 mating cycles, various configurations including single and double rows, and polarization keys for proper mating. Rated for 1000V and suitable for wire sizes up to 1.52mm, it guarantees efficient and safe electrical connections in critical applications, backed by comprehensive certifications and support.
Get FCI PV wire-to-board connector system today—designed for high reliability, durability, and precise electronic connections in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 78207120HLF?
You can click on the BUY or RFQ button to purchase 78207120HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 78207120HLF?
You can download the 78207120HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 78207120HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
