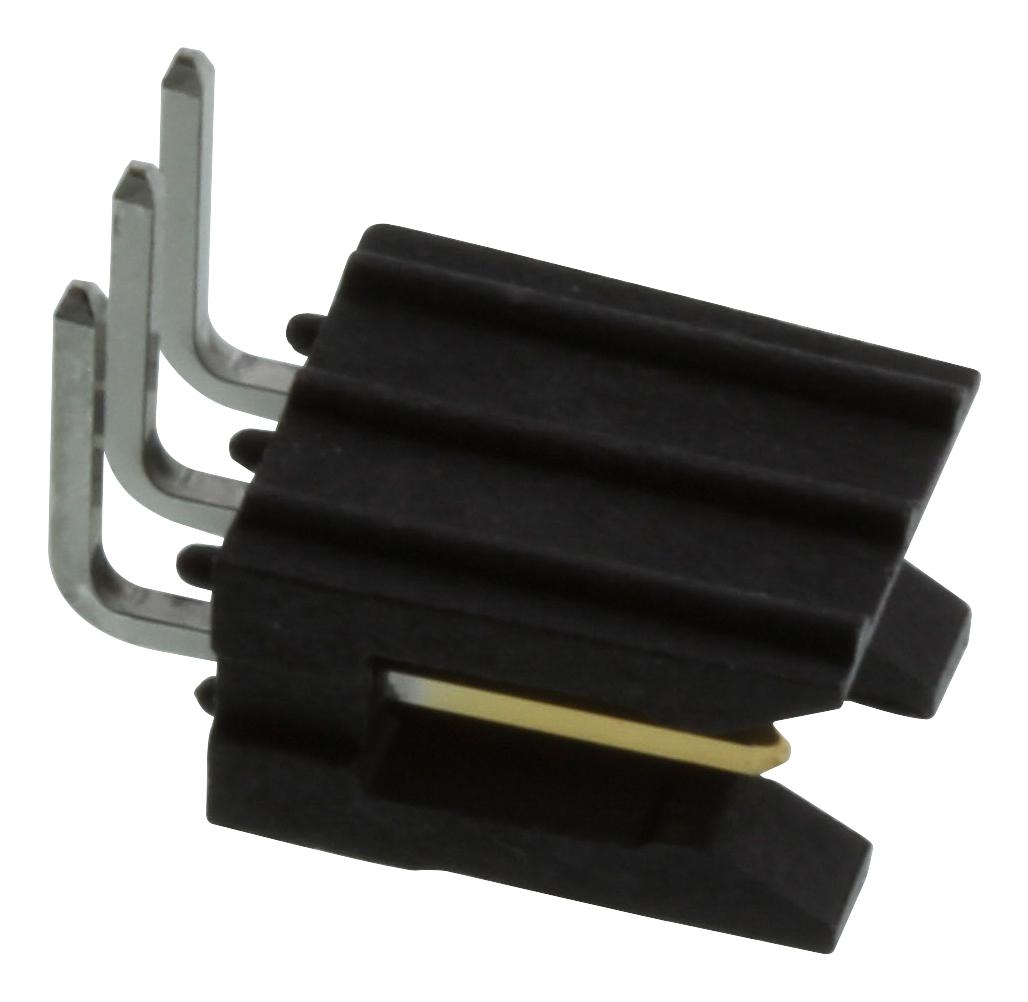

AMPHENOL COMMUNICATIONS SOLUTIONS 78208103HLF Wire-to-Board Connector System
The PV wire-to-board connector system features high reliability dual-metal receptacle terminals that maintain contact pressure through 1000 mating cycles. Designed for industrial, medical, automotive, and communication applications, it offers options with varying spring pressures to suit different insertion and withdrawal forces. The system includes miniature latch housings, shrouded headers, and polarization to prevent mis-mating. Made with high-quality materials like brass, phosphor bronze, and UL94V-0 plastics, it withstands up to 105°C and 1000V RMS, supporting robust, durable electrical connections for critical industries.
AMPHENOL COMMUNICATIONS SOLUTIONS 78208103HLF Wire-to-Board Connector System Specifications:
- Contact Material: Brass and beryllium copper spring
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide, glass-filled nylon
- Temperature Range: -40°C to +105°C
- Current Rating: 3.0A with 32 AWG wire, derated for larger wires
- Insulation Resistance: >10000MQ (wire), >5000MQ (header)
- Withstanding Voltage: 1000V RMS
- Durability: 1000 mating cycles
- Mating Force: 450g (high spring), 100g (ultra-high spring)
- Un-mating Force: 75g (high spring), 175g (ultra-high spring)
Buy the FCI Series PV: Wire-to-Board Connector System 78208103HLF
Enhance your electronic assemblies with the FCI wire-to-board connector system, featuring dual-metal contacts, polarization, and a robust design rated for up to 105°C and 1000V RMS. It offers a range of housing and header options, supporting circuits from 1 to 72 positions, suitable for industrial, medical, automotive, and communication applications. The system is engineered for durability, with 1000 mating cycles, and complies with RoHS standards, ensuring safe, reliable, and long-lasting electrical connections. Easy to install with application tooling support.
Buy FCI PV wire-to-board connector system 78208103HLF now and benefit from high reliability, durability, and customizable forces suitable for industrial and automotive electronics.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 78208103HLF?
You can click on the BUY or RFQ button to purchase 78208103HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 78208103HLF?
You can download the 78208103HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 78208103HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
