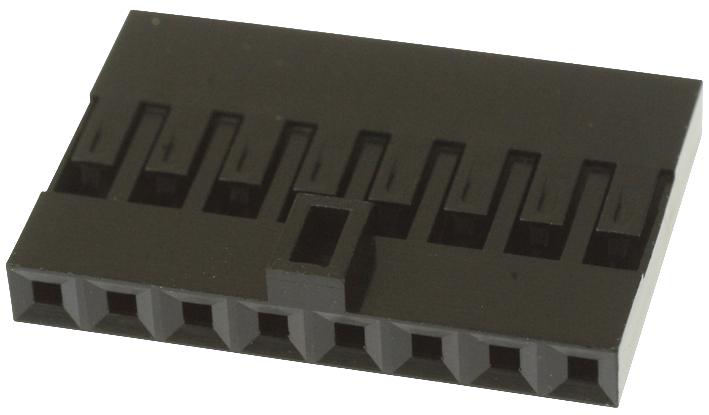

AMPHENOL COMMUNICATIONS SOLUTIONS 78211008LF Wire-to-Board Connector
The PV wire-to-board connector system offers high reliability and durability for connecting wires to printed circuit boards in diverse applications such as industrial equipment, automotive electronics, and medical devices. Featuring a unique dual-metal receptacle with gas-tight crimp termination, it maintains contact pressure through 1000 mating cycles. Available in single or double row configurations with polarized mini-latch housings, it ensures secure mating and ease of assembly. The connectors support wire sizes up to 1.52mm diameter with options for gold or lead-free tin plating, making them ideal for demanding electronic and industrial environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 78211008LF Wire-to-Board Connector Specifications:
- Contact Material: Brass body, beryllium copper spring, PCB headers made of phosphor bronze
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Polyphenylene oxide UL94V-0 for mini-latch, glass-filled nylon UL94V-0 for headers
- Current Rating: 3.0A with 32 AWG wire, de-rating as wire size increases
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: >10000MQ for wire connector, >5000MQ for PCB header
- Contact Resistance: <2mQ
- Mating Force: 450g (high spring), 100g (ultra-high spring)
- Un-mating Force: 75g (high spring), 175g (ultra-high spring)
- Durability: 1000 cycles
- Operating Temperature: -40°C to +105°C
Buy the Fci Series PV Wire-to-Board Connector: 78211008LF
Purchase the Fci wire-to-board connector 78211008LF online today to ensure dependable electrical connections in your electronic projects. Designed for high durability and multiple mating cycles, it features a dual-metal contact system with gas-tight crimping for secure wire termination. Ideal for industrial, automotive, medical, and communication equipment, the connector supports wire sizes up to 1.52mm with options for gold or tin plating. Easy to assemble with polarized mini-latch housings, it guarantees secure, long-lasting connections, simplifying your manufacturing or repair process. Order now for reliable performance and quality assurance.
Buy Fci 78211008LF now and experience unmatched reliability with high cycle durability and secure wire-to-board connection solutions for industrial and consumer electronics.
