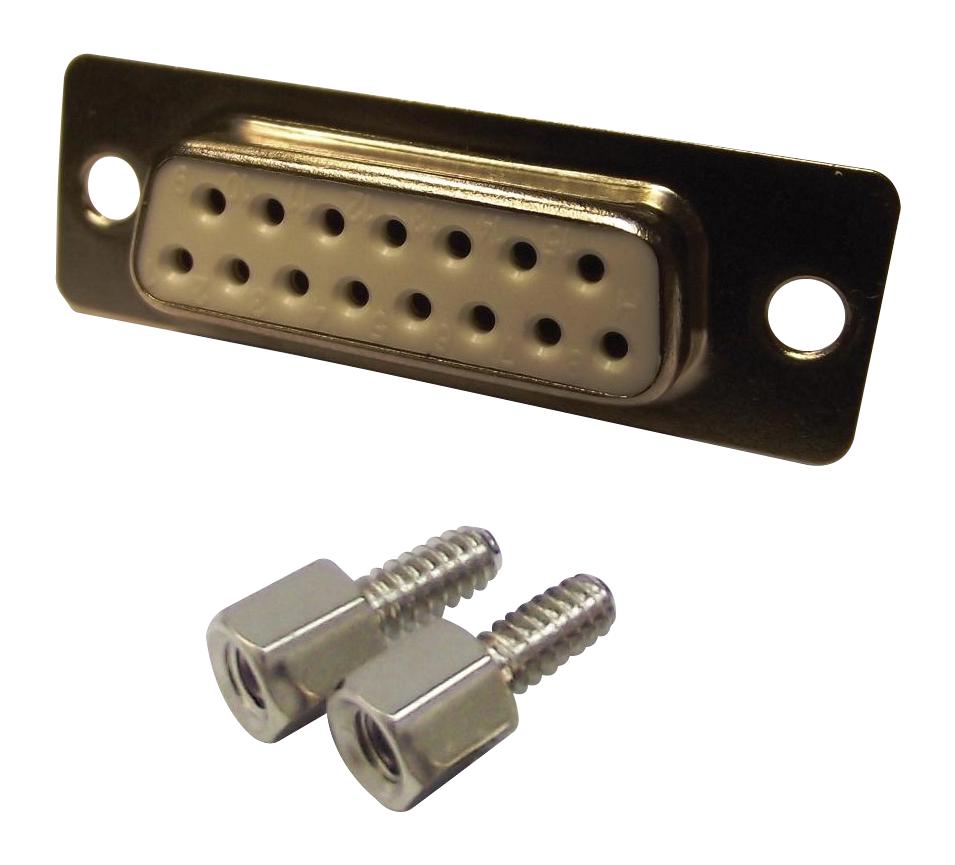

AMPHENOL COMMUNICATIONS SOLUTIONS LD15S24A4GV00LF D-Subminiature Connector
The LD15S24A4GV00LF is an economical D-Subminiature right-angle connector designed for less demanding applications in telecommunications, industrial, and consumer electronics. It features robust construction with a steel shell, gold flash-plated copper alloy contacts, and an operating temperature range of -55°C to +105°C. Compliant with DIN 41652 and MIL-C-24308 standards, this connector offers reliable performance with 50 mating cycles, rated for 5A current and 250V. It supports diverse PCB mounting options including straight and right-angle configurations, making it ideal for energy meters, control devices, and set-top boxes.
AMPHENOL COMMUNICATIONS SOLUTIONS LD15S24A4GV00LF D-Subminiature Connector Specifications:
- Material: Steel shell, copper alloy contacts with gold flash plating
- Insulation Resistance: >5000MQ
- Dielectric Strength: 1000V RMS
- Operating Temperature Range: -55°C to +105°C
- Current Rating: 5A
- Rated Voltage: 250V
- Number of Mating Cycles: 50
- Contact Resistance: <25mQ
- Shell Plating: Nickel/Tin
- Pin and socket options: Straight and right-angle configurations
- Dimension compatibility: Supports footprint pitches of 10.4mm and 8.08mm
- Standards: DIN 41652, MIL-C-24308
Buy the Fci Series Economy Range D-Sub: LD15S24A4GV00LF
Purchase the Fci Series Economy Range D-Sub LD15S24A4GV00LF today online and ensure reliable connectivity for less demanding applications. This durable connector features a steel shell, gold flash-plated contacts, and supports diverse PCB mounting options, including straight and right-angle configurations. With a current rating of 5A and voltage of 250V, it guarantees excellent performance in energy meters, control devices, set-top boxes, and industrial equipment. Its compliance with key standards and durability of 50 mating cycles make it a trusted choice for your projects.
Order your Fci Series Economy Range D-Sub LD15S24A4GV00LF today and give your projects the dependable quality they deserve for less demanding industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS LD15S24A4GV00LF?
You can click on the BUY or RFQ button to purchase LD15S24A4GV00LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part LD15S24A4GV00LF?
You can download the LD15S24A4GV00LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of LD15S24A4GV00LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
