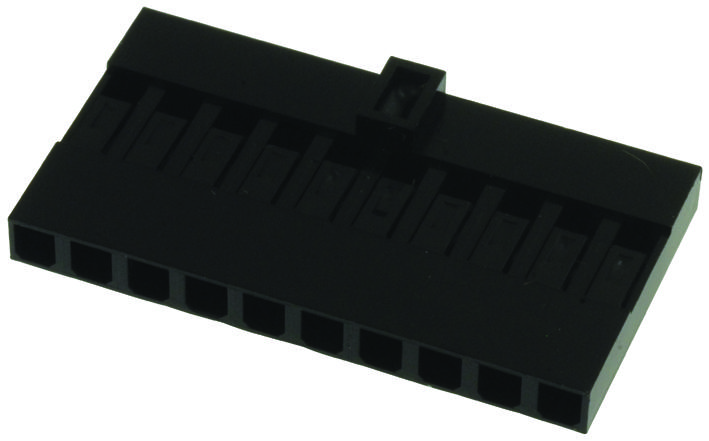

AMPHENOL COMMUNICATIONS SOLUTIONS 78211010LF Wire-to-Board Connector System
The PV wire-to-board connector system features a reliable dual-metal crimp receptacle design, supporting up to 1000 mating cycles, ideal for industrial, medical, automotive, and communication applications. It includes shrouded headers and MINI-LATCH housings that ensure precise polarization and secure engagement, with options for different pole counts and configurations. Constructed with high-quality materials like brass and Phosphor bronze, these connectors offer excellent electrical performance with 3.0A current rating, withstand voltage of 1000V, and operating temperatures from -40°C to +105°C. Compatible with automated tooling for efficient assembly.
AMPHENOL COMMUNICATIONS SOLUTIONS 78211010LF Wire-to-Board Connector System Specifications:
- Contact Material: Brass body and beryllium copper spring
- PCB Header Material: Phosphor bronze
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0, glass filled nylon UL94V-0
- Current Rating: 3.0A per circuit with 32 AWG wire
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact Resistance: <2mQ
- Mating Force: 450g (high force spring), 100g (ultra-high force spring)
- Un-mating Force: 75g (high force spring), 175g (ultra-high force spring)
- Durability: 1000 cycles
- Temperature Range: -40°C to +105°C
Buy the FPI 78211010LF – Reliable Wire-to-Board Connectors for Industrial Applications
Enhance your electronic assemblies with our high-reliability wire-to-board connector system designed for industrial, automotive, communication, and medical applications. Featuring dual-metal crimp receptacles, shrouded headers, and MINI-LATCH housings for secure mating, these connectors support up to 1000 mating cycles and offer excellent electrical performance with a 3A current rating and withstand voltage of 1000V. Made from high-quality materials like brass and phosphor bronze, supported by automated tooling for efficient assembly, they are ideal for demanding environments and mission-critical applications.
Buy FPI 78211010LF now and experience unmatched reliability and performance in high-quality wire-to-board connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 78211010LF?
You can click on the BUY or RFQ button to purchase 78211010LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 78211010LF?
You can download the 78211010LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 78211010LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
