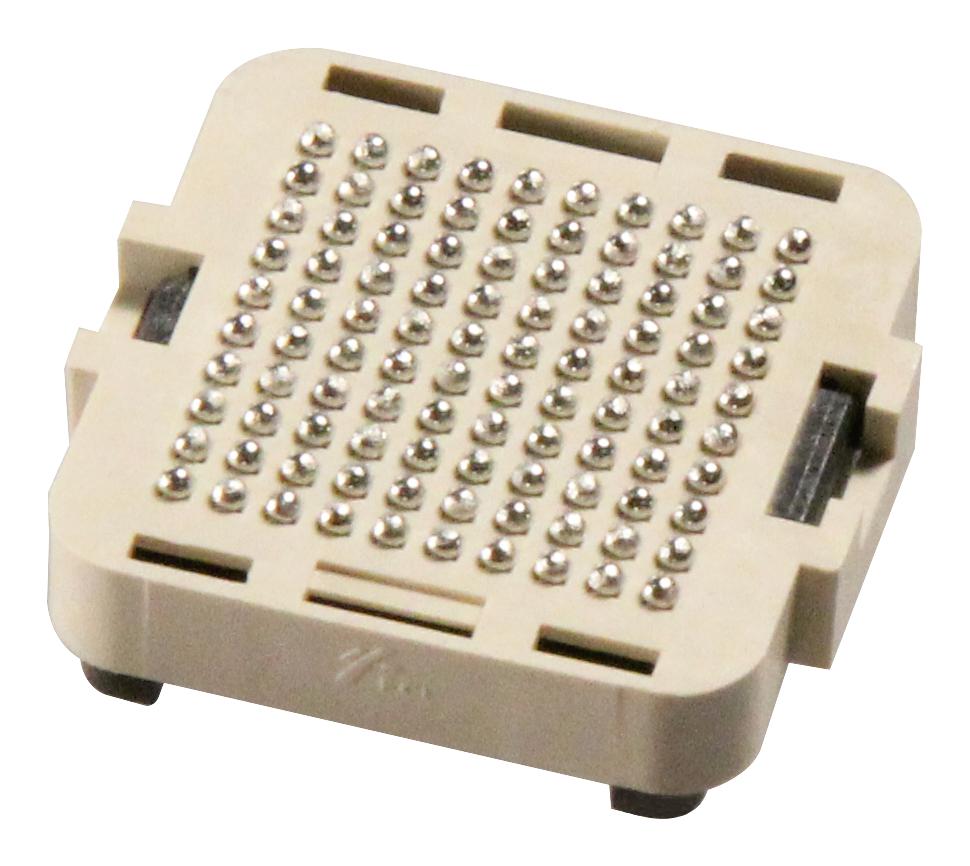

AMPHENOL COMMUNICATIONS SOLUTIONS 84512102LF Mezzanine Connector
The MEG-Array® Mezzanine Connector System offers high-density, high-speed BGA-based connectors designed for reliable performance exceeding 10Gb/s. Equipped with 1.27mm x 1.27mm arrays and supporting multiple PCB stack heights from 4mm to 14mm, these connectors enable flexible ground distribution, minimize crosstalk, and optimize signal integrity. Manufactured with durable materials like copper alloy contacts and liquid crystal polymer housings, they meet rigorous standards including Telcordia GR-1217-CORE and IPC specifications, ensuring longevity and reliability suitable for communications, networking, data storage, industrial controls, and medical applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 84512102LF Mezzanine Connector Specifications:
- Housing Material: Liquid crystal polymer
- Contact Material: Copper alloy
- Solderball Options: 63Sn/37Pb @ 0.76mm, 95.5Sn/4Ag/0.5Cu (Pb-Free)
- Electrical Rating: 0.45A per contact (<30°C), 2.0A (<30°C single contact)
- Dielectric Withstanding Voltage: 2000V AC max.
- Insulation Resistance: 1000MΩ min.
- Durability: Up to 200 cycles
- Contact Wipe: 0.80mm nominal
- Contact Resistance: Low-level, specific to stack height
- Compliance: RoHS, Telcordia GR-1217-CORE, NPS-25298-2
- Dimensions: Housing lengths from 16.07mm to 19.88mm, widths from 10.16mm to 54.61mm, BGA pad lengths from 8.89mm to 54.61mm
- Array Sizes: 81, 100, 200, 240, 300, 320, 400, 528 positions
- Stack Heights: 4mm to 14mm (various models)
Buy the Mega Connectors 84512102LF – Reliable High-Speed Mezzanine Connectors for Industrial Applications
Purchase the Mega series 84512102LF high-speed mezzanine connector online now and enjoy reliable performance exceeding 10Gb/s. Designed for diverse PCB stack heights from 4mm to 14mm, these connectors deliver exceptional signal integrity, low crosstalk, and are constructed with durable materials meeting industry standards. Ideal for communications, data storage, industrial controls, and medical applications, order today to ensure your systems are equipped with trusted, high-performance interconnects that boost circuit reliability and reduce overall costs.
Order your Mega Series 84512102LF high-speed mezzanine connector today and enhance your industrial projects with dependable connectivity solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 84512102LF?
You can click on the BUY or RFQ button to purchase 84512102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 84512102LF?
You can download the 84512102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 84512102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
