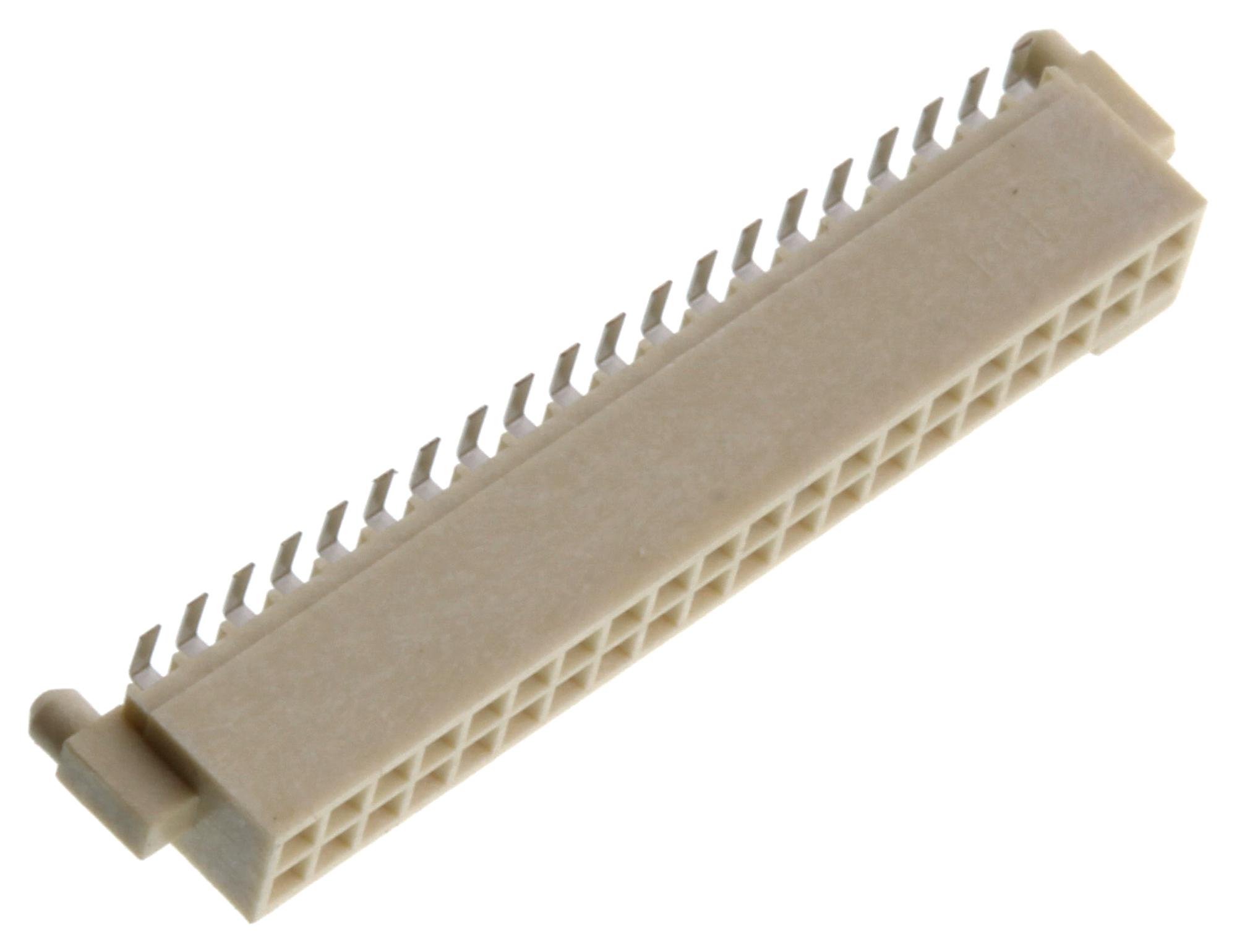

AMPHENOL COMMUNICATIONS SOLUTIONS 87024620LF Board-to-Board Connector System
The Rib-Cage connector system offers a 1.27mm pitch board-to-board solution designed for high performance, shock, and vibration applications. It features dual-row, gold-plated contacts, multiple stack height options, and polarized design to prevent mis-mating. Suitable for military, outdoor, security, and point-of-sale markets, it provides reliable vertical, right-angle, and mezzanine connections. Made with high-quality materials, it complies with RoHS standards, ensuring environmental safety and durability for demanding electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS 87024620LF Board-to-Board Connector System Specifications:
- Pitch: 1.27mm (0.050in.)
- Contact Material: Copper alloy, phosphor bronze
- Plating: Gold over nickel (contact), Tin over nickel (solder tails)
- Housing: Glass-filled thermoplastic, UL94V-0, black or natural
- Temperature Range: -55°C to 130°C
- Current Rating: 1.0A per contact
- Contact Resistance: Max 20mΩ initially, 25mΩ after testing
- Insulation Resistance: Min 50,000 MΩ
- Withstanding Voltage: 800V AC RMS
- Capacitance: Max 1.0pf
- Mechanical Durability: 200 mating cycles
- Shock & Vibration: MIL-STD-202, IEC 60512
- Housing Material: Thermoplastic
- Environmental Compliance: RoHS
Buy the Buy FCI Rib-Cage Part Number 87024620LF Online
Purchase the FCI Rib-Cage Board-to-Board Connector System online today. Engineered for extreme reliability, this 1.27mm pitch connector features gold-plated contacts, multiple stacking options, polarization, and RoHS compliance. Its robust design ensures optimal performance in military, outdoor, security, and point-of-sale applications. With a compact form factor and high mechanical durability, this connector provides secure, reliable connections for complex electronic assemblies. Order now for quick delivery and professional support for your high-performance projects.
Get FCI Rib-Cage 87024620LF today—designed for high vibration and shock resistance in demanding electronic systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87024620LF?
You can click on the BUY or RFQ button to purchase 87024620LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87024620LF?
You can download the 87024620LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87024620LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
