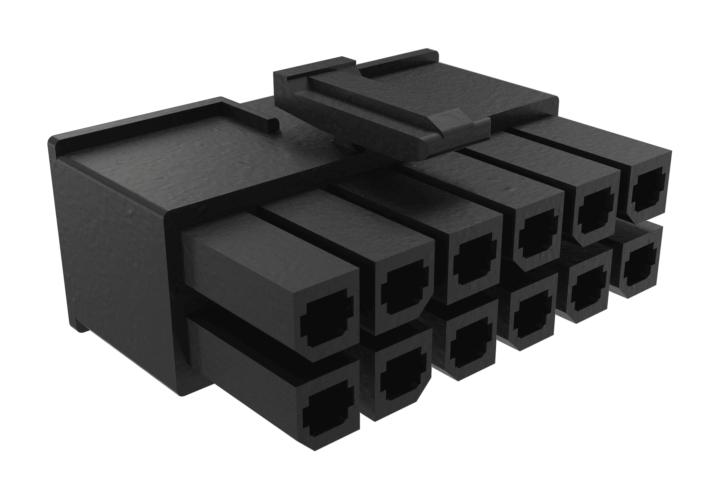

AMPHENOL COMMUNICATIONS SOLUTIONS 1014270708LF Power Connector
The Minitek Pwr 5.70mm Connector System is a high-current power connector designed for reliable wire-to-board applications. It supports current ratings up to 23A per contact and accommodates wire gauges from 16 to 12 AWG. Made from UL94V-0 rated, halogen-free materials, it features polarized geometry to prevent mis-mating, a scoop-proof housing to prevent terminal damage, and solid locking mechanisms for secure connections. Suitable for various household and industrial electrical equipment, this connector ensures durability, environmental resistance, and compliance with international safety standards for demanding high-current applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270708LF Power Connector Specifications:
- Current Rating: Up to 23A per contact
- Wire Range: 16-12 AWG
- Operating Temperature: -40°C to 105°C
- Material: UL94V-0 rated, halogen-free LCP and Nylon 66
- Contact Material: High-conductivity copper with optional tin and gold plating
- Housing: Black & natural UL94V-0 materials
- Mating Force: Tin plated 6.8N, gold plated 6.0N
- Unmating Force: Tin plated 6.5N, gold plated 5.6N
- Durability: Tin plated 25 cycles, gold plated 200 cycles
- Voltage Rating: 600V AC/DC
- Insulation Resistance: Minimum 1000MQ
- Dielectric Withstand Voltage: 2200V AC
- Operating Temp Range for Gold Plated: -40°C to 120°C
- Dimensions and physical design include dual and right-angle configurations with secure locking features.
Buy the Buy Amphenol Minitek Pwr 5.70mm Part Number 1014270708LF Online
Order the Amphenol Minitek Pwr 5.70mm Power Connector today to ensure a high-current, secure, and durable power connection solution. Designed with polarized geometry and scoop-proof housing, it supports up to 23A per contact and wire gauges from 16 to 12 AWG. The UL94V-0 rated, halogen-free materials offer excellent environmental resistance, making it suitable for household appliances, industrial equipment, and telecommunication systems. This connector guarantees reliable performance, compliance with international standards, and easy installation to meet technical and safety needs.
Get Amphenol Minitek Pwr 5.70mm connector system today—built for high-current, secure, and reliable power connections in demanding electrical applications.
