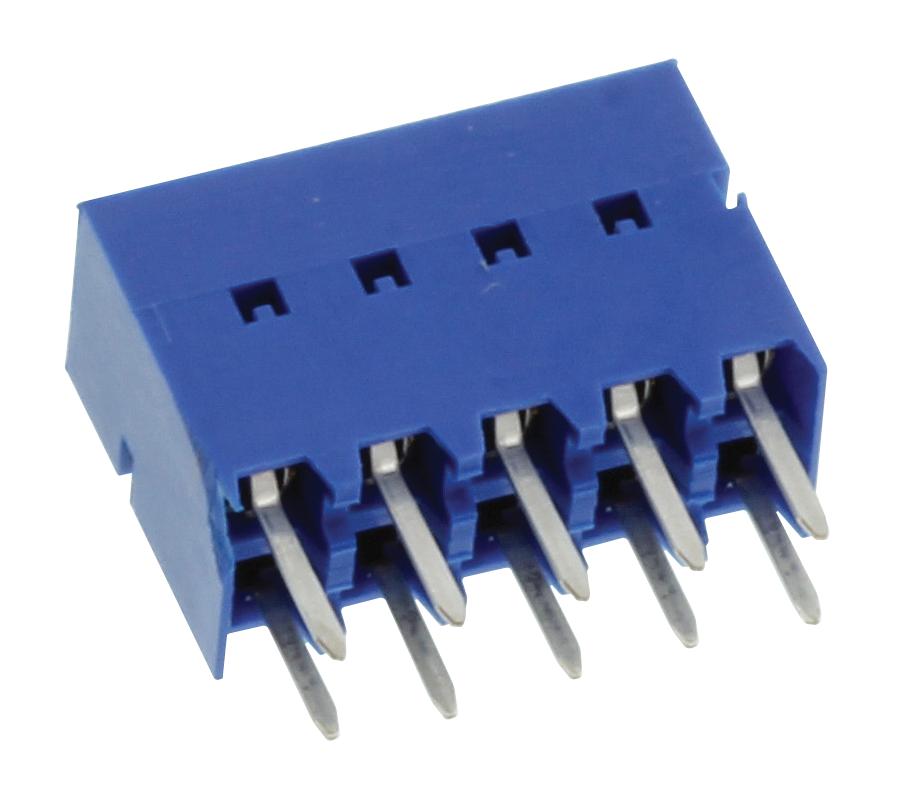

AMPHENOL COMMUNICATIONS SOLUTIONS 87606305LF Vertical Receptacle
The product is a high-performance vertical receptacle designed for reliable connections in electronic assemblies. Constructed with glass-filled thermoplastic polyester housing, it features a dual-beam contact design for low insertion force and signal protection. The receptacle supports up to 3A current per contact, with a dielectric withstand voltage of 1000V RMS. Its operating temperature range spans -65°C to +125°C, and it withstands 200 mating cycles. Suitable for surface-mount and through-hole applications, it offers RoHS compliance and easy soldering compatibility, ensuring durability and signal integrity in complex electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606305LF Vertical Receptacle Specifications:
- Housing Material: Glass filled thermoplastic polyester
- Housing Color: Blue
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over 1.27m nickel
- Current Rating: 3A DC max. per contact
- Insulation Resistance: 1x 10^9 MΩ min.
- Contact Resistance: 15 MΩ initial, 20 MΩ after environmental testing
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: Max 1.50 N (150gf) per gold contact
- Withdrawal Force: Min 0.30 N (30gf) per gold contact
- Insertion Depth: 3.6mm min. to 6.81mm max.
- Environmental Resistance: RoHS compliant
- Packaging: Plastic boxes or tubes
- Compatibility: Suitable for wave soldering and IR reflow
Buy the Buy FCI DUBOX™ Vertical Receptacle Part Number 87606305LF Online
Enhance your electronic assemblies with the FCI DUBOX™ vertical receptacle, featuring a dual-beam design for low insertion force, high current capacity, and excellent temperature tolerance. Crafted from high-quality thermoplastic and plated with gold or tin, it ensures durability, signal integrity, and easy soldering. Ideal for surface-mount and through-hole applications, it supports 3A per contact and withstands 200 mating cycles. RoHS compliant, this connector is perfect for reliable, high-performance electronic connections in demanding environments.
Buy FCI DUBOX™ 87606305LF vertical receptacle now and experience reliable, low-force connection suitable for high-temperature and signal protection needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606305LF?
You can click on the BUY or RFQ button to purchase 87606305LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606305LF?
You can download the 87606305LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606305LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
