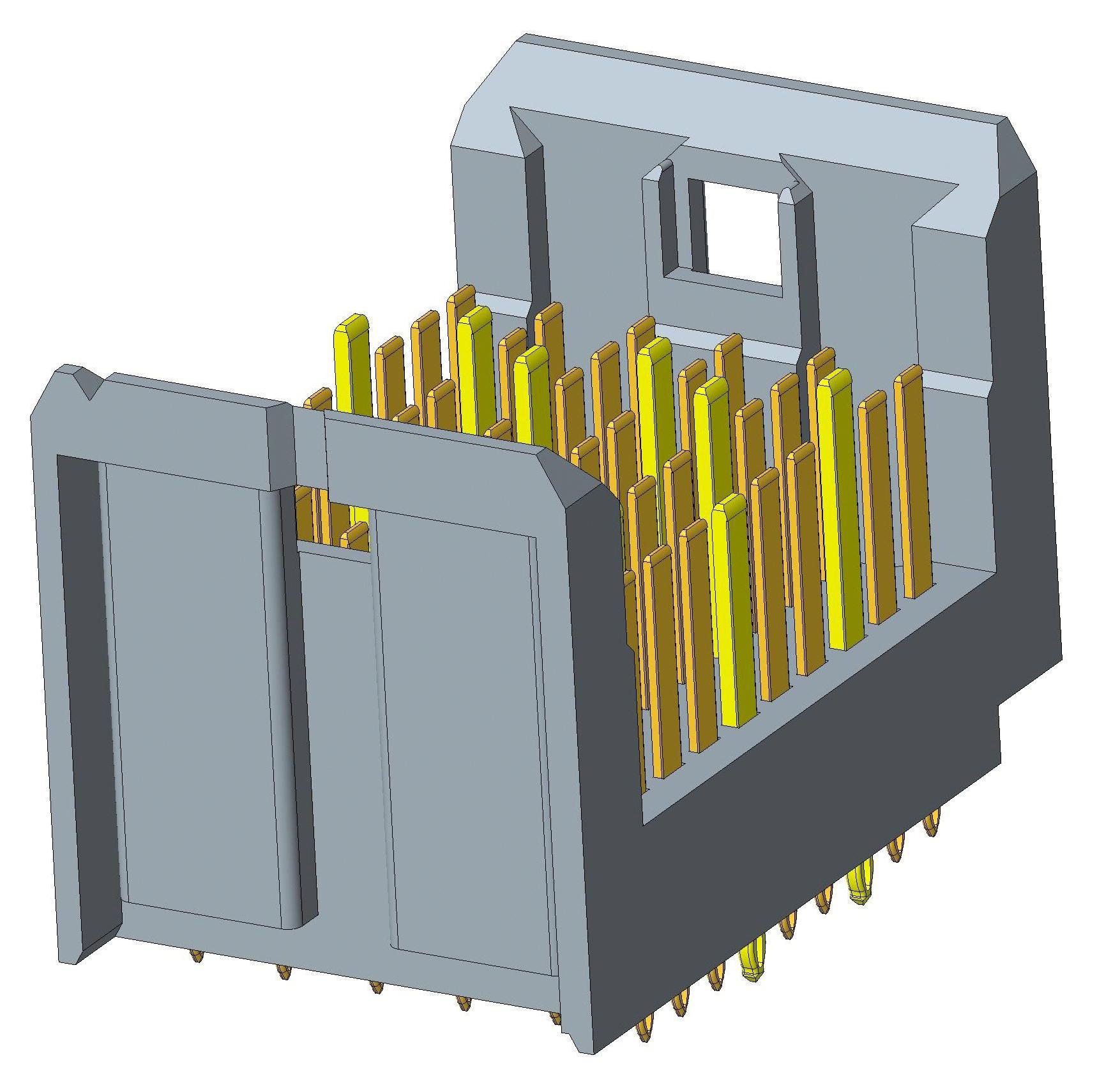

AMPHENOL COMMUNICATIONS SOLUTIONS 10123358101LF High-Speed Backplane Connector
The AirMax VS2 backplane connector system offers a high-performance, shieldless design for migration to 20Gb/s differential pairs, ideal for high-speed communications and optical transmission. It features a low crosstalk, low insertion loss, and compatibility with legacy systems, providing cost-effective upgrades in data, wireless, industrial, and medical applications. The system employs high-quality copper alloys, tin over nickel plating, and thermoplastic housings, supporting durability with 200 mating cycles, maximum current of 0.5A per contact, and environmental certifications including Telcordia GR-1217-CORE approval. Ideal for high-speed backplanes and midplane connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 10123358101LF High-Speed Backplane Connector Specifications:
- Contact Material: Copper Alloy
- Contact Finish: Tin over Nickel, Tin-lead option
- Mounting: PTH press-fit, 0.4mm or 0.5mm pins
- Housing Material: High-performance Thermoplastic 94-VO
- Insertion Loss & Crosstalk: Low, as per graphs
- Electrical Resistance: <60 mΩ initial in backplane
- Current Rating: 0.5 A/contact with <30°C temperature rise
- Durability: 200 mating cycles
- Mating Force: Max 0.50N/contact
- Unmating Force: Min 0.15N/contact
- Pin Insertion Force: 15N (0.4mm), 30N (0.5mm)
- Certification: UL approved, Telcordia GR-1217-CORE
- Application: Communications, data systems, optical transmission, industrial, and medical
- Product Code: GS-12-0956, GS-20-0305
Buy the FCI Series VS2 High-Speed Backplane Connector: 10123358101LF
Order the FCI high-speed backplane connector online today to upgrade your communication, data, and medical systems. Designed for migration to 20Gb/s, it offers exceptional low crosstalk, low insertion loss, and high durability with 200 mating cycles. Compatible with legacy and new components, including 0.4mm and 0.5mm pins, it supports high performance in backplanes, midplanes, and coplanar applications. Ensure reliable, high-speed data transfer by choosing this UL-approved, Telcordia-qualified connector for your next project.
Get FCI 10123358101LF high-speed backplane connector today—built for precision and long-lasting durability in data and communications systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10123358101LF?
You can click on the BUY or RFQ button to purchase 10123358101LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10123358101LF?
You can download the 10123358101LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10123358101LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
