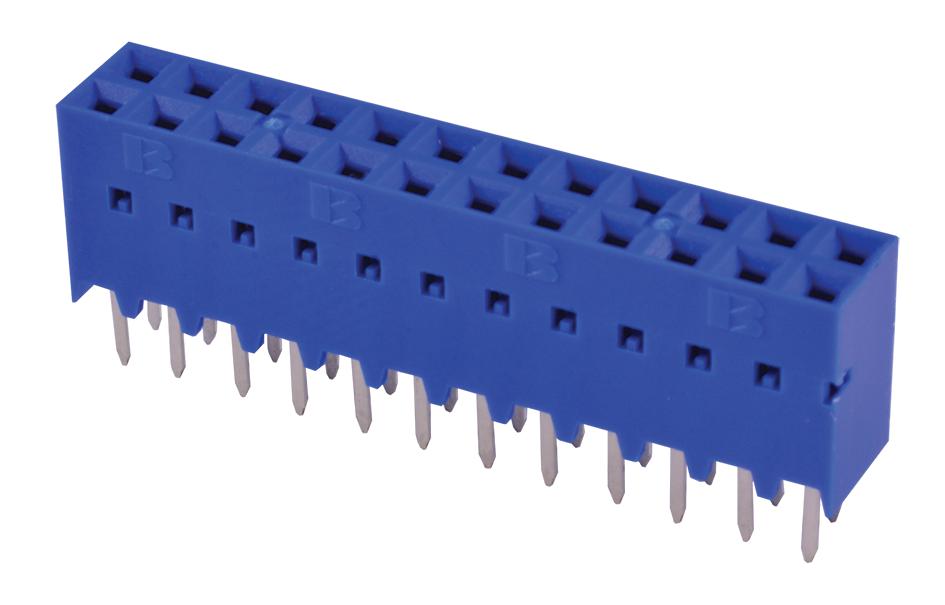

AMPHENOL COMMUNICATIONS SOLUTIONS 87606312LF Vertical Receptacle
The product is a low-profile vertical receptacle designed for durable and reliable electrical connections in PCB assemblies. Constructed from high-temperature, UL94V-0 thermoplastic with phosphor-bronze pins and gold or tin plating over nickel, it supports a current rating of 3A per contact. Designed for operating temperatures from -65°C to +125°C and featuring 200 mating cycles, it provides excellent environmental resistance, low insertion force, signal integrity with 4-wall contact design, and precise insertion depths. Suitable for various electronic applications requiring secure, stackable, and reliable connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606312LF Vertical Receptacle Specifications:
- Housing Material: High-temperature thermoplastic, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over nickel
- Current Rating: 3A DC max. per contact
- Insulation Resistance: 1x 10^9 MQ min.
- Contact Resistance: 15MQ max. initial, 20MQ max. after tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: 1.50 N (150gf) max. per gold contact
- Withdrawal Force: 0.30 N (30gf) min. per gold contact
- Insertion Depth: 3.6mm to 6.81mm (top entry), 6mm min. (bottom entry)
- Environmental Compliance: ROHS
- Packaging Options: Plastic boxes, tubes, reel as applicable
- Compatible With: Wave soldering, IR reflow processes
Buy the Buy FCI DUBOX Vertical Receptacle Part Number 87606312LF Online
Enhance your electronic assembly with this reliable and high-performance vertical receptacle. Crafted from high-temperature thermoplastic with gold or tin plating, it supports up to 3A per contact and withstands temperatures from -65°C to +125°C. Designed for durability with 200 mating cycles, it offers easy insertion, secure connections, and excellent environmental resistance. Perfect for various embedded systems and circuit board applications, this stackable, low-profile connector ensures precision and long-lasting performance. Buy online now to streamline your project with trusted quality.
Get FCI DUBOX vertical receptacle 87606312LF today—engineered for high durability, low insertion force, and secure PCB connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606312LF?
You can click on the BUY or RFQ button to purchase 87606312LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606312LF?
You can download the 87606312LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606312LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
