AMPHENOL COMMUNICATIONS SOLUTIONS L17DPPK15BKL77DA15SST D-Sub Connector Housing

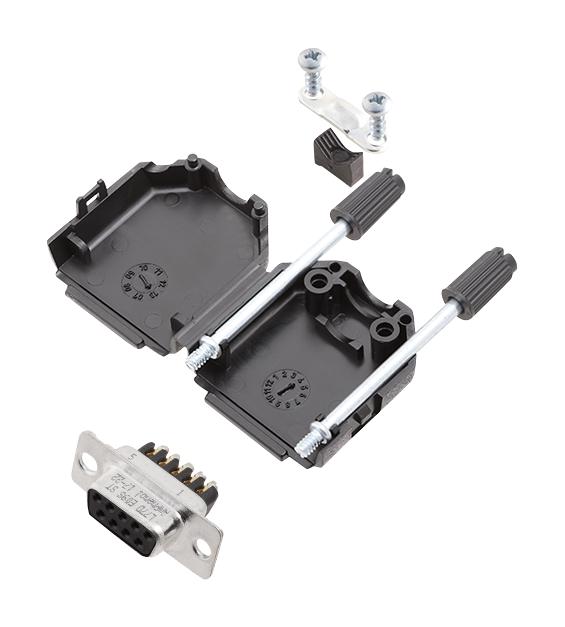

The plastic hood product is a versatile D-Sub connector housing made from UL-recognized polyamide, suitable for various electronic and communication applications. It features a temperature range of -55°C to +105°C, with cable entry at the top and thumb screws for secure fastening. Compatible with AWG 18 wire size, it includes machined brass pins with 15u” gold plating over nickel, withstanding voltage up to 1000V RMS and a current rating of 7.5A. Available in sizes 9, 15, and 25, it’s re-openable for maintenance or modifications.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DPPK15BKL77DA15SST D-Sub Connector Housing Specifications:
- Housing Material: Polyamide, UL-recognized
- Operating Temperature: -55°C to +105°C
- Cable Entry: Top
- Thumbscrews: UNC 4-40 (Standard)
- Cable O.D: Up to 11.5mm
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Machined Brass, 15u” Gold plated over Ni.
- Wire Size: AWG 18
- Contact Plating: Gold flash over Nickel
- Withstanding Voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 7.5A
- Insulator Resistance: >5000MQ min.
- Available Sizes: 9, 15, 25
- Re-openable: Yes
- Dimensions (Size 15): DimA 40.0 mm, DimB 34.0 mm, DimC 15.0 mm
Buy the Amphenol Series D-Sub Connector Housing: L17DPPK15BKL77DA15SST
Enhance your electronic assemblies with the durable and versatile D-Sub connector housing from Amphenol. Made from UL-recognized polyamide, it operates effectively between -55°C and +105°C, fitting AWG 18 wires. Available in sizes 9, 15, and 25, with secure thumbscrews for easy assembly. Features machined brass pins plated with gold over nickel, capable of withstanding voltage up to 1000V RMS. Re-openable design ensures convenient maintenance, making it ideal for communications, industrial automation, and electronic equipment upgrades.
Order your Amphenol Series D-Sub connector housing today and ensure a reliable connection solution for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17DPPK15BKL77DA15SST?
You can click on the BUY or RFQ button to purchase L17DPPK15BKL77DA15SST from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17DPPK15BKL77DA15SST?
You can download the L17DPPK15BKL77DA15SST datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17DPPK15BKL77DA15SST?
AMPHENOL COMMUNICATIONS SOLUTIONS
