AMPHENOL COMMUNICATIONS SOLUTIONS 89047102LF Backplane Connector
The Metral vertical header and right angle receptacle series offers high-density, modular backplane connectors with 250 contacts per 100mm, supporting applications in data, industrial, medical, and telecom markets. Designed according to IEC 61076-4-104 and Telcordia GR-1217-CORE, these connectors feature flexible terminations, multiple row configurations, varying pin lengths, and high reliability for meeting rigorous electronic and environmental demands. Suitable for mezzanine, high-speed, and scalable systems with options for stackability and precise PCB positioning to enhance performance and integration.
AMPHENOL COMMUNICATIONS SOLUTIONS 89047102LF Backplane Connector Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Contact Material: Copper Alloy
- Plating: Performance-based
- Dielectric Withstanding Voltage: 1000 Vrms
- Insulation Resistance: 5000 MΩ min.
- Current Rating: 1A per contact
- Operating Temperature: -55°C to +125°C
- Mating Force: 0.45 N max. per pin
- Unmating Force: 0.15 N min. per pin
- Contact Pitch: 2mm
- Connector Lengths: Modular, scalable in 1, 2, 4, and 8 modules
- Number of Rows: 4 and 5-row options
- Environmental Compliance: IEC 61076-4-104, GR-1217-CORE
- Packaging: Tube for press-fit and solder, tape and reel for pin-in-paste
- Application Types: Data, industrial, instrumentation, medical, telecom

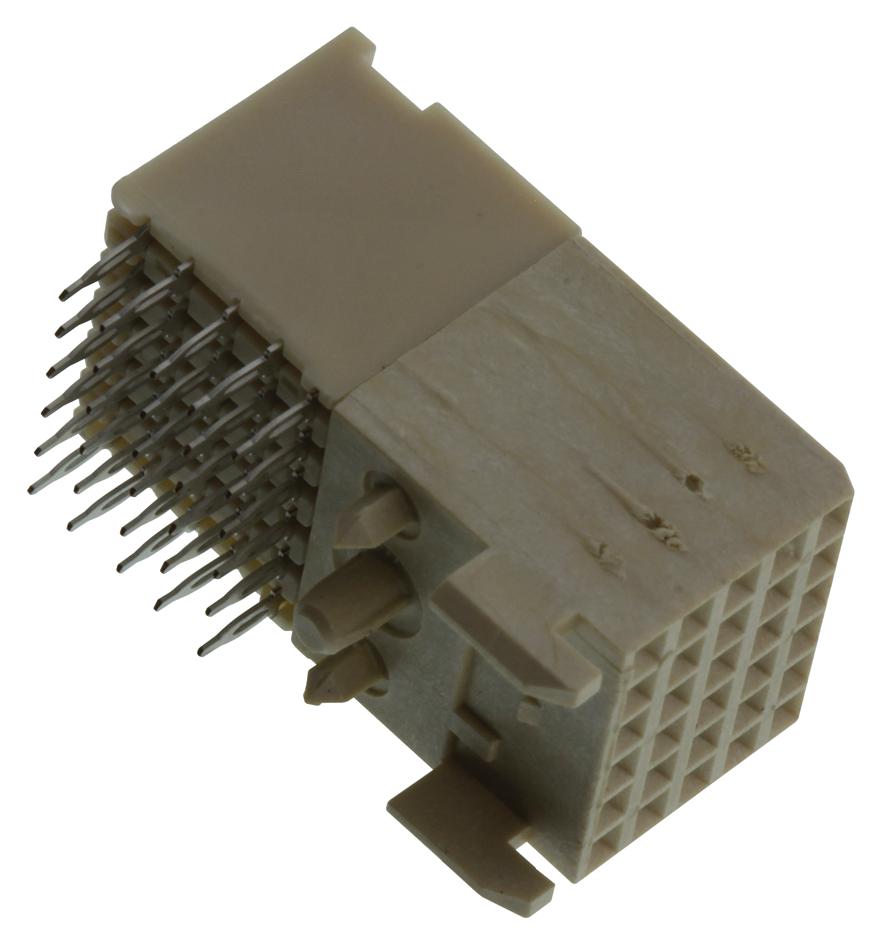

Buy the Metral Series Vertical Header and Receptacle: 89047102LF
Enhance your electronic systems with our high-density backplane connectors, offering 250 contacts per 100mm and flexible modular options. Perfect for diverse markets including data, industrial, medical, and telecom, these connectors support high-speed signals with reliable contact design. They feature robust materials, various termination options, and environmental resilience up to 125°C. Compatible with IEC standards and available in different configurations, their precise design ensures optimal PCB fit and electrical performance, making them ideal for scalable and demanding applications.
Order your Metral Series vertical header and right angle receptacle today and ensure reliable high-density connections for your demanding projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 89047102LF?
You can click on the BUY or RFQ button to purchase 89047102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 89047102LF?
You can download the 89047102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 89047102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
