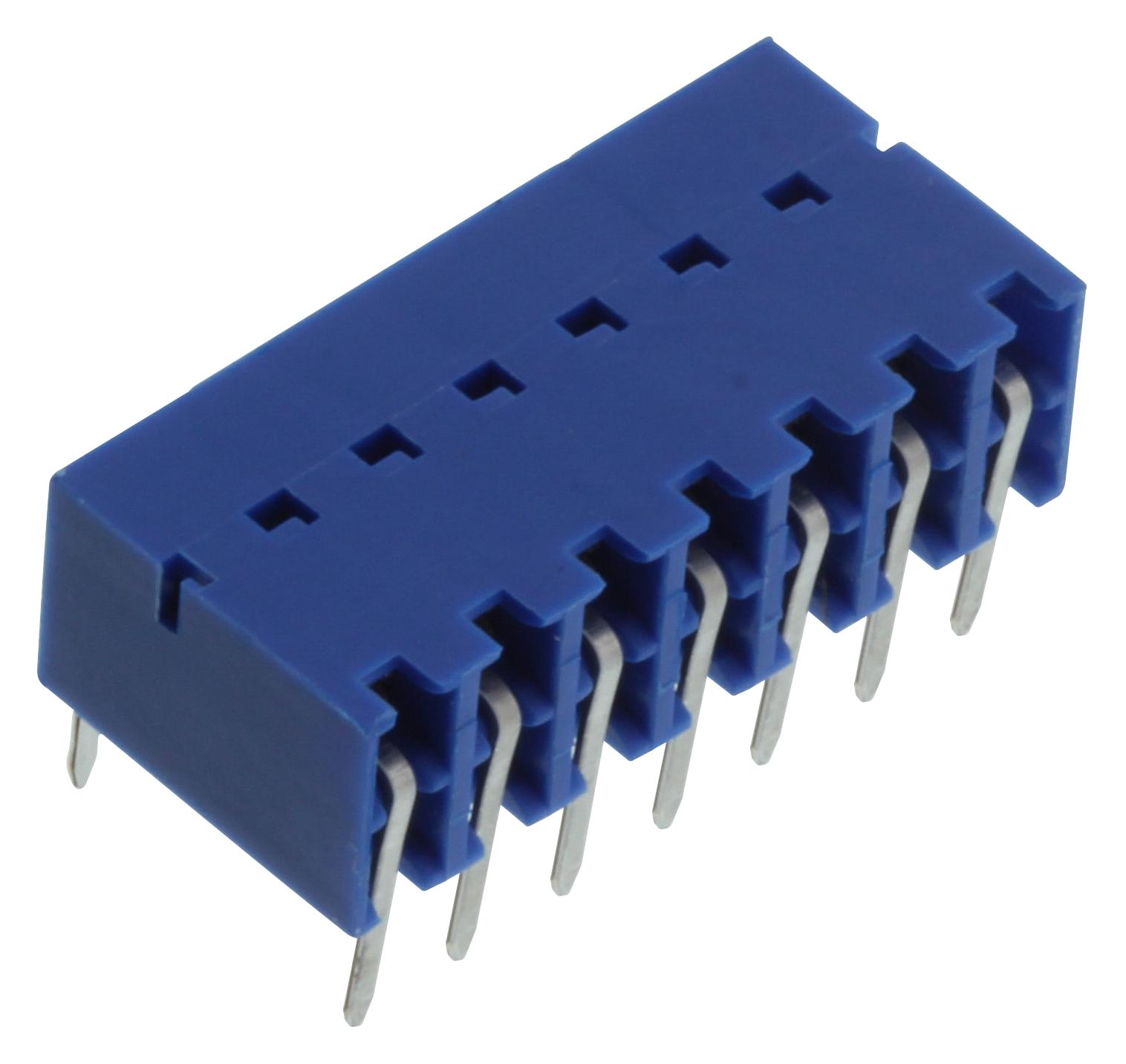

AMPHENOL COMMUNICATIONS SOLUTIONS 89883307LF vertical receptacle
The Part Number 89883307LF is a high-quality vertical receptacle designed for low-profile applications, featuring a glass-filled thermoplastic housing with UL94V-0 flammability rating. It includes phosphor-bronze pins with gold or tin plating over nickel, ensuring reliable electrical performance with a current rating of up to 3A per contact. Its robust construction supports 200 mating cycles and operates within a temperature range from -65°C to +125°C. Ideal for durable, space-efficient connections in complex electronic systems, it provides excellent signal integrity and environmental resistance, suitable for both surface-mount and through-hole mounting configurations.
AMPHENOL COMMUNICATIONS SOLUTIONS 89883307LF vertical receptacle Specifications:
- Housing: Glass filled thermoplastic polyester, blue
- Flammability rating: UL94V-0
- Pin: Phosphor-bronze
- Plating: Gold or tin over 1.27μm nickel
- Current rating: 3A max. per contact
- Insulation resistance: ≥1x10⁶ MΩ
- Contact resistance: ≤15 MΩ initial, ≤20 MΩ after tests
- Dielectric withstanding voltage: 1000V RMS
- Operating temperature: -65°C to +125°C
- Mating cycles: 200
- Insertion force: Max. 1.50 N (gold), min. 0.30 N
- Insertion depth: 3.6mm to 6.7mm (top entry), 6mm (bottom entry)
- Environmental resistance: RoHS compliant
- Mechanical durability: 200 mating cycles
Buy the Buy FCI DUBOX™ Vertical Receptacles Part Number 89883307LF Online
Order the FCI DUBOX™ Part Number 89883307LF online today and ensure your electronic systems benefit from durable, space-efficient, and high-performance connections. This low-profile receptacle features robust construction with a glass-filled thermoplastic housing, gold or tin plating for excellent corrosion resistance, and precise dimensions suitable for surface-mount or through-hole applications. Its high current rating, environmental resistance, and enduring mechanical performance make it the ideal choice for demanding electronic assemblies requiring reliable signal transmission and long cycle life. Buy online now for quick delivery and enhanced connectivity confidence.
Buy FCI 89883307LF vertical low-profile receptacle now and experience unmatched reliability and high signal integrity in space-constrained designs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 89883307LF?
You can click on the BUY or RFQ button to purchase 89883307LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 89883307LF?
You can download the 89883307LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 89883307LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
