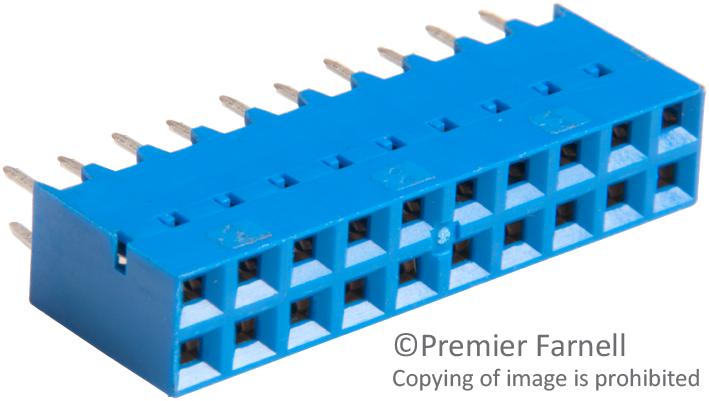

AMPHENOL COMMUNICATIONS SOLUTIONS 87606310LF Board-to-Board Connector
The 87606 series DUBOX Board-to-Board Connector is ideal for industrial, communications, and networking applications. It features dual-beam, pre-stressed contacts for low insertion force and high reliability, with a four-wall contact design for signal integrity. Available in single or double-row configurations, straight or right-angle, supporting 2 to 50 positions. Made from high-temperature thermoplastic with duplex plating for durability, it includes floating solder tails that self-center on PCBs. The connector is compatible with vapor-phase and IR reflow soldering, ensuring robust, easy assembly in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606310LF Board-to-Board Connector Specifications:
- Housing Material: High-temperature thermoplastic
- Flammability Rating: UL94V-0
- Contact Material: Copper alloy
- Plating: Gold or tin over 1.27μm nickel
- Current Rating: 3A per contact
- Insulation Resistance: 50,000 MΩ min.
- Contact Resistance: 15 MΩ max. initial, 20 MΩ after environmental tests
- Dielectric Withstanding Voltage: 800V
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 50 Gold, 25 Tin
- Insertion Force: Max. 450 gf per gold contact, Max. 500 gf per tin contact
- Withdrawal Force: Min. 30 gf
- Insertion Depth: 4.85 mm min.
- Dimensions: Support multiple configurations supporting 2 to 50 positions
- Compatibility: IR and vapor-phase soldering processes
Buy the Buy IndustryLeader DUBOX Board-to-Board Connector Part Number 87606310LF Online
Enhance your electronic assemblies with the high-quality DUBOX Board-to-Board Connector. Designed for industrial control and communication systems, this connector features dual-beam, low insertion force contacts, signal-protective four-wall design, and reliable self-centering solder tails. Constructed from high-temperature plastics and duplex plated for durability, it supports vapor-phase and IR reflow soldering, ensuring fast, secure connections in demanding environments. Ideal for applications requiring high current capacity, multiple configurations, and robust electrical performance in high-temperature ranges.
Buy IndustryLeader 87606310LF now and experience unmatched reliability and high-performance in industrial and networking connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606310LF?
You can click on the BUY or RFQ button to purchase 87606310LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606310LF?
You can download the 87606310LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606310LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
