AMPHENOL COMMUNICATIONS SOLUTIONS 89883308LF board-to-board connector
The product is a low-profile, board-to-board connector featuring a dual-beam contact design for low insertion force and reliable signal integrity. Made from high-temperature thermoplastic with UL94V-0 rating, it supports up to 3A current per contact, with a dielectric withstand voltage of 1000V RMS. Designed for durability, it offers 200 mating cycles, operates within -65°C to +125°C, and is RoHS compliant. Suitable for surface-mount applications, it ensures precise, coplanar connections with easy stackability and signal protection via a 4-wall contact design.
AMPHENOL COMMUNICATIONS SOLUTIONS 89883308LF board-to-board connector Specifications:
- Housing: High-temperature thermoplastic polyester, UL94V-0
- Pin material: Phosphor-bronze
- Plating: Gold or tin over 1.27µm nickel
- Current rating: 3A DC max. per contact
- Dielectric withstanding voltage: 1000V RMS
- Insulation resistance: 1x10⁶Ω min.
- Contact resistance: 15mΩ max. initial, 20mΩ after environmental tests
- Operating temperature: -65°C to +125°C
- Mating cycles: 200
- Insertion force: 1.50 N (gold), 1.50 N (tin)
- Withdrawal force: 0.30 N min.
- Insertion depth: 3.6mm to 6.81mm for top entry, 6mm min. for bottom entry
- Permutation of configurations: Single and double row, top and dual entry, stackable
- Certifications: RoHS, UL94V-0 flammability rating
- Packaging: Plastic boxes, tubes, tape-and-reel options

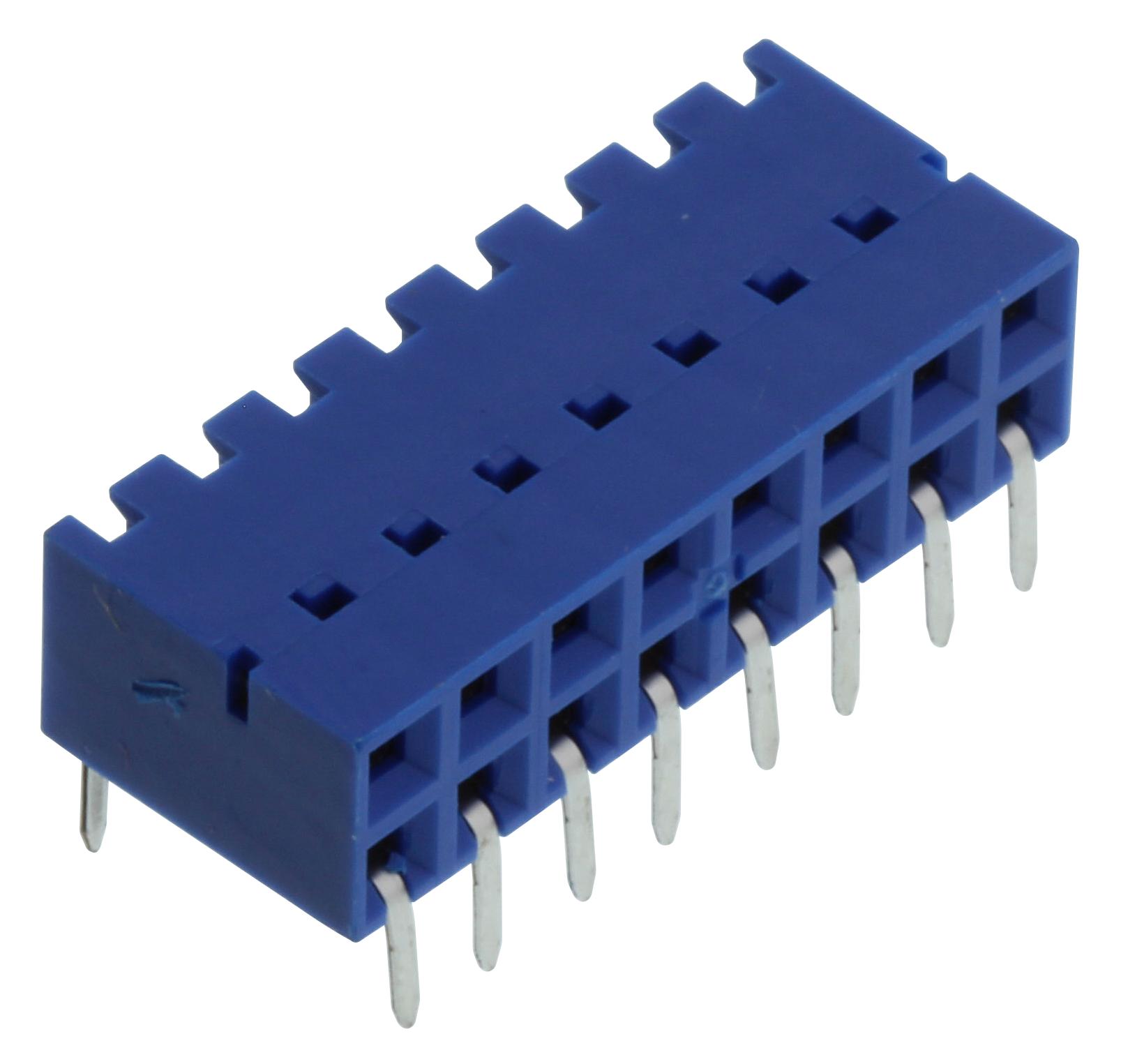

Buy the Buy FCI DUBOX™ Crimp-to-Wire Connectors Part Number 89883308LF Online
Enhance your electronic assembly with the reliable FCI DUBOX™ board-to-board connector, featuring dual-beam contacts for low insertion force, high current capacity, and robust environmental performance, all in a RoHS-compliant, low-profile design suitable for surface mounting and stacking applications. Its durable construction supports up to 200 mating cycles, ensures precise connections with anti-reverse features, and offers easy repairability with removable contacts. Perfect for industrial, automation, or consumer electronics requiring secure, efficient signal transfer with minimal insertion effort.
Order your FCI DUBOX™ Crimp-to-Wire Connectors 89883308LF today and ensure reliable, low-force electronic connections with easy stackability and signal security.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 89883308LF?
You can click on the BUY or RFQ button to purchase 89883308LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 89883308LF?
You can download the 89883308LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 89883308LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
