AMPHENOL COMMUNICATIONS SOLUTIONS 78208106HLF Wire-to-Board Connector System
The PV wire-to-board connector system offers high reliability and durability, connecting discrete wires to printed circuit boards with dual-metal crimp-to-wire technology. Its industry-standard 0.025-inch square posts ensure secure electric connectivity, while optional polarizing and containment features minimize mis-mating and disengagement risks. Suitable for industrial, automotive, medical, data, communications, and aerospace applications, this system includes various series of MINI-LATCH receptacles and shrouded headers, supporting multiple configurations and wire sizes up to 1.52mm diameter. This robust design ensures consistent performance over 1000 mating cycles with high current and voltage ratings.
AMPHENOL COMMUNICATIONS SOLUTIONS 78208106HLF Wire-to-Board Connector System Specifications:
- Contact material: Brass body with beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0 for MINI-LATCH housings, glass-filled nylon UL94V-0 for headers
- Current rating: 3.0A per circuit with 32 AWG wire; de-rated for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ for wire connector, >5000MQ for header
- Contact resistance: <2mQ
- Mating force: 450g (high spring), 100g (ultra-high spring)
- Un-mating force: 75g (high spring), 175g (ultra-high spring)
- Durability: 1000 mating cycles
- Temperature range: -40°C to +105°C
- Wire diameter: Max 1.52mm
- Approvals: URE66906, CSALR46923

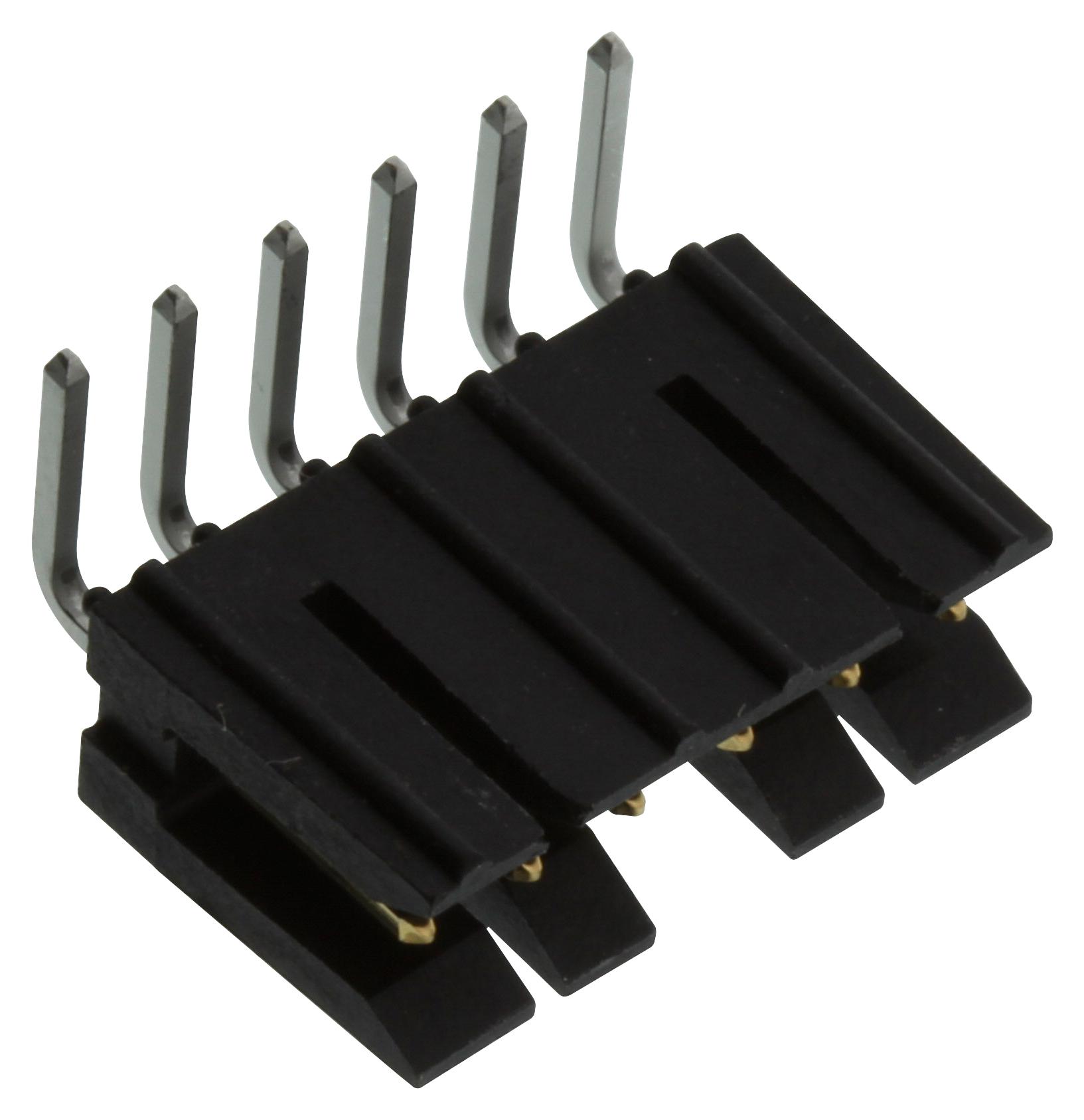

Buy the Buy FCI Wire-to-Board Connector System Part Number 78208106HLF Online
Purchase the FCI PV wire-to-board connector system online to benefit from its high reliability, durability, and versatile configurations. Designed for industrial, automotive, medical, data, and aerospace applications, this connectors’ dual-metal contacts maintain contact pressure over 1000 mating cycles. With pass-through current ratings up to 3A per circuit, insulation resistance exceeding 10,000MQ, and voltage withstand of 1000V RMS, it offers excellent performance. Easy-to-use crimping tools and various series ensure flexible assembly and secure, long-lasting electrical connections for your projects.
Order your FCI Wire-to-Board Connector System 78208106HLF today and ensure reliable, high-performance connections for your industrial and medical projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 78208106HLF?
You can click on the BUY or RFQ button to purchase 78208106HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 78208106HLF?
You can download the 78208106HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 78208106HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
