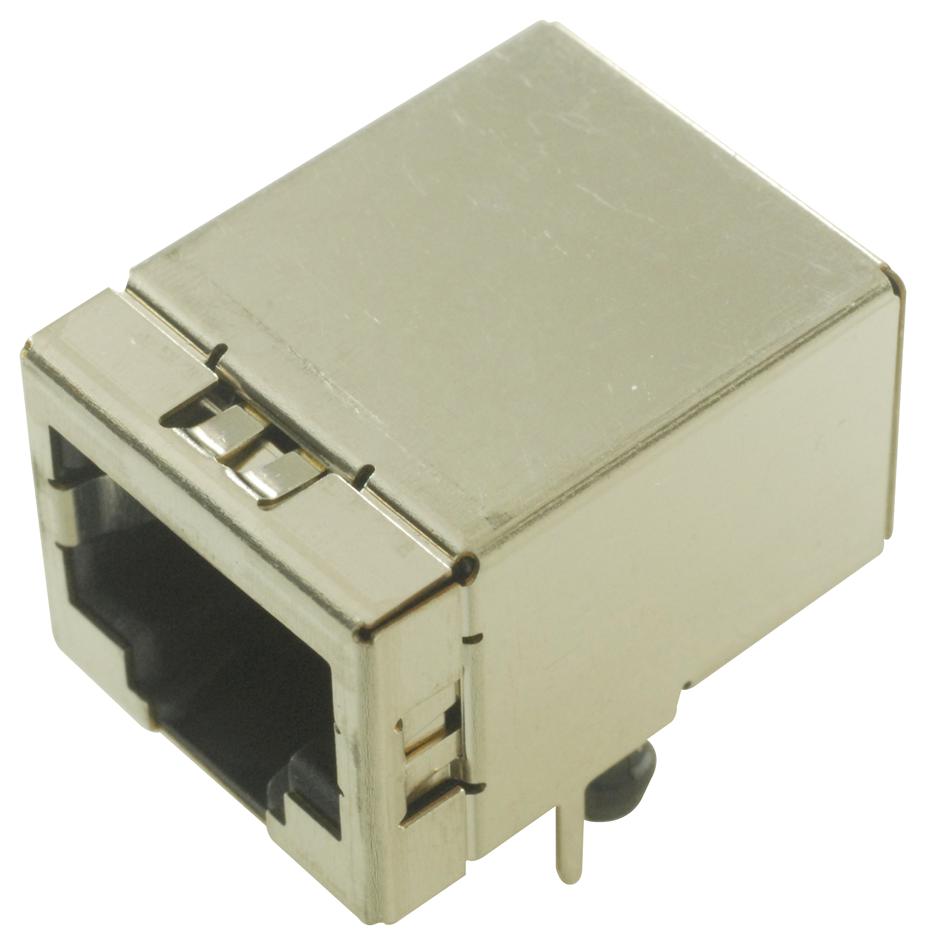

AMPHENOL COMMUNICATIONS SOLUTIONS 95678001LF RJ45 Modular Jack
The 95678-001LF is a CAT-5 8P8C RJ45 modular jack socket with gold-plated phosphor bronze contacts and a high-temperature resin housing. It withstands peak temperatures of 260°C for 15 seconds during wave soldering, suitable for environments requiring reliable, durable connections on minimal 1.5mm thick circuit boards. Featuring a brass alloy shield, it ensures effective electromagnetic interference (EMI) protection. Designed for industrial and networking applications, this modular jack offers high performance, excellent durability, and compliance with safety standards, making it ideal for telecom, data networking, and industrial system integrations.
AMPHENOL COMMUNICATIONS SOLUTIONS 95678001LF RJ45 Modular Jack Specifications:
- Number of Positions: 8P8C
- Contact Material: Phosphor bronze with gold plating
- Housing Material: High-temperature resin, flame retardant
- Peak Soldering Temperature: 260°C for 15 seconds
- Circuit Board Thickness Compatibility: Minimum 1.5 mm
- Shielding: Brass alloy shield for EMI protection
- Current Rating: 3A continuous
- Insulation Resistance: 500 MΩ minimum
- Dielectric Withstanding Voltage: 1500V minimum
- Operating Temperature Range: -65°C to 125°C
- Flammability Rating: UL94V-0
- Mechanical Durability: 250 to 2500 cycles
Buy the Buy FCI Modular Jack CONNECTORS Part Number 95678001LF Online
Enhance your networking and industrial applications with the FCI RJ45 Modular Jack, featuring gold-plated contacts, high-temperature resin housing, and effective EMI shielding. This connector withstands peak wave soldering temperatures of 260°C for 15 seconds, ensuring durability and reliable performance in demanding environments. Suitable for circuit boards at least 1.5mm thick, it guarantees fast, secure connections for telecom, data networking, and industrial systems. Purchase online today to equip your equipment with high-quality, compliant modular jacks that deliver long-lasting, interference-free connectivity.
Order your FCI Series95678 LF industrial-grade CAT-5 RJ45 modular jack today and ensure robust, reliable networking connections for your telecom and data projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 95678001LF?
You can click on the BUY or RFQ button to purchase 95678001LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 95678001LF?
You can download the 95678001LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 95678001LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
