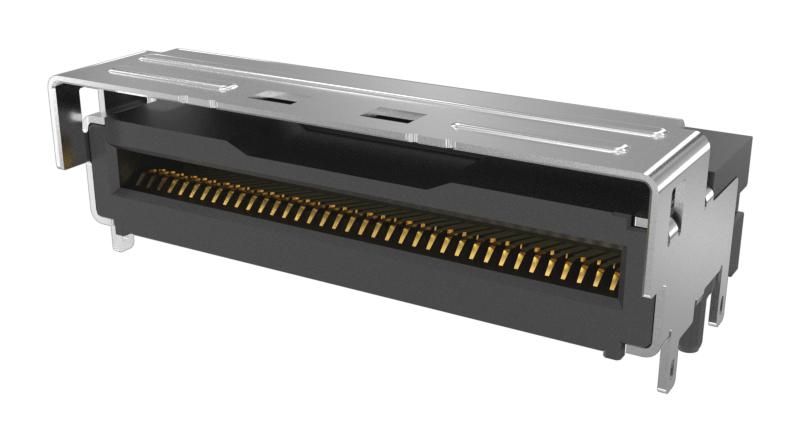

AMPHENOL COMMUNICATIONS SOLUTIONS G42R12312HR Mini Cool Edge Connector
The G42R12312HR is a 0.60mm pitch Mini Cool Edge I/O connector featuring a slim form factor designed for high-speed signal transmission. It supports PCIe® Gen 4 and allows for extended signal path lengths while maintaining signal integrity compared to traditional PCB routing. This versatile connector accommodates both cable and card edge applications in a right-angle configuration, with a high-temperature thermoplastic housing and gold-plated copper alloy contacts for reliable connectivity. Suitable for high-performance data centers, networking, and high-end computing systems, it is UL certified and supports up to 250 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS G42R12312HR Mini Cool Edge Connector Specifications:
- Pitch: 0.60mm
- Supports high-speed signals up to 56Gb/s PAM4, PCIe Gen 4/5
- Transmission distance: over 1 meter
- Housing Material: High-temperature thermoplastic (UL 94V-0)
- Contact Material: Copper alloy with gold over nickel finish
- Electrical Performance: Contact Resistance 30mΩ max., Dielectric Withstanding Voltage 300V DC
- Mechanical Durability: 250 mating cycles
- Operating Temperature Range: -55°C to +105°C
- Mating Force: 0.6N/pin max., Unmating Force: 0.06N/pin min.
- Certification: UL Listed
- Supported Applications: Data centers, networking, server systems
Buy the Buy Amphenol Mini Cool Edge 10 Connector Part Number G42R12312HR Online
Discover the Mini Cool Edge connector designed for high-speed data transmission in compact systems. Supporting PCIe Gen 4/5, it offers extended signal paths, high durability, and superior signal integrity. Its slim design fits seamlessly into data centers, servers, and networking equipment, reducing system complexity and costs. Made from high-temperature thermoplastic with gold-plated contacts, it ensures reliable performance over many mating cycles. Easily available online, it is a perfect choice for engineers seeking scalable, modular interconnect solutions for demanding applications.
Buy Amphenol G42R12312HR now and experience high-speed, reliable connectivity for modern data center and networking applications.
