AMPHENOL COMMUNICATIONS SOLUTIONS BPS8B96ACD200Z1LF Wire Connector
This high-quality connector is suitable for crimping 24/26 AWG wires, featuring a corrosion-resistant gold over nickel contact finish for reliable electrical performance. It complies with RoHS and EU directives, ensuring lead-free design for environmental safety. The connector operates at a voltage rating of 250 VAC with a current capacity of 1.5 A at 25°C, and features an insulation resistance of 1000 MΩ initially. Made with glass-reinforced thermoplastic body and phosphor bronze contacts, it has a temperature range from -40°C to +125°C. Insertion and withdrawal forces are 1 N and 0.2 N respectively, with a dielectric withstand voltage of 1000 VAC. It meets DIN41612 standards, with optional tie-wrapping for secure mounting.
AMPHENOL COMMUNICATIONS SOLUTIONS BPS8B96ACD200Z1LF Wire Connector Specifications:
- Voltage Rating: 250 VAC (rms)
- Current Rating: 1.5 A at 25°C, 1 A at 70°C
- Insulation Resistance: 1000 MΩ initial, 100 MΩ after test
- Dielectric Withstanding Voltage: 1000 VAC (rms)
- Max Operating Temperature: -40°C to +125°C
- Contact Resistance: Max 15 mΩ initial, Max 5 mΩ after test
- Insertion Force: Max 1 N per contact
- Withdrawal Force: Min 0.2 N per contact
- Body Material: Glass-reinforced thermoplastic (UL94V-0)
- Contact Material: Phosphor bronze
- Contact Finish: Au over Ni
- Wire Accommodation: AWG24/26
- Performance Level: DIN41612 Class 3
- Lead-Free: Yes, RoHS compliant

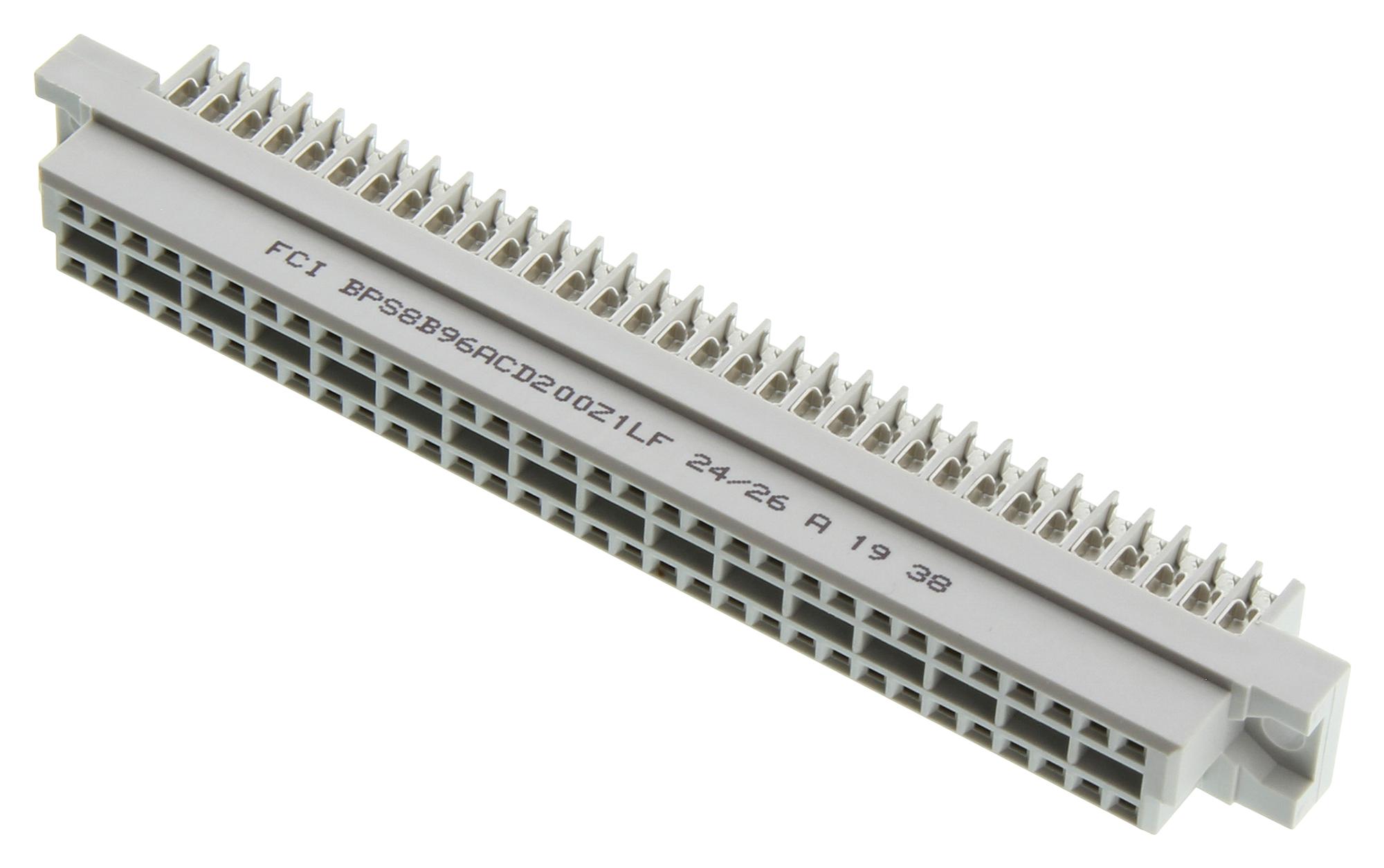

Buy the Buy FCI Connector Part Number BPS8B96ACD200Z1LF Online
Purchase the FCI wire connector BPS8B96ACD200Z1LF easily online and benefit from a durable, RoHS-compliant component designed for reliable electrical connections in various industrial and electronic applications. Equipped with gold over nickel contact finishes, it supports high voltage and current ratings, withstanding harsh temperatures from -40°C to +125°C. The connector's sturdy glass-reinforced thermoplastic body and phosphor bronze contacts ensure longevity and stable performance. Order now for fast delivery and secure your project's wiring needs effortlessly.
Order your FCI BPS8B96ACD200Z1LF connector today and ensure reliable wiring connections with high-performance features suitable for industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS BPS8B96ACD200Z1LF?
You can click on the BUY or RFQ button to purchase BPS8B96ACD200Z1LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part BPS8B96ACD200Z1LF?
You can download the BPS8B96ACD200Z1LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of BPS8B96ACD200Z1LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
