AMPHENOL COMMUNICATIONS SOLUTIONS CEE016400140111 High-Speed PCIe Connector
The Cool Edge 1.00mm PCIe Connectors offer high-speed, space-efficient board-to-board connectivity supporting PCIe 4.0 and 5.0 standards with speeds up to 32GT/s. Designed with a slim profile, these connectors save valuable motherboard space and feature conductive plastic for improved signal integrity. They accommodate 16, 32, and 64-pin configurations, support up to 1.60mm thick motherboards, and are ideal for high-performance networking, server, and GPU applications. Durable for 200 mating cycles, they ensure reliable electrical performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS CEE016400140111 High-Speed PCIe Connector Specifications:
- Signal pin pitch: 1.00mm based on PCIe interface
- Current rating: 1.1A per power pin, 0.7A per signal pin
- Supports speeds up to 32GT/s
- Supports PCIe x8, x16, and x24 slots
- Housing: High temperature thermoplastic (UL 94V-0)
- Material: Copper alloy with gold over nickel contact finish, tin over nickel solder area
- Contact resistance: Max 30mΩ, Max 10mΩ change after test
- Dielectric Withstanding Voltage: 500V
- Durability: 200 mating cycles
- Mating force: Max 0.6N per pin, unmating force: Min 0.06N per pin
- Operating temperature: -55°C to +85°C, tested per EIA standards
- Dimensions: Height 9.60mm, width 5.80mm, length 95mm
- Supports 1.60mm thick boards
- Packaging: Tray
- Supports short solder tail and with latch options for 164-pin version

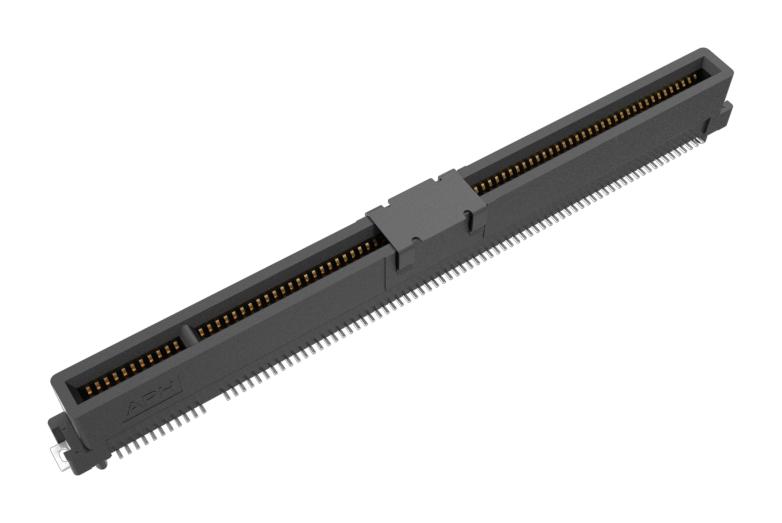

Buy the Amphenol CEE016400140111 – Reliable PCIe Connectors for Industrial Applications
Purchase the Amphenol Series CEE016400140111 PCIe connector online today and ensure your systems benefit from fast, reliable, space-saving board-to-board connections capable of supporting up to 32GT/s. Designed for high-end computing, networking, and server applications, this connector offers excellent signal integrity and durability with 200 mating cycles. Its slim profile makes it ideal for dense PCB designs, while the conductive plastic enhances electrical performance. Easy AOI inspection ensures quality and reliability for demanding industrial projects.
Order your Amphenol Series CEE016400140111 high-speed PCIe connector today and enhance your high-performance computing projects with dependable connectivity.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS CEE016400140111?
You can click on the BUY or RFQ button to purchase CEE016400140111 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part CEE016400140111?
You can download the CEE016400140111 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of CEE016400140111?
AMPHENOL COMMUNICATIONS SOLUTIONS
