AMPHENOL COMMUNICATIONS SOLUTIONS RJCSE538101 Ethernet Modular Jack
The RJCSE surface mount modular jack series by Amphenol offers high performance Ethernet connectivity with optional shielding and LED indicators for link activity and network speed verification. Designed for versatile applications in consumer electronics, networking, telecom, and industrial equipment, these connectors support reliable signal transmission, EMI shielding, and durable reflow soldering. With a robust design, they withstand numerous mating cycles and operate efficiently from -55°C to +85°C, ensuring optimal performance in demanding environments. Ideal for network servers, security systems, and home automation, these jacks provide dependable connectivity solutions.
AMPHENOL COMMUNICATIONS SOLUTIONS RJCSE538101 Ethernet Modular Jack Specifications:
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 500 MΩ minimum at 500V DC for 2 minutes
- Current Rating: 1.5 Amps
- Voltage Rating: 125 Volts AC, 1000 VAC for telecom
- LED Forward Voltage: 1.9V max. @ 2mA; 2.6V max. @ 20mA
- Operating Temperature: -55°C to +85°C
- Durability: 750 mating & unmating cycles
- Connection Style: Surface mount
- Insertion Force: 5.0 lbs maximum
- Pull Retention Force: 20 lbs minimum
- Mating Connector Mount: Standard shield with LED or light pipe options
- Material: High temp thermoplastic, phosphor bronze with gold flash plating
- RoHS Compliant: Yes

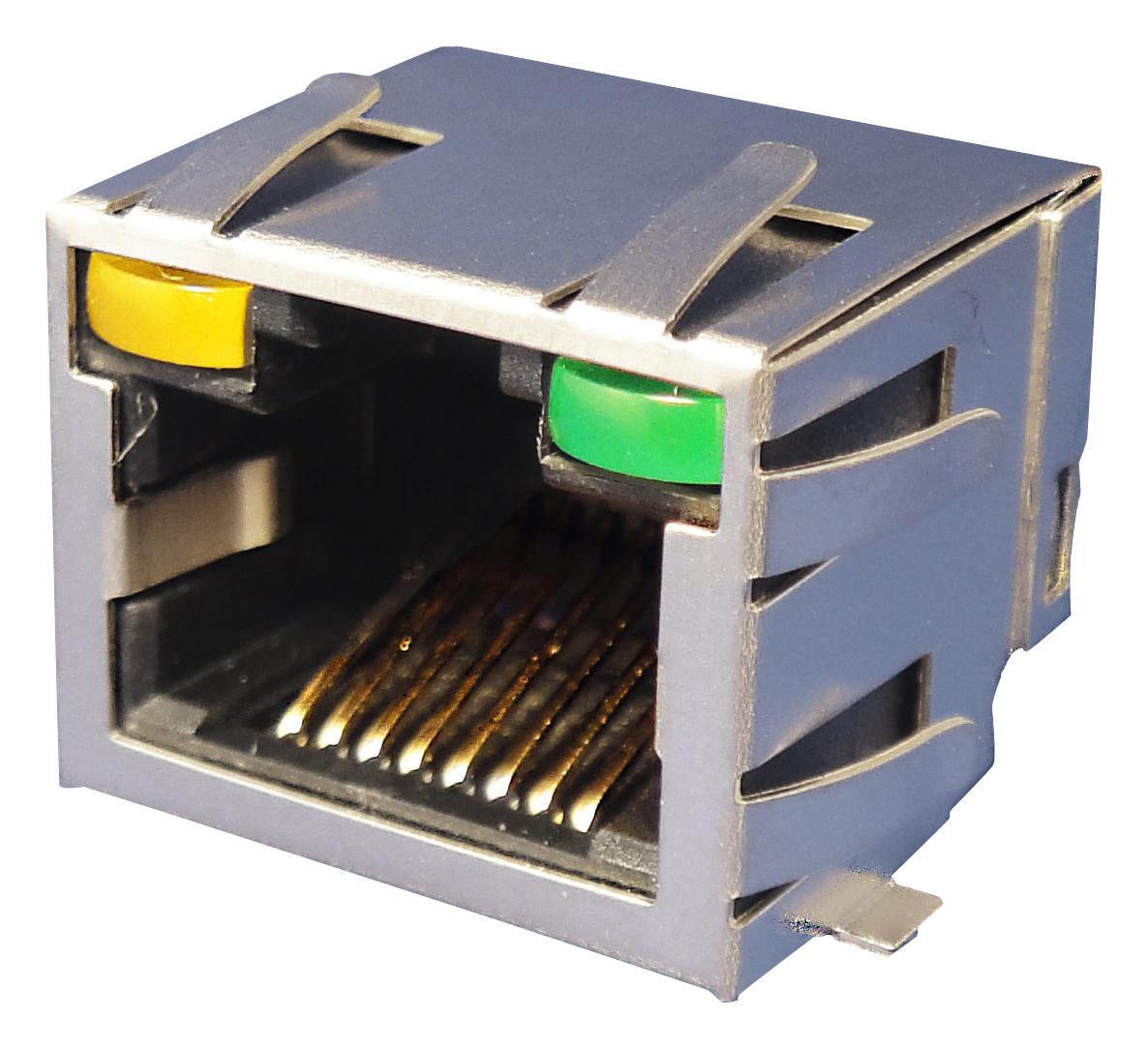

Buy the Amphenol Series RJCSE Ethernet Modular Jack: RJCSE538101
Enhance your networking setup with the Amphenol Ethernet Modular Jack from the RJCSE series. Designed for high durability and EMI shielding, this surface mount connector features optional LEDs for link and speed indication, supporting extensive mating cycles and a wide temperature range. Its robust construction ensures consistent performance for consumer electronics, industrial equipment, and network infrastructure. Easy to install, RoHS compliant, and compatible with various configurations, this jack is ideal for reliable data transmission in demanding environments, delivering efficiency and peace of mind for your projects.
Buy Amphenol RJCSE538101 now and experience unmatched reliability and performance in high-speed network applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJCSE538101?
You can click on the BUY or RFQ button to purchase RJCSE538101 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJCSE538101?
You can download the RJCSE538101 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJCSE538101?
AMPHENOL COMMUNICATIONS SOLUTIONS
