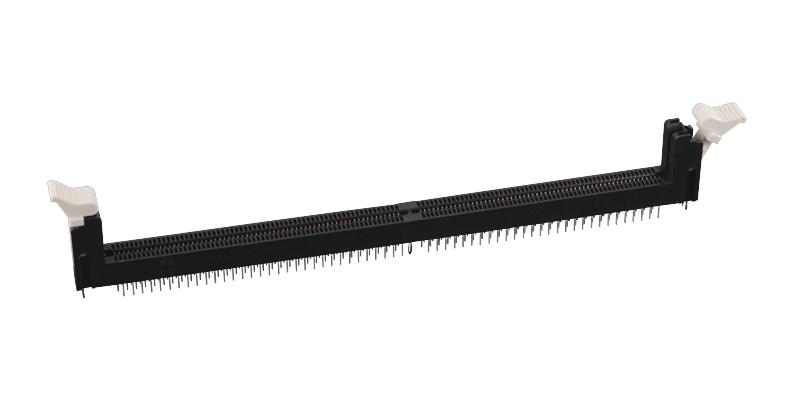

AMPHENOL COMMUNICATIONS SOLUTIONS DDR502112001K DDR5 Memory Module Socket
Amphenol ICC's DDR5 memory module sockets (SMT) feature 288 contacts on a 0.85mm pitch, designed for JEDEC MO-329 compliant modules. These sockets support high-speed data transfer with low insertion force, enabling efficient memory expansion in servers, workstations, and industrial equipment. Made with high-quality copper alloy contacts with gold or tin plating, they withstand mechanical shocks and vibrations, ensuring durability. Their compact design optimizes airflow and saves board space, facilitating easy module insertion and extraction for reliable industrial and communication applications.
AMPHENOL COMMUNICATIONS SOLUTIONS DDR502112001K DDR5 Memory Module Socket Specifications:
- Contacts: Copper alloy, Gold flash or 15-30 pin min. gold plating, Tin or matte tin plating (Solder Area), Nickel plating (Underplate)
- Insulator: High-temperature thermal plastic (UL94V-0), multiple color options
- Boardlock: Copper alloy, Tin plating, Nickel overall
- Voltage Rating: 30V AC/DC
- Current Rating: 0.7 Amps/pin max.
- Insertion Force: 106.8N max.
- Withdrawal Force: 19.77N min.
- Retention Force: Contact 300gf min., Boardlock 13.3N min.
- Durability: 25 cycles under vibration and shock conditions
- Latch Force: Fully actuate at maximum 4.5kgf, module rip-out force min. 9.1kgf, no damage upon reseating
- Environmental resistance: Solderability ≥95%, thermal shock, humidity, salt spray, temperature rise ≤30°C
- Compliance: UL 66906, JEDEC MO-329 outline, JEDEC SO-023 outline
Buy the Amphenol DDR502116 – Reliable DDR5 Memory Module Sockets for Industrial Applications
Purchase the DDR5 Memory Module Socket from Amphenol ICC online today to ensure high-speed data capabilities, robust mechanical performance, and easy installation. Designed for industrial, server, and computing environments, this socket provides exceptional durability, low insertion force, and excellent environmental resistance. With its compact, high-density design, it optimizes airflow and saves valuable board space, making it perfect for advanced communication equipment, workstations, and high-performance servers. Order now for reliable connectivity and seamless memory expansion in demanding applications.
Buy Amphenol DDR502112001K now and enjoy dependable DDR5 memory socket solutions with easy module insertion, high durability, and optimized airflow for industrial and server systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS DDR502112001K?
You can click on the BUY or RFQ button to purchase DDR502112001K from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part DDR502112001K?
You can download the DDR502112001K datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of DDR502112001K?
AMPHENOL COMMUNICATIONS SOLUTIONS
