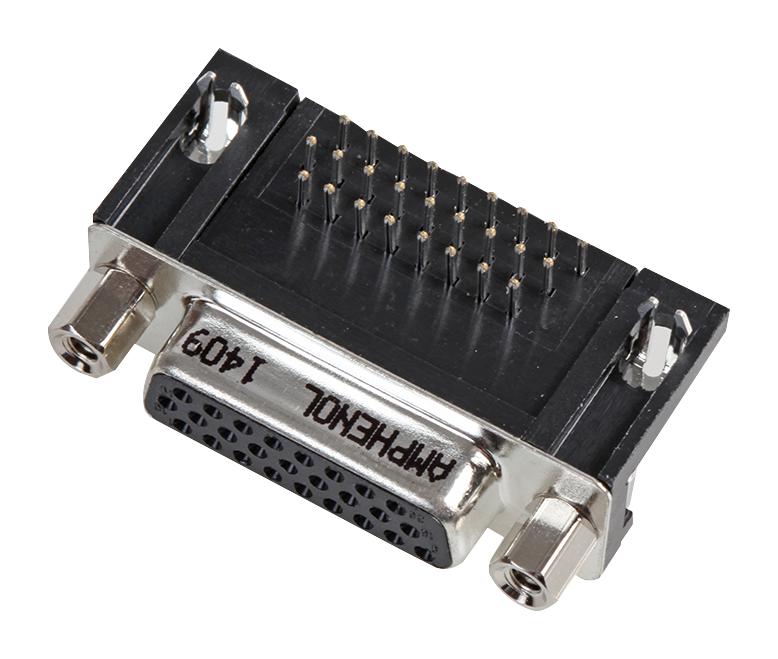

AMPHENOL COMMUNICATIONS SOLUTIONS L77HDA26SD1CH4F High Density D-Sub Connector
Amphenol's high density D-Sub connectors offer superior signal density and reliability, featuring gold-plated contacts, steel shells, and thermoplastic insulators. Ideal for industrial, telecom, and various industry-standard I/O applications, these right-angle PCB mount connectors are engineered for low-cost installation and high performance. Designed according to MIL C24308 standards, they support high current ratings of 3A and voltage up to 250V AC. They excel in environments demanding durability against salt spray, operating from -55°C to +125°C, with various mounting options including screwlock and rear insert designs, making them suitable for demanding electronic and communication systems.
AMPHENOL COMMUNICATIONS SOLUTIONS L77HDA26SD1CH4F High Density D-Sub Connector Specifications:
- Shell Material: Steel, tin over nickel plating
- Insulator Material: Glass-filled thermoplastic, UL 94V-0
- Contact Material: Brass with gold plating in mating area; phosphor bronze with gold plating in mating area; tin on termination area
- Current Rating: 3A
- Voltage Rating: 250V AC rms 50Hz
- Withstanding Voltage: 1000V AC rms for one minute
- Insulation Resistance: 5000MQ at 500V DC
- Contact Resistance: 10mQ max
- Operating Temperature: -55°C to +125°C
- Salt Spray Resistance: 24 hours
- Single Contact Insertion Force: 0.34kg (0.75lb) max.
- Single Contact Withdrawal Force: 0.02kg (0.044lb) min.
- Mating and Unmating Force: Refer to dimensions
- Gold Plating Thickness: 0.4um (15p) or 0.76um (30p)
- Connection Density: Supports 15, 26, 44, 62 pins
- Dimensions: Refer to detailed shell size chart
- RoHS Compliance: Yes
- Mounting Options: Front screwlock, rear insert, PCB mounting, panel mounting
Buy the Buy Amphenol High Density D-Sub Part Number L77HDA26SD1CH4F Online
Experience the reliability of Amphenol's high density D-Sub connectors, designed for industrial, telecom, and industry-standard I/O applications. Featuring gold-plated contacts for excellent signal integrity, steel shells, and thermoplastic insulators, these connectors support high current and voltage ratings suitable for demanding environments. Easy to mount with screwlock or rear insert options, they are resistant to salt spray and operate across a wide temperature range from -55°C to +125°C. Upgrade your electronic systems with these durable, cost-effective high-density interconnect solutions available online.
Buy Amphenol high density D-Sub connector L77HDA26SD1CH4F now and ensure reliable, high-performance connections for your industrial or telecom systems.
