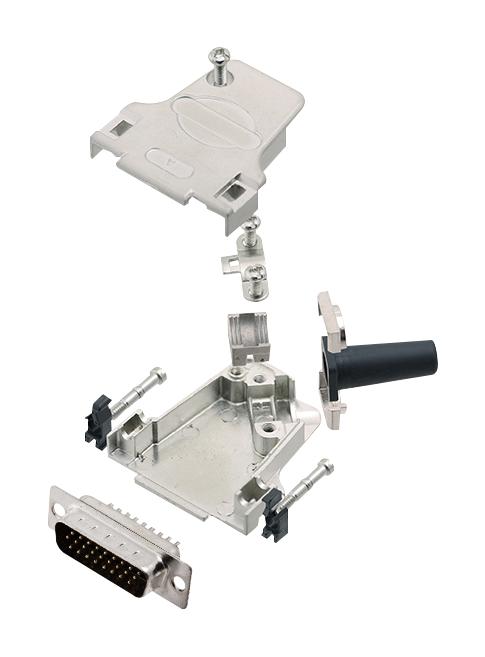

AMPHENOL COMMUNICATIONS SOLUTIONS L17D45ZF15RGL717HDA26P High Density D-Sub Connector
The high-density D-Sub solder cup connector offers reliable EMI shielding and excellent durability for professional electronic and communication applications. Constructed with zinc material, nickel plating, and gold flash contact plating, it ensures excellent electrical conductivity and resistance to environmental factors. The insulator is UL94 V-0 rated and made of glass-filled thermoplastic, with steel shell and copper alloy pins. Suitable for various sizes, it supports wire ranges up to 12.5mm depending on the configuration, operates within -55°C to +85°C, and withstands over 1000V RMS, making it ideal for demanding industrial environments.
AMPHENOL COMMUNICATIONS SOLUTIONS L17D45ZF15RGL717HDA26P High Density D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Side Entry
- Thumbscrews: UNC 4-40 (Standard)
- Cable O.D: Up to 6.5mm with grommet, 9.5mm without grommet for 9-way; up to 6.5mm with grommet, 12.5mm without grommet for 15-way; up to 8.0mm with grommet, 12.5mm without grommet for 25-way; up to 9.0mm with grommet, 15.0mm without grommet for 37-way
- Insulator: Glass filled thermoplastic, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Copper Alloy
- Contact Plating: Gold flash over Nickel
- Interchangeable sizes: HD15, HD26, HD44, HD62
- Operating Temperature (Contacts): -55°C to +85°C
- Withstanding Voltage: >1000V RMS at 50Hz for 1 minute
- Current Rating: 3A
- Insulator Resistance: >5000MO min.
- Features: EMI shielding, re-openable, spring-clip mounted jack screws
- Dimensions (varies by size): HD15 (31.6x39.5x15.2mm), HD26 (40.0x41.0x15.2mm), HD44 (53.7x47.5x15.2mm), HD62 (70.2x48.0x15.2mm)
Buy the Amphenol Series High-Density D-Sub: L17D45ZF15RGL717HDA26P
Secure your electronic assemblies with the high-density D-Sub solder cup connector, offering excellent EMI shielding, corrosion resistance, and robust construction. Designed with gold-flash contacts over nickel for superior electrical performance, it handles voltages over 1000V RMS and supports wire sizes up to 12.5mm. Ideal for industrial, communication, and sensitive electronic environments, this connector is easy to assemble with side entry cable design and spring-clip mounted jack screws, providing durable and reliable connections in demanding conditions.
Order your Amphenol Series High-Density D-Sub solder cup connector today and ensure reliable, EMI-shielded electrical connections for your industrial projects.
