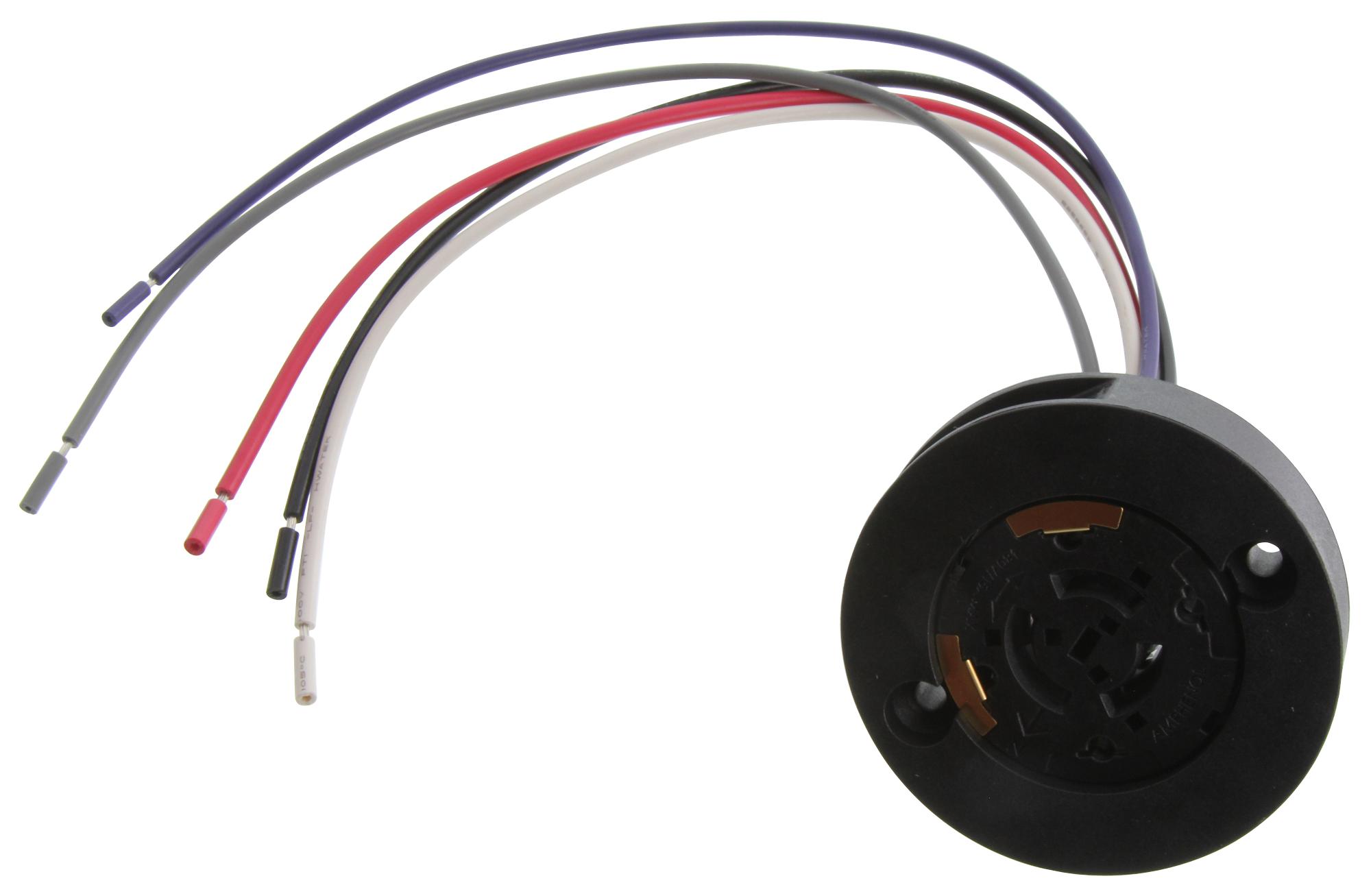

AMPHENOL COMMUNICATIONS SOLUTIONS FLAR216130 Dimming Receptacle
The FLA series dimming receptacle is designed for outdoor street and area lighting applications, compliant with ANSI C136-41 standards. It features robust build quality with multiple contact configurations, including options with 3 power contacts and 2 or 4 dimming contacts, suitable for dimmable photocells. The connectors support 15A current per circuit at 600 VAC/VDC, ensuring reliable operation in harsh environments. Made from high-temperature thermoplastic and plated contacts, it offers excellent electrical performance, durability, and resistance to environmental stress, making it ideal for street lighting, modernization, and control systems.
AMPHENOL COMMUNICATIONS SOLUTIONS FLAR216130 Dimming Receptacle Specifications:
- Current Rating: 15A max per circuit at 25°C, 30°C max at rated current
- Voltage Rating: 600 VAC / VDC for power contacts, 30 VDC for dimming contacts
- Contact Resistance: 430mΩ max
- Insulation Resistance: 500 MΩ min @ 500 VDC
- Dielectric Withstanding Voltage: 2500 VAC
- Operating Temperature: -40°C to +105°C
- Material: Housing - High-temp thermoplastic, contacts - Phosphor Bronze with gold over nickel plating
- Mechanical Shock: 30 G's, 11 ms
- Vibration: 15 A load, per EIA-364-28
- Salt Spray Resistance: 240 hours per EIA-364-26
- Durability: 25 cycles per EIA-364-09
- Assembly Torque: 1-2 Nm (8.8-17.6 lb in.)
- RoHS Compliant
- Cooling and environmental ratings suitable for outdoor use, life span suitable for streetlight installations
Buy the Amphenol FLAR216130 – Reliable Dimming Receptacle for Industrial Applications
Enhance your outdoor lighting setup with the durable and reliable Dimming Receptacle. Designed to meet ANSI C136-41 standards, it features multiple contact options, superior insulation, and high-temperature thermoplastic housing. Perfect for street and area lighting, it supports 15A currents at 600 VAC/VDC, ensuring long-lasting performance in demanding environments. Easy to install with recommended torque, and RoHS compliant, this receptacle offers excellent electrical performance, environmental resistance, and flexibility for modern control systems. Purchase online today for a dependable lighting solution.
Buy Amphenol FLAR216130 now and experience unmatched reliability and performance in outdoor lighting systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS FLAR216130?
You can click on the BUY or RFQ button to purchase FLAR216130 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part FLAR216130?
You can download the FLAR216130 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of FLAR216130?
AMPHENOL COMMUNICATIONS SOLUTIONS
