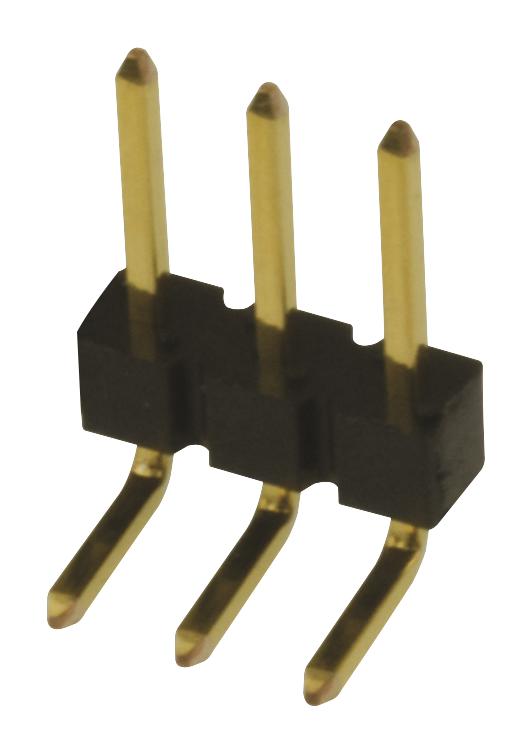

AMPHENOL COMMUNICATIONS SOLUTIONS 68016403HLF 2.54mm unshrouded headers
The BergStik 2.54mm unshrouded headers are versatile connectors designed for various mounting options including surface-mount, through-hole, and stacking configurations. They feature high-temperature thermoplastic housing with UL94V-0 flammability rating, phosphor-bronze pins plated with gold or tin over nickel, and are suitable for modern electronic applications requiring reliable connections and reflow compatibility. These headers support up to 100 mating cycles, have a maximum current of 3A per contact, and are compatible with wave, vapor-phase, and IR reflow soldering processes, ensuring durable and flexible interconnect solutions in industrial and automotive markets.
AMPHENOL COMMUNICATIONS SOLUTIONS 68016403HLF 2.54mm unshrouded headers Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Pin Material: Phosphor-bronze
- Plating Options: Gold or Tin over 1.27m Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retention Force: 9N min.
- Compatible with wave, vapor-phase, and IR reflow soldering
- RoHS compliant according to EU Directive 2002/95/IEC
- Available in singles and doubles rows, with optional stacking and pin-in-paste features
Buy the Buy FCI BergStik 2.54mm Unshrouded Headers Part Number 68016403HLF Online
Secure your electronic connections with FCI BergStik 2.54mm unshrouded headers, offering versatile mounting options including SMT, THT, and stacking. Designed for high-temperature applications, these headers support up to 100 mating cycles and are compatible with wave, vapor-phase, and IR reflow soldering processes, ensuring durability and flexibility. They feature RoHS compliance and options for gold or tin plating over nickel, providing excellent electrical performance and mechanical strength. Ideal for industrial, automotive, and consumer electronics, order now for reliable interconnect solutions.
Buy FCI BergStik 68016403HLF now and experience unmatched reliability and performance for your PCB assembly needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68016403HLF?
You can click on the BUY or RFQ button to purchase 68016403HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68016403HLF?
You can download the 68016403HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68016403HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
