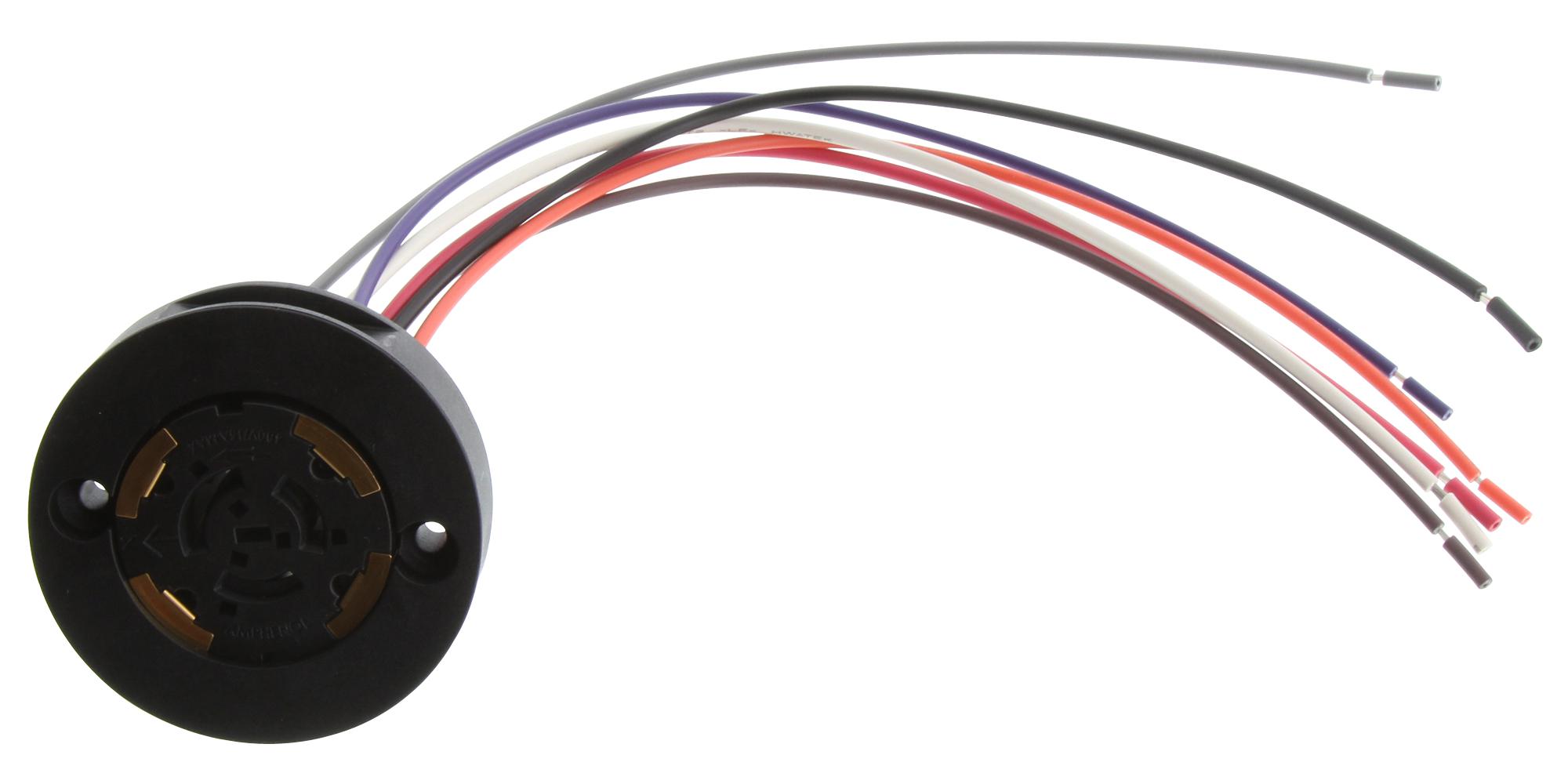

AMPHENOL COMMUNICATIONS SOLUTIONS FLAR416230 Dimming Receptacle
This ANSI C136-41 compliant dimming receptacle is designed for outdoor lighting applications like roadway and area lighting. It features locking type design compatible with external dimmable photocells, supporting 15A max current per circuit at 25°C. Rated for 600 VAC/VDC, it includes both power and dimming contacts, with materials like phosphor bronze with gold over nickel plating for durability. The thermoplastic housing is UL94V-0 rated, ensuring safety and high-temperature performance between -40°C and +105°C. Suitable for use in harsh environments, it offers reliable electrical and mechanical properties, including dielectric withstand voltage and resistance to vibration and humidity.
AMPHENOL COMMUNICATIONS SOLUTIONS FLAR416230 Dimming Receptacle Specifications:
- Rated Current: 15A max per circuit at 25°C
- Voltage Rating: 600 VAC / VDC
- Dimming Contact Voltage Rating: 30 VDC
- Contact Resistance: 430 milliohms max
- Insulation Resistance: 500 megaohms min @ 500 VDC
- Dielectric Withstanding Voltage: 2500 VAC
- Operating Temperature: -40°C to +105°C
- Durability: 25 cycles per EIA-364-09
- Vibration with Load: 15 A load per EIA-364-28
- Salt Spray Resistance: 240 hours per EIA-364-26
- Material: High-temperature thermoplastic, UL94V-0 rated
- Housing Color: Black
- Assembly Torque: 1 to 2 Nm
- RoHS Compliant: Yes
- Contact Material: Phosphor Bronze with 0.76 μm gold over 1.27 μm nickel.
- Housing Material: UL94V-0 thermoplastic
Buy the Amphenol FLA – Reliable Dimming Receptacle for Outdoor Lighting Applications
Purchase the Amphenol FLA ANSI C136-41 dimming receptacle online today and enhance your outdoor lighting setup. Designed for roadway and area lighting, it features locking compatibility with external dimmable photocells. With a 15A rating, 600 VAC/VDC support, and high-temperature thermoplastic housing, it ensures reliable performance in harsh environments. Easy to install with recommended torque of 1-2 Nm, this locking receptacle provides durable, safe, and efficient electrical connections for street and area lighting systems, ensuring long-term operational reliability and compliance with industry standards.
Get Amphenol FLA dimming receptacle today—built with durable thermoplastic housing and high-current capacity for outdoor lighting systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS FLAR416230?
You can click on the BUY or RFQ button to purchase FLAR416230 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part FLAR416230?
You can download the FLAR416230 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of FLAR416230?
AMPHENOL COMMUNICATIONS SOLUTIONS
