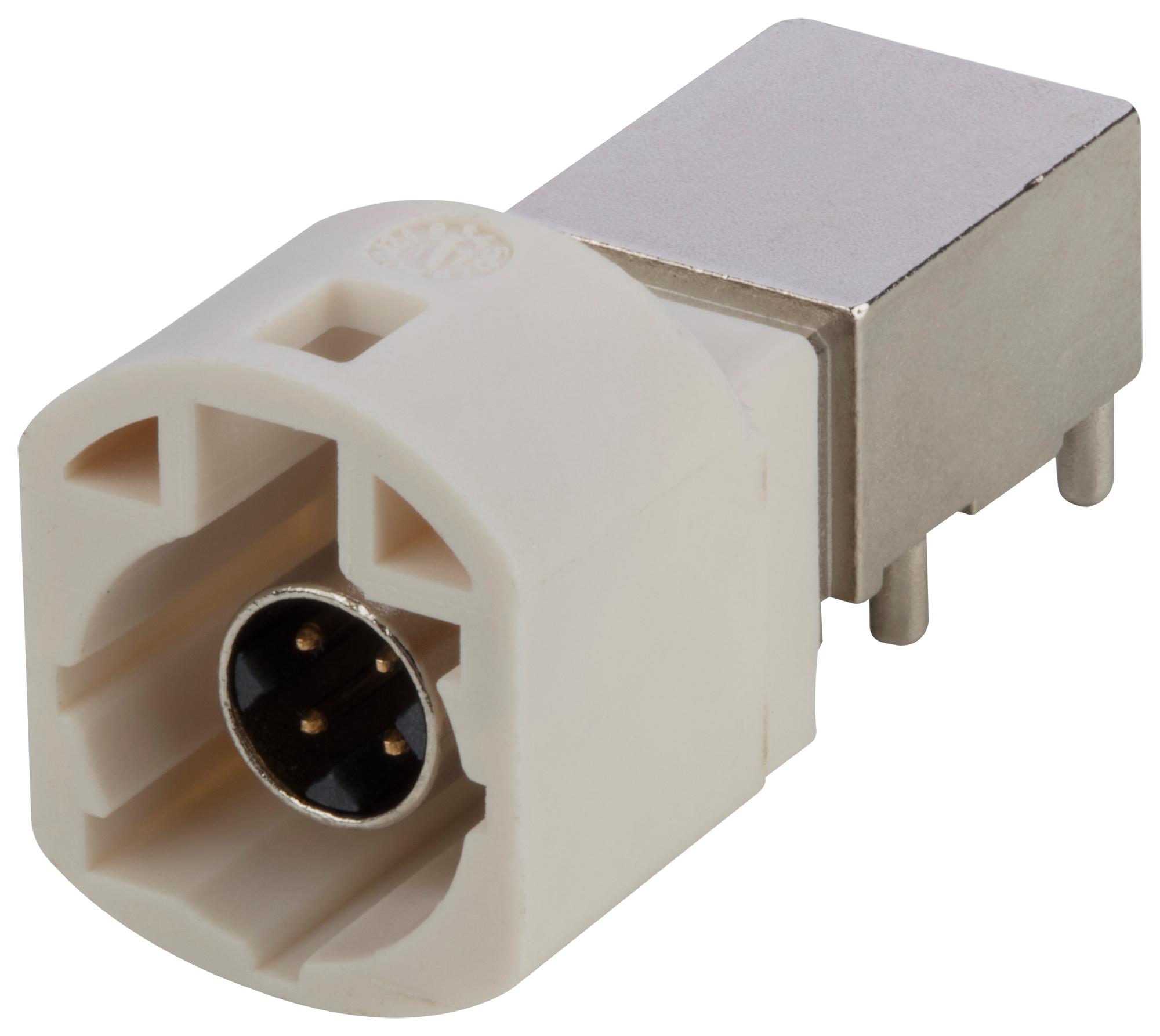

AMPHENOL COMMUNICATIONS SOLUTIONS HSDNBRPPCB18B Automotive Connector System
The HSD Connector System by Amphenol is a fully shielded automotive interconnect designed for low-voltage differential signals like LVDS, USB, and IEEE 1394. It features high retention force, resistance to reflow soldering, and a simple patent-protected assembly design. The connector supports automated assembly, prevents pin bending, and ensures high reliability in critical automotive applications such as camera systems, ADAS, and in-vehicle infotainment. Made with high-temp polymer housings and a zinc alloy cover, it meets USCAR-2, RoHS, and REACH standards, with excellent environmental resistance and durability for automotive environments.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNBRPPCB18B Automotive Connector System Specifications:
- Housing Material: High Temperature Polymer, UL94V-0
- Contact Material: Copper Alloy
- Die Casting: Zinc Alloy
- Cover Material: Zinc Alloy
- Baffle Material: Stainless Steel
- Insertion Force: 35N max
- Extraction Force: 5N min
- Durability: 25 Cycles
- Contact Resistance: 20 mΩ max per pin
- Isolation Resistance: >100 MΩ at 500 VDC
- Dielectric Withstanding Voltage: AC 250Vrms
- Temperature Range: -40°C to +105°C
- Environmental Resistance: 40 Cycles of Temperature/Humidity cycling
- Packaging Options: Tray or Tape and Reel
- Certifications: USCAR-2, RoHS, REACH, ISO/TS Compatible
Buy the Buy Amphenol HSD Connector System Part Number HSDNBRPPCB18B Online
Purchase the Amphenol HSD Connector System online for your automotive applications. This shielded connector offers high retention force, robust environmental resistance, and compatibility with automated assembly processes. Suitable for advanced driver assistance, in-vehicle infotainment, and camera systems, it ensures excellent electrical performance, durability, and compliance with industry standards. Whether for low-voltage differential signals or high-reliability automotive environments, this connector is ideal. Order today to enhance your vehicle's electronic system reliability and performance with fast shipping and expert support.
Buy Amphenol HSDNBRPPCB18B high-performance automotive connector now and ensure reliable signal integrity in your vehicle systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HSDNBRPPCB18B?
You can click on the BUY or RFQ button to purchase HSDNBRPPCB18B from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HSDNBRPPCB18B?
You can download the HSDNBRPPCB18B datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HSDNBRPPCB18B?
AMPHENOL COMMUNICATIONS SOLUTIONS
