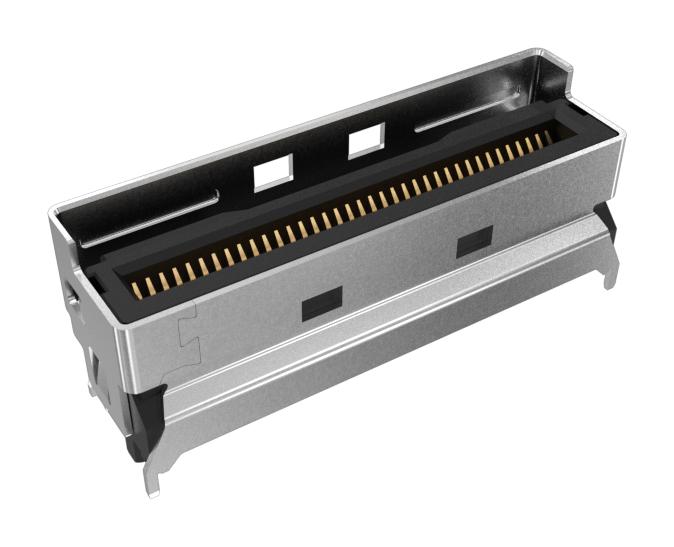

AMPHENOL COMMUNICATIONS SOLUTIONS G97V22312HR Mini Edge Connector
The G97V22312HR is a 0.60mm pitch mini Edge IO connector suited for high-speed data transfer up to PCIe® Gen 5, offering a slim form factor ideal for compact, modular system designs. Its versatile design supports both cable and card edge applications, with a vertical configuration option. Constructed from high-temperature thermoplastic housing, the connector features gold-plated copper alloy contacts for superior signal integrity and durability. Certified by UL, it withstands demanding environmental conditions, with electrical and mechanical durability exceeding 250 mating cycles and dielectric withstand voltage of 300V DC.
AMPHENOL COMMUNICATIONS SOLUTIONS G97V22312HR Mini Edge Connector Specifications:
- Pitch: 0.60mm
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Housing & Spacer: High temperature thermoplastic (UL 94V-0)
- Dielectric Withstanding Voltage: 300V DC
- Electrical Resistance: 30mΩ max.
- Durability: 250 mating cycles
- Mating Force: 0.6N/pin max.
- Unmating Force: 0.06N/pin min.
- Temperature Resistance: -55°C to +85°C
- Certifications: UL Listed
- Pin Configurations: 38, 74, 124, 148, 50 pins (with sideband options)
- Packaging: Tape & Reel
- Connector Colors: Not specified
Buy the Buy Amphenol Mini Cool Edge 10 Part Number G97V22312HR Online
Purchase the Amphenol Mini Cool Edge 10 Connector online and enjoy seamless high-speed data transmission up to PCIe® Gen 5. Designed with a slim profile and robust gold-plated contacts, this connector supports both cable and card edge connections, making it ideal for compact server, data center, and high-end computing system designs. Its durable thermoplastic housing ensures environmental resilience, while UL certification guarantees safety and quality. Order now to streamline your system integrations and reduce engineering costs with our high-performance, scalable solution.
Order your Amphenol SeriesG97V22312HR Mini Cool Edge 10 Connector today and enhance your high-speed data system with reliable PCIe® Gen 5 support.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS G97V22312HR?
You can click on the BUY or RFQ button to purchase G97V22312HR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part G97V22312HR?
You can download the G97V22312HR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of G97V22312HR?
AMPHENOL COMMUNICATIONS SOLUTIONS
