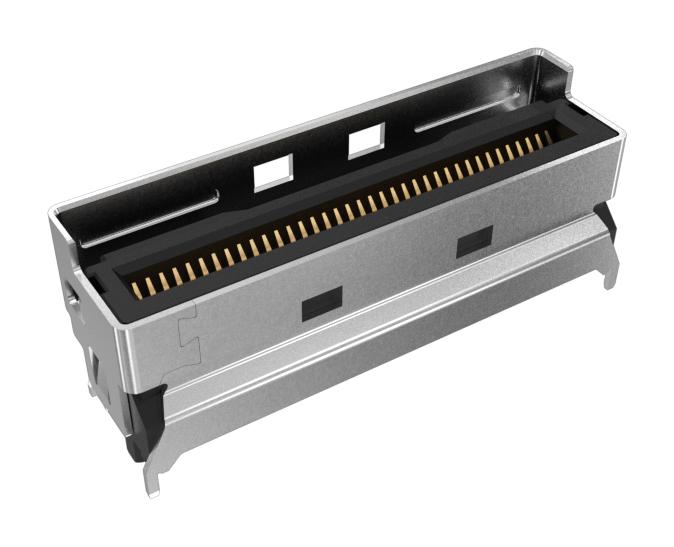

AMPHENOL COMMUNICATIONS SOLUTIONS G97V22322HR Mini Cool Edge Connector
The G97V22322HR is a 0.60mm pitch mini cool edge IO connector designed for high-speed data transmission in compact systems. Capable of supporting up to PCIe® Gen 5 at 56Gb/s PAM4, it extends signal range beyond traditional PCB routing while maintaining excellent signal integrity. The slim, modular design offers both vertical and right-angle configurations, supporting cable and card edge connections. Constructed with copper alloy contacts, gold plating, and high-temperature thermoplastic housing, it is suitable for demanding environments in data centers, networking, and high-end computing applications. It ensures reliable performance with durability tested over 250 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS G97V22322HR Mini Cool Edge Connector Specifications:
- Pitch: 0.60mm
- Support: PCIe Gen 5, up to 56Gb/s PAM4
- Applications: Cable and card edge connections
- Configuration: Vertical and right-angle options
- Material: Copper alloy contacts, gold over nickel finish, thermoplastic housing (UL 94V-0)
- Durability: 250 mating cycles
- Electrical Resistance: 30mΩ max.
- Dielectric Withstanding Voltage: 300V DC
- Temperature Range: -55°C to 105°C
- Housing & Spacer: High temp thermoplastic
- Certification: UL listed, RoHS compliant
- Size options: 38, 74, 124, 50, 148 pins
- Packaging: Tape and Reel
Buy the Amphenol Series Mini Cool Edge 10 Connector G97V22322HR
Enhance your high-speed system design with the Mini Cool Edge Connector built for PCIe Gen 5 and advanced signal integrity. This 0.60mm pitch, high-performance connector supports cable and card edge connections, fitting seamlessly into compact data center and networking systems. Constructed with durable copper alloy contacts and gold plating, it offers reliable, long-lasting connectivity through 250 mating cycles. The thermoplastic housing ensures high temperature tolerance, compliance with UL and RoHS standards, and versatility in modular, scalable deployments. Purchase online today to streamline your high-speed interconnect solutions efficiently and confidently.
Get Amphenol Mini Cool Edge 10 Connector G97V22322HR today—built for high-speed data transmission in compact, scalable systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS G97V22322HR?
You can click on the BUY or RFQ button to purchase G97V22322HR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part G97V22322HR?
You can download the G97V22322HR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of G97V22322HR?
AMPHENOL COMMUNICATIONS SOLUTIONS
