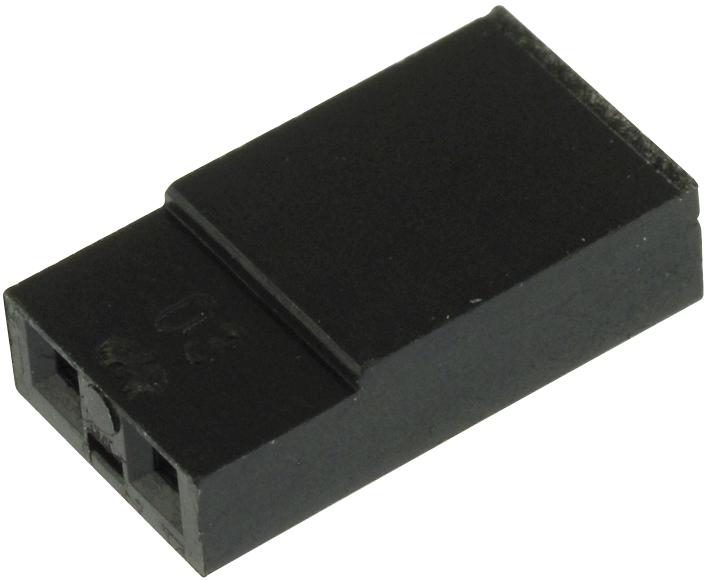

AMPHENOL COMMUNICATIONS SOLUTIONS 71363202LF Wire-to-Board Connector
The product is a high-quality, low profile wire-to-board connector designed for reliable electrical connections in various electronic applications. Made with durable thermoplastic housings, featuring dual-beam contacts for low insertion force and high signal protection. Suitable for surface-mount and through-hole mounting, it withstands temperatures from -65°C to +125°C and offers up to 200 mating cycles. Certified ROHS compliant, these connectors provide excellent insulation resistance, contact durability, and environmental resistance, making them ideal for versatile and long-lasting electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS 71363202LF Wire-to-Board Connector Specifications:
- Housing Material: Thermoplastic polyester, UL94V-0 rated
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over 1.27 micron nickel
- Current Rating: 3A DC max. per contact
- Insulation Resistance: 1x 10^6 MΩ minimum
- Contact Resistance: 15 MΩ initial, 20 MΩ after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: Max 1.50 N (gold), Max 1.60 N (tin)
- Withdrawal Force: Min 0.30 N
- Insertion Depth: 3.6mm to 6.7mm (top entry), 6mm minimum (bottom entry)
- Flammability Rating: UL94V-0
- Environmental Resistance: RoHS compliant, suitable for wave soldering and reflow processes
Buy the FCI Series DUBOX Wire-to-Board: 71363202LF
Purchase the FCI wire-to-board connector 71363202LF today and ensure reliable, high-performance electrical connections in your electronic designs. Crafted with durable materials and designed to withstand extreme temperatures from -65°C to +125°C, it offers low insertion force, multiple mating cycles, and RoHS compliance. Whether for surface-mount or through-hole applications, this connector guarantees excellent insulation resistance, robust contact durability, and environmental resilience. Ideal for demanding electronic applications requiring secure, long-lasting connections with easy assembly and repairability.
Get FCI 71363202LF today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 71363202LF?
You can click on the BUY or RFQ button to purchase 71363202LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 71363202LF?
You can download the 71363202LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 71363202LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
