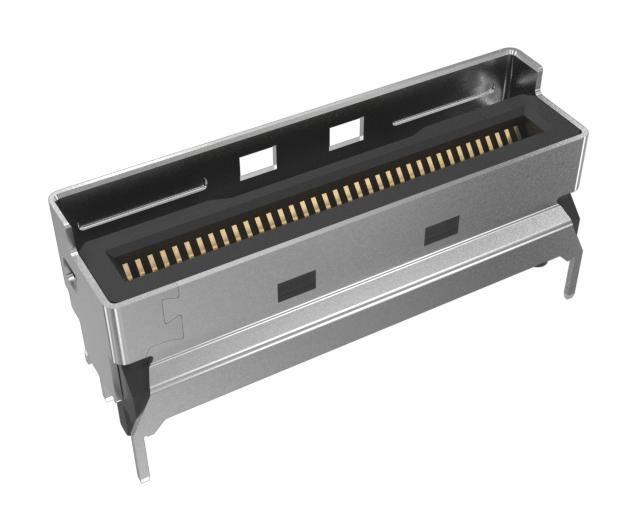

AMPHENOL COMMUNICATIONS SOLUTIONS G97V22332HR Mini Cool Edge Connector
The G97V22332HR is a 0.60mm pitch Mini Cool Edge I/O connector featuring a slim form factor design. Supporting high-speed signals up to PCIe® Gen 5 and 56Gb/s PAM4, it enables longer signal paths with excellent signal integrity compared to conventional PCB routing. Suitable for cable and card edge applications, it offers a vertical configuration, high-temperature thermoplastic housing, copper alloy contacts with gold plating, and robust electrical performance. Designed for high-speed data center systems, networking, and computing, it provides modular and scalable system integration for advanced electronic applications.
AMPHENOL COMMUNICATIONS SOLUTIONS G97V22332HR Mini Cool Edge Connector Specifications:
- Pitch: 0.60mm
- Configuration: Vertical and right-angle options
- Signal Speed: Up to 56Gb/s PAM4, PCIe® Gen 4/5
- Transmission Distance: Over 1.0 meter
- Contacts Material: Copper alloy
- Contact Finish: Gold over nickel
- Housing Material: High-temperature thermoplastic (UL 94V-0)
- Durability: 250 mating cycles
- Dielectric Voltage: 300V DC
- Contact Resistance: 30mΩ max
- Unmating Force: 0.06N/pin min
- Mating Force: 0.6N/pin max
- Temperature Resistance: -55°C to +105°C
- Certifications: UL listed, RoHS compliant
- Packaging: Tape & Reel
Buy the Buy Amphenol Mini Cool Edge 10 Connector Part Number G97V22332HR Online
Purchase the Amphenol Mini Cool Edge Connector G97V22332HR online to enhance high-speed data systems with superior signal integrity. Its slim 0.60mm pitch, PCIe® Gen 5 support, and robust build make it ideal for data centers, networking, and high-performance computing. Featuring gold-plated contacts, high-temperature thermoplastic housing, and a durable design supporting 250 mating cycles, this connector ensures reliable, scalable, and cost-effective system integration for demanding applications. Order now to streamline your system architecture with a proven, high-speed interconnect solution.
Get Amphenol G97V22332HR today—designed for high-speed data transfer and long-lasting durability.
