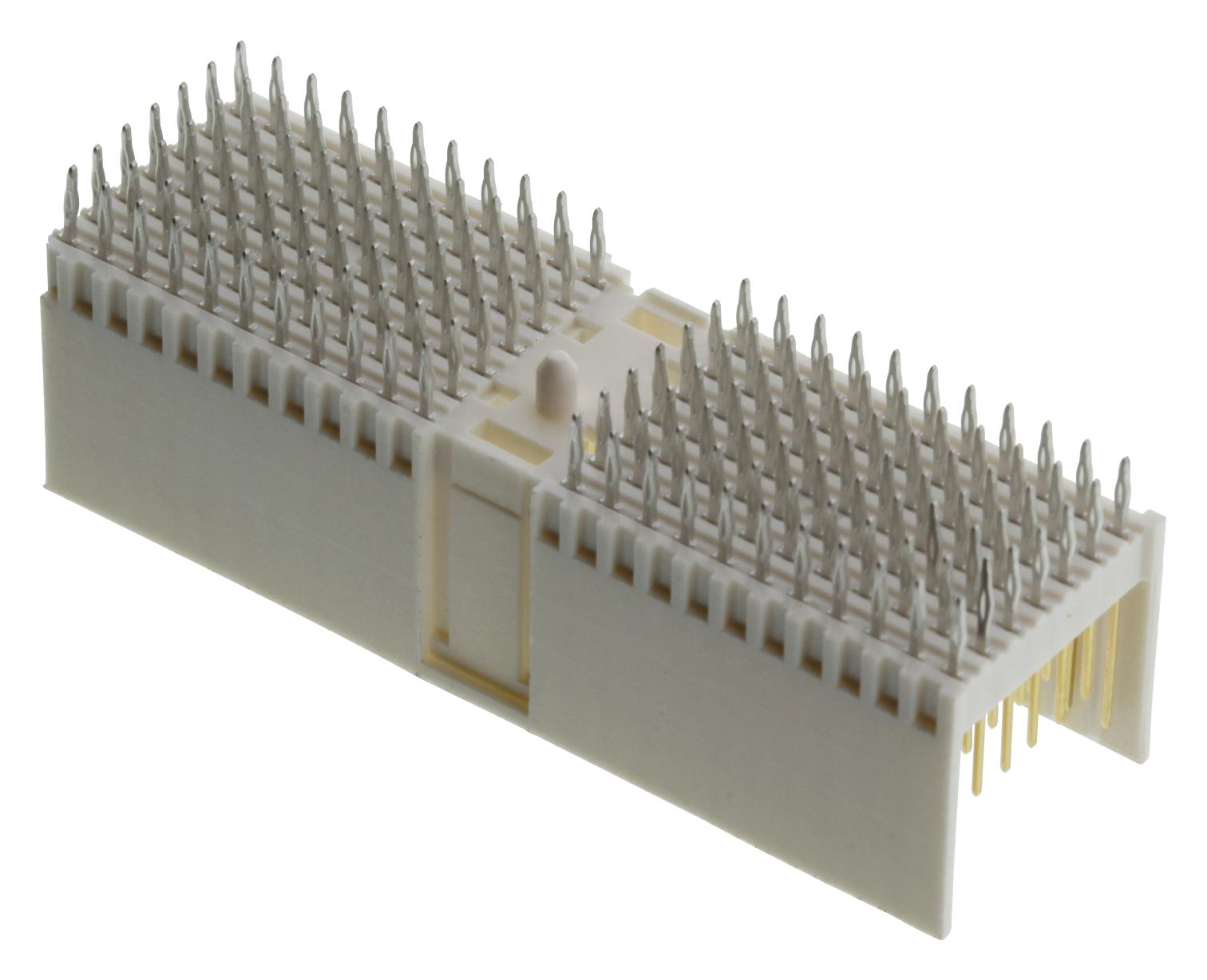

AMPHENOL COMMUNICATIONS SOLUTIONS HM2P07PD5111N9LF High-Speed Backplane Connector
The Millipacs 2mm Hard Metric Series vertical header connectors are modular, high-performance backplane connectors designed for data, industrial, and medical applications. These connectors feature a 2mm pitch, various pin configurations, and compliance with IEC standards. Made from thermoplastic with gold and palladium nickel plating, they support current ratings up to 1.5A at 20°C and withstand temperatures from -55°C to +125°C. Suitable for high-speed data transfer up to 10Gbps, they offer easy mating, secure locking, and versatile design options for demanding electrical environments.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2P07PD5111N9LF High-Speed Backplane Connector Specifications:
- Pitch: 2mm
- Core current: 1.5A at 20°C, 1.0A at 70°C
- Test voltage: 750 Vrms
- Contact resistance: 20 mΩ max
- Insulation resistance: 10^9 MΩ min
- Operating temperature: -55°C to +125°C
- Material: Thermoplastic UL94V0 (standard), High-Temperature polymer (pin-in-paste)
- Contact material: Copper Alloy
- Contact plating: Gold / Palladium nickel on mating, Tin over Nickel on press-fit
- Mechanical durability: 50 to 250 mating cycles depending on variant
- Environmental resistance: Suitable for harsh industrial environments
- Standards: IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE, UL and CSA recognized
- Dimensions: Various configurations up to 50mm length with multiple contacts and polarization options
- Packaging: Tray, Tape and reel
- Certifications: UL, CSA
Buy the Fci HM2P07P – Reliable Backplane Connectors for Industrial Applications
Purchase the Fci HM2P07P backplane connector online today and experience reliable, high-speed data connectivity tailored for industrial and medical systems. Designed with a 2mm pitch and multiple contact configurations, it ensures secure connections and easy mating for critical applications. Perfect for high-density backplane setups, these connectors support up to 10Gbps data rates, with robust electrical and mechanical performance for demanding environments. Order now to enhance your system’s performance with durable, standards-compliant interconnects that guarantee long-lasting reliability and easy installation.
Get Fci HM2P07P today—built for high-speed data transmission and durable connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2P07PD5111N9LF?
You can click on the BUY or RFQ button to purchase HM2P07PD5111N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2P07PD5111N9LF?
You can download the HM2P07PD5111N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2P07PD5111N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
